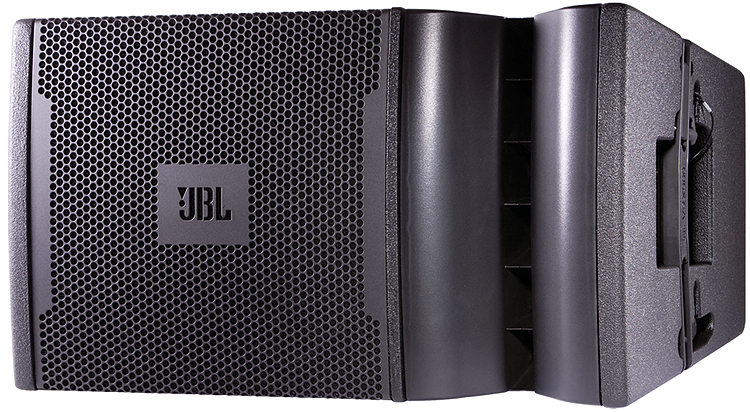

JBL VRX932LA-1

Description

The JBL VRX-932LA-1 is a lightweight, compact, passive and bi-ampable two-way line array speaker system, with an 800-watt continuous passive program power handling capacity, designed for use in arrays of up to six units.

The VRX-932LA-1 is equipped with a 12" dual voice coil woofer and a trio of 1" Neodymium compression drivers, and offers a worthy solution when line array performance is desired in a smaller venue, but the very long-throw characteristics of a larger line array is not needed.

The VRX-932LA-1 uses amplitude shading technology to shape the coverage of the array. Switches on the input plate allow the upper box in an array to reach a distant balcony, while the lower HF section is attenuated to reduce excessive level at the front of the listening area.

One or two VRX-932LA-1 units may also be used on a tripod or over subwoofers, and up to six may be suspended in a single array for a nominal vertical coverage of up to 90°.

• PDF Manual
• 2-way passive or bi-ampable 800-watt line array P.A. speaker system for smaller venues with up to 6-unit array capacity
• 12" Neodymium magnet Differential Drive(TM) woofer for high-power capacity and light-weight
• Three 1.5" Neodymium Annular Ring Diaphragm technology drivers for high power capacity, high-frequency extension and directivity
• Constant Curvature waveguide technology for reliable array coherence
• Array Configuration Selector switch - permits array in passive mode, allows for precise directivity and level attenuation
• Dual angle pole socket for aiming flexibility when pole mounting, Integral rigging hardware for simplified connection of enclosures and optional array frame
• Tripod or subwoofer mounting of up to 2 speakers for multi-range floor placement
• Frequency Response: 75Hz - 20KHz, &plusmn3dB
• Power Capacity

  Passive LF and HF:
  3200W peak
  Bi-amp LF:
  3200W peak
  Bi-amp HF:
  300W peak

•   Maximum Sound Pressure Level (SPL)

130dB, system, passive
LF: 130dB
HF:139dB

• Nominal Sensitivity

95dB SPL, 1W/1m, system, passive
LF: 95dB
HF: 114dB

• Impedance

8 Ohms, passive and bi-amped, LF and HF

• Crossover

1.2KHz, passive and bi-amp modes, externally switchable

Low Frequency Driver

1 x 12" Differential Drive(TM) woofer with neodymium-magnet, dual voice-coils and magnetic gap

High Frequency Driver

3 x Neodymium compression drivers with 1.5" voice coils

Enclosure Material

18mm 11-ply birch plywood with Black DuraFlex(TM) finish
Powder coated, black, 16-gauge perforated steel with acoustically transparent foam

Input Connections

2 x Speakon(TM) NL-4

Dimensions

23.5 x 13.75 x 15" (597 x 349 x 381mm)

Weight

46 lbs (21kg)
