JBL STX815M

Description

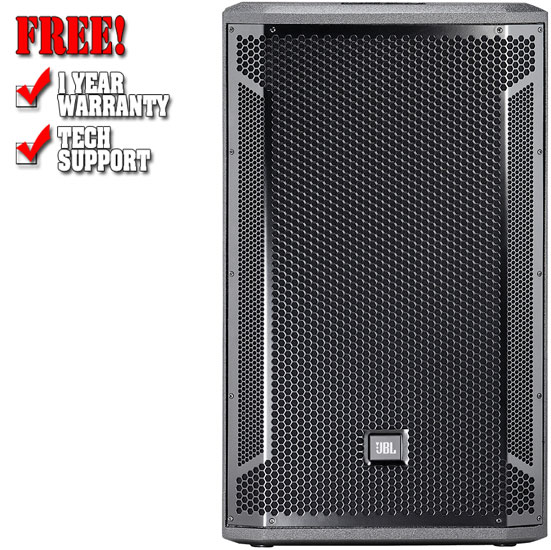

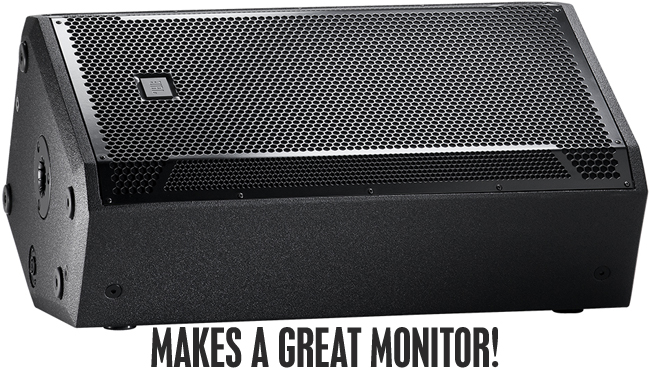

A single 15" lightweight two-way system designed to function as a high-power handling, FOH loudspeaker system or as an extended range floor monitor, it offers an extremely high level of performance either ground, pole or stand mounted. A 70 degree by 70 degree coverage angle for focused directivity control.

• Compact and low-profile for minimal obstruction of audience sight-lines.
• 70°x 70° nominal coverage.
• Bi-amplified or full-range passive operation.
• Pole socket for applications requiring pole or tripod mounting.
• Twelve M10 suspension points.
• High power handling, low distortion Vented Gap Cooling™ LF driver.
• 3 in. (diaphragm) neodymium magnet compression driver.
• Rugged DuraFlex™ coated enclosures sized to be truck pack friendly.
• 14-Gauge steel grille lined with acoustically transparent cloth.
• Frequency Range ( –10 dB) : 41 Hz-20 kHz
• Frequency Response (± 3 dB) : 55 Hz-20 kHz
• Coverage Pattern : 70˚ × 70˚ nominal
• Sensitivity (1W/1m) : 96 dB
• Power Rating: (Cont. Pink Noise/Program/Peak) : 800 W / 1600 W / 3200 W
• Rated Maximum SPL : 131 dB SPL Peak
• Nominal Impedance : 8Ω
• Input Connectors : Two NL4
• Operational Modes : Full Range/Bi-Amp
• Dimensions (H x W x D) : 28.4" x 17.2" x 13.0"
• Net Weight : 58 lbs
• PDF Spec Sheet

The STX800 Series was designed to bridge the space between light-duty portable PA speakers and flown full-size line array tour sound systems. Our goals at the inception of this project were simple: Offer a high performance, high density system solution in a truck-pack friendly format. Develop concert-worthy floor monitors and side fills that could affordably complement any touring sound system. Deliver an affordable, great sounding subwoofer that could reproduce true low frequency at elevated sound pressure levels. With four full-range systems and two subwoofers, the STX Series can cover just about any professional application. Whether you’re in need of ancillary speakers for a full-blown tour sound system, ground-stacking for a live concert performance, installing speakers in dance clubs or performance venues, touring clubs with your band, or you are a performing mobile DJ, STX800 Series is the smart choice.
