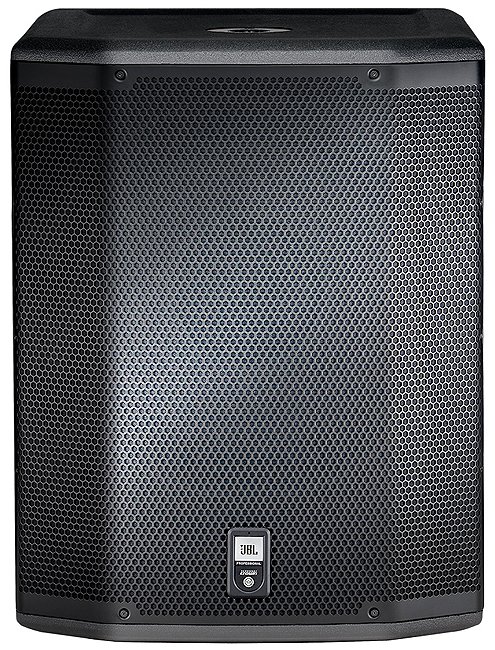

JBL PRX618S

Description

• System Type : Self-Powered 18", bass - reflex
• Maximum SPL Output : 129 dB peak
• Frequency Range (-10 dB) : 41 Hz – 130 Hz
• Frequency Response (±3 dB) : 50 Hz – 100 Hz
• Polarity : Normal or reverse polarity
• Crossover Frequency : 120 Hz
• Amp Design : Crown® Class D
• Power Rating : 1400 W
• Dimension (H x W x D) : 685.8 mm x 530.9 mm x 614.7 mm ( 27.0 in x 20.9 in x 24.2 in )
• Net Weight : 32 kg ( 70.5 lb )
• Maximum SPL 129 db peak
• 460 mm (18 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
• 1400 Watt Class-D, Crown® digital amplifier
• Professional XLR line and ¼" Mic/Instrument inputs
• Stereo input and Loop-Thru capability
• Top panel 36mm pole mount socket for sub/satellite configuration
• 16 Gauge, dent resistant grille
• Obsidian DuraFlex™ coated plywood construction
• Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for maximum comfort
• Compact and powerful, the PRX618S offers the performance of an 18" subwoofer in a package not much larger than a typical 15" sub. With a pole receptacle (that accepts a SS3-BK or SS3-BK24) on the top panel and integrated stereo pass-thru, with selectable HP filter, this is the perfect compliment to the PRX600 full-range systems. Configured with a PRX612M or PRX615M the result is a highly transportable, high performance subs/satellite system. The addition of a polarity reverse options further enables integration with any top cabinet.

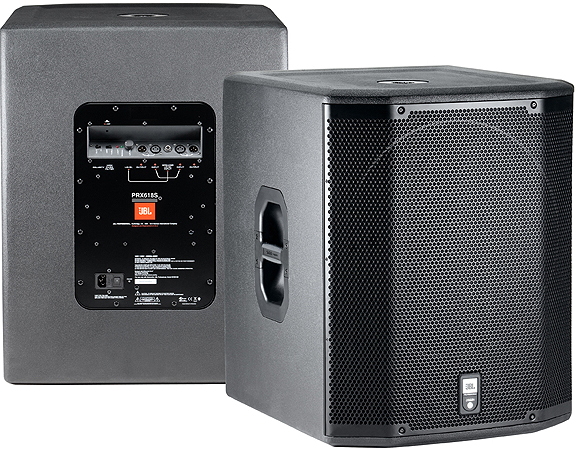

• The PRX618S is a high performance self powered compact subwoofer system. The PRX618S is comprised of a 268G 460 mm (18") Differential Drive® dual voice-coil and magnetic gap, neodymium woofer driven by a Crown Class-D power amplifier. The amplifier input panel offers stereo or mono line level inputs via balanced XLR connectors as well as a single channel speaker level input via a ¼ inch TS phone jack. Signal processing, crossover functionality and limiting for the system is integrated into the input section functionality. Overall subwoofer input sensitivity is controlled by a single easy grip knob and a simple switch enables polarity reversal for sub/satellite system optimization. Signal present and limit lights indicate performance status.
• All PRX600 cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and 18mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX600 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability.
