JBL SRX828SP

Description

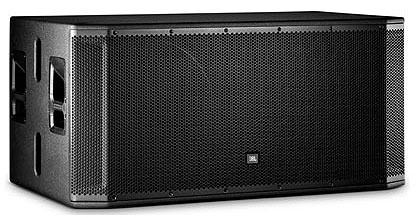

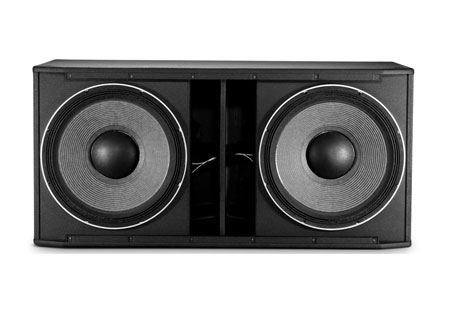

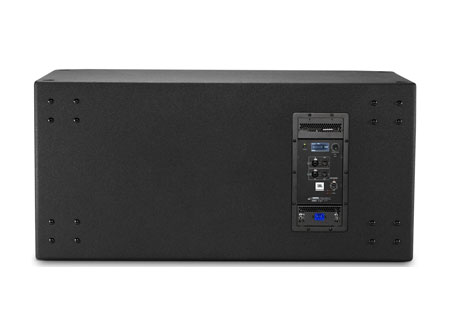

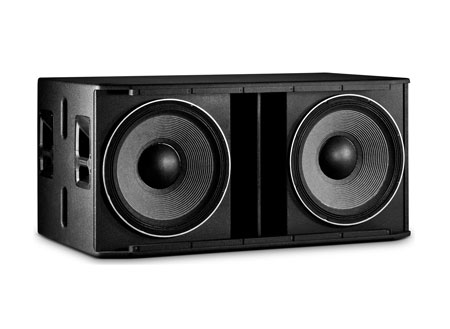

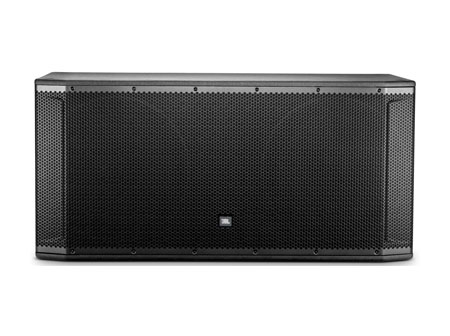

JBL SRX828SP Dual 18-inch Powered Subwoofer 2000-Watt

Features:

• Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
• JBL Premium Transducers
• Drivecore Amplification By Crown
• Full User Configurable DSP
• Network Control
• JBL Engineered Application Presets
• LCD Screen and Glow in the Dark Ink on Back Panel
• M10 Suspension Points

UNPRECEDENTED CONTROL

A full suite of User Controllable DSP driven by the SRX800 Series powerful onboard 400mHz Sharc DSP includes 20 PEQ's, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 User Presets. In addition, the system can incorporate V5 JBL Tunings providing compatibility with our flagship Vertec and VTX touring systems. An integrated LCD screen supports fast setup and configuration.

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

DRIVECORE BY CROWN

Each model is powered by Crown proprietary front-end DriveCore technology featuring a massive 2000W Power Rating, the highest power rating in this class of loudspeakers. With an outstandingly low 103dB signal- to-noise ratio, the SRX800 Series is capable of massive sound pressure levels with exceptional headroom, very low distortion and absolute clarity throughout its frequency range.

HIQNET NETWORK CONTROL

With full HiQnet Network Integration, configuring an SRX800 system is dramatically simplified, saving time while fully automating the control interface configuration. Simple wired control is provided via Ethercon connector and third party wireless router capability is included. Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.

Applications:

• Live performance systems
• Mobile and fixed DJ systems
• Sound system rental and tour
• Permanent installations

Specifications:

• System Type: Self powered dual 18", subwoofer system
• Max SPL Output: 141 dB
• Frequency Range (-10 dB): 29 Hz - 150 Hz
• Frequency Response (-3 dB): 35 Hz - 120 Hz
• Amplifier Design: Class D
• Power Rating: 2000 W Peak
• Dimensions (H x W x D): 574 x 1205 x 681 (mm)/22.57 x 47.42 x 26.79 (in)
• Net Weight: 65.9 kg (145 lbs.)
