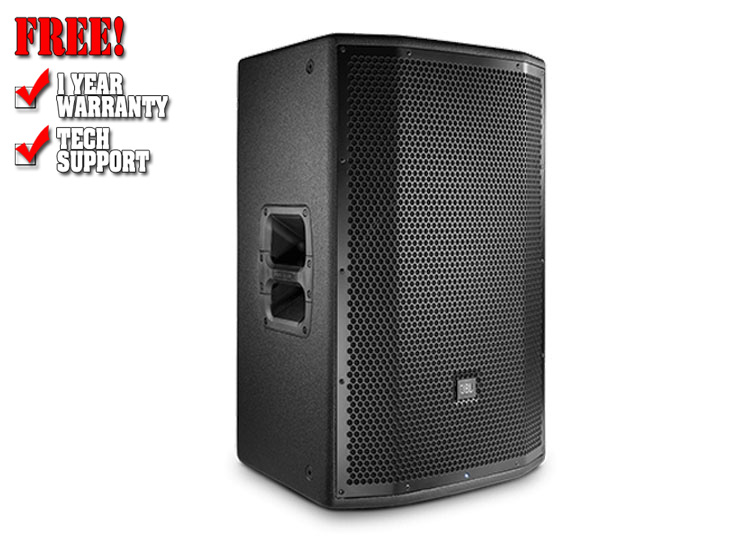

• The PRX815W is comprised of 15" 275G Differential Drive® woofer, a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
• All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL's tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

SPECIFICATIONS

• System Type Self Powered 15", two-way, bass-reflex
• Maximum SPL Normal: 137 dB
• Boost: 137 dB
• Frequency Range (-10 dB) Main: 50-20k
• Monitor: 46-20k
• Frequency Response (±3 dB) Main: 56-20k
• Monitor: 56-19k
• Input Connectors 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
• EQ User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
• Dynamic Control (Input) dbx Type IV™ limiter circuit
• Crossover Frequency 2.0 kHz
• Design Highly efficient Class-D amplifier
• Power Rating 1500W (750W x 2)
• AC Power Input 100V - 240V ~ 50/60 Hz
• LF Driver 1 x JBL 275G (15 in) woofer
• HF Driver 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Coverage Pattern 90° x 50° nominal
• Directivity Index (DI) 10.2 dB
• Directivity Factor (Q) 10.4
• Enclosure Asymmetrical, 18 mm, plywood
• Suspension / Mounting Dual 36 mm pole socket, 12 x M10 Suspension Points
• Transport 1 x injection molded handle with backing cup
• Finish Obsidian DuraFlex™ finish
• Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D) 701 mm x 446 mm x 359 mm
• (27.6 in x 17.5 in x 14.1 in)
• Net Weight 21.6 kg (47.5 lb)
• Gross Weight 26.3 kg (58.0 lb)
