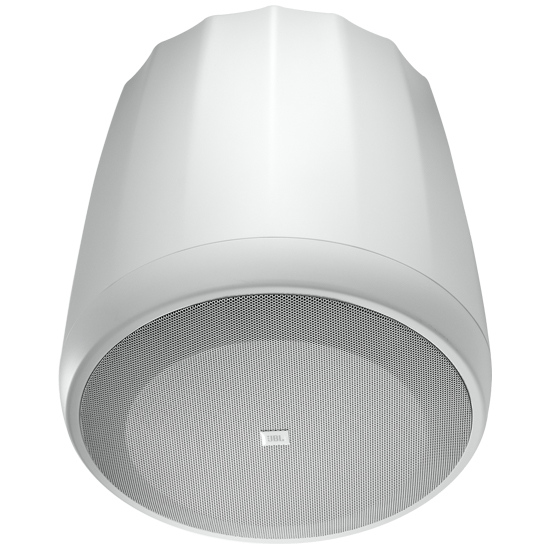

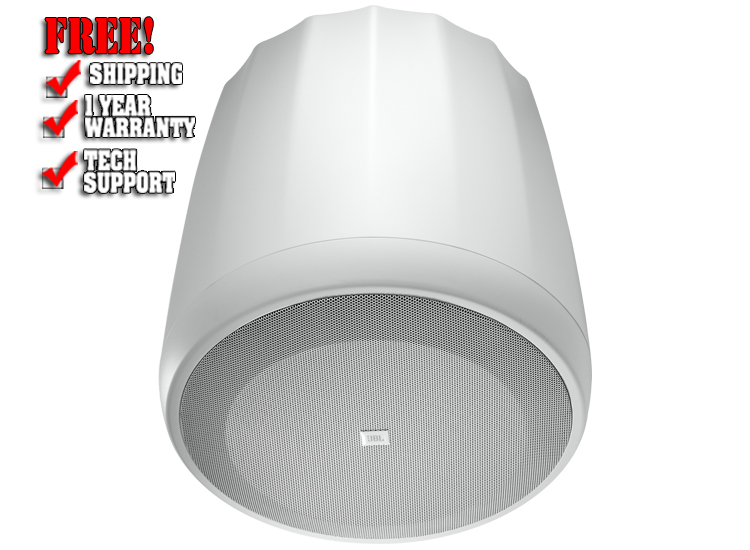

JBL Control 67P/T (B-Stock)-White

Control 67P/T incorporates a large enclosure and high-power 6.5" (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue. NOTE: Priced as each but must be sold as pairs, so two must be ordered.

Specifications:

• Frequency Response (-10 dB) : 58 Hz - 18 kHz
• Frequency Range (±3 dB) : 78 Hz - 16 kHz
• Power Capacity : 75 Watts Continuous Pink Noise Power (with 300 Watts peaks) ; 150 Watts Continuous Program Power
• Nominal Sensitivity : 90 dB
• Nominal Coverage Angle : 120° (+20°/-15°)
• Directivity (Q) : 5.7
• Directivity Index (DI) : 7.5 dB
• Rated Maximum SPL @ 1m : 109 dB continuous pink noise, 115 dB peak
• Rated Impedance : 8 ohms
• Transformer Taps : 70V = 60W, 30W, 15W & 7.5W ; 100V = 60W, 30W, 15W
• Transformer Insertion Loss : 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
• LF Driver : 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
• HF Driver : 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former

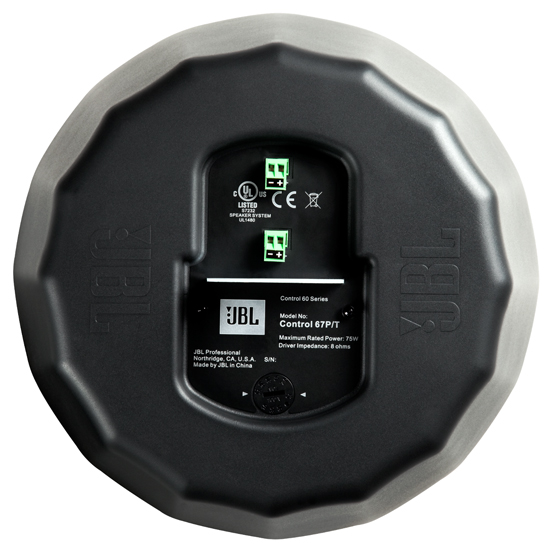

• Termination : Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension : Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency Ratings : Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Included Accessories : Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
• Optional Accessories : MTC-PC60 top panel / terminal cover
• Diameter : 312 mm (12.3 in)
• Depth : 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.
• Net Weight (ea) : 5.2 kg (11.5 lbs)
• Shipping Weight (pair) : 12.3 kg (27 lbs)

What's in the Box?:

• 1 x Control 67P/T Ceiling Speaker White
• 1 x Suspension cable system
• 1 x 2-pin removable locking euro-block connector
• 1 x Rubber cover for euroblock connector
