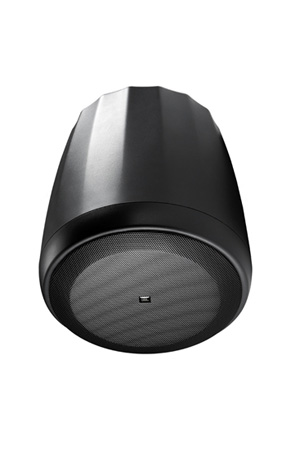

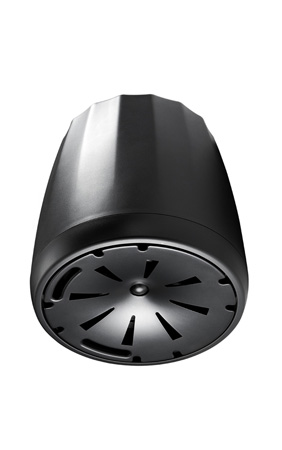

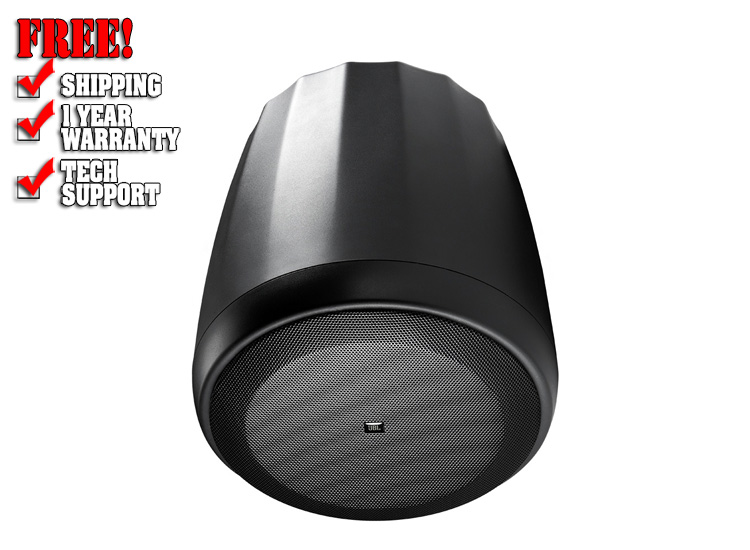

JBL Control 67 P/T

Extended Range Full-Range Pendant Speaker

Control 67P/T incorporates a large enclosure and high-power 6.5" (165 mm) transducer for extended bass and high-fidelity performance. The extra-large RBI Radiation Boundary Integrator™ provides outstanding pattern control, which can allow fewer speakers to cover a venue.

Features

• RBI Radiation Boundary Integrator Technology
• 120° conical coverage
• 6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
• 75 Watts, 8 ohms and 60W multi-tap transformer
• Black or white

Specifications

• Frequency Range (-10dB) 58 Hz - 18 kHz
• Frequency Range (±3 dB) 78 Hz - 16 kHz
• Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
• Nominal Sensitivity 90 dB
• Coverage Angle 120° conical
• Directivity Factor (Q) 5.7
• Directivity Index (DI) 7.5 dB
• Maximum SPL (1m) 109 dB continuous pink noise, 115 dB peak
• Impedance 8 ohms
• Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
• Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
• Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
• HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
• Enclosure High impact polystyrene
• Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
• Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating.

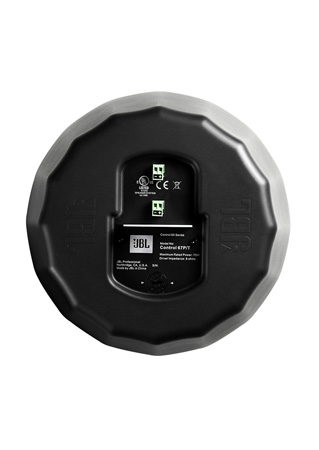

• Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
• Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Dimensions (H x W x D) 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.
• Net Weight (each) 5.2 kg (11.5 lbs)
• Shipping Weight (pair) 12.3 kg (27 lbs)
• Included Accessories Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
• Optional Accessories MTC-PC60 top panel / terminal cover
• Colors Available in black or white (-WH). Paintable.
