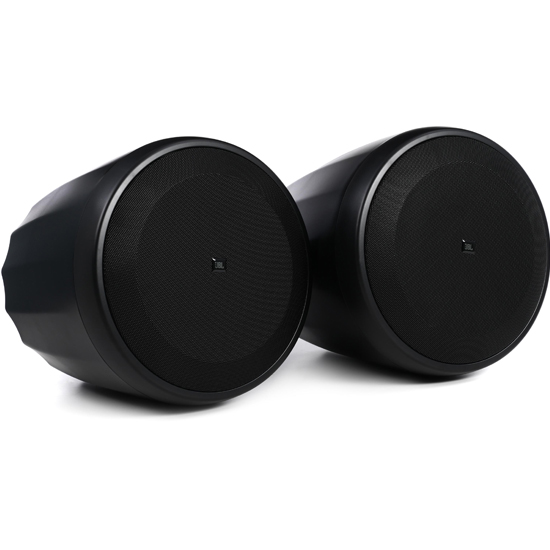

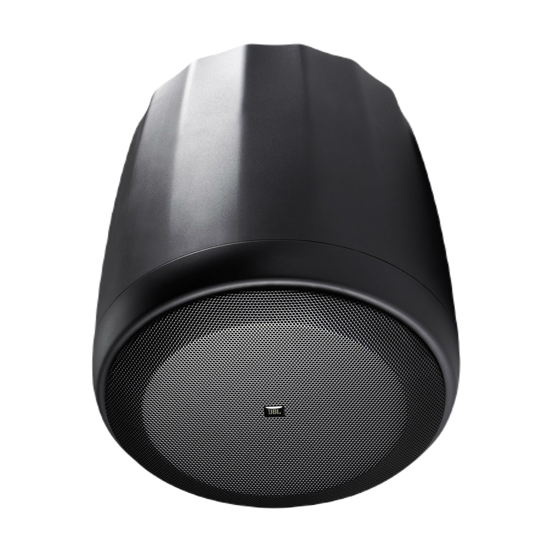

JBL Control 60PS/T Pendant Subwoofer Pair - Black

The JBL Control 60PS/T pendant subwoofer loudspeaker black provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high dutycycle, working conditions.

Specifications:

• Frequency Range (-10 dB) : 42 Hz - 350 Hz
• Frequency Response (± 3 dB) : 55 Hz - 125 Hz
• Power Capacity : 300 Watts Continuous Program Power, 100 hrs ; 150 Watts Continuous Pink Noise, 100 hrs
• Nominal Sensitivity (2.83V/1m) : 88 dB
• Rated Maximum SPL : 107 dB @ 1 m (3.3 ft) average, 113 dB peak
• Rated Impedance : 8 ohms
• Transformer Taps : 110W, 55W, 30W (& 15W@70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
• Transformer Insertion Loss : 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
• Standalone Hookup : Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
• Subwoofer-Satellite Hookup : For either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16) regardless whether tap selector is set to low-Z or 70V/100V. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
• Transducer : 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former
• Environmental : Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splash-proof rating
• Termination : Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
• Suspension : Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long, 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99 lb).
• Safety Agency : Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
• Included Accessories : Two suspension cable systems (see "suspension", above), six removable locking 2-pin euro-block connectors, six rubber cover boots for euroblock connectors.
• Optional Accessories : MTC-PC60 full top panel / terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
• Diameter : 333 mm (13.1 in)
• Depth : 344 mm (13.6 in) height to top of cabinet ; 369 mm (14.5 in) to top of suspension bracket.
• Net Weight : 7.6 kg (16.7 lb)
• Shipping Weight : 17.6 kg (38.7 lbs) per pair-packed carton
• Enclosure Material : High impact polystyrene
• Grille : Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
• Finish : Available in black. Paintable.

What's in the Box?:

• 2 x Control 60PS/T Ceiling Speaker Black
• 2 x Suspension cable system
• 2 x Removable locking 2-pin euro-block connector
• 2 x Rubber cover boot for euroblock connector
