JBL Control 30

250W 10" Indoor/Outdoor Speaker - Black

The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.

Features

• Extended bandwidth, extremely smooth frequency response.
• Fully outdoor-capable design, featuring WeatherMax.
• 120 degree x 110 degree HF coverage.
• 150W transformer for 70V or 100V lines, with 8 thru.
• SonicGuard overload protection
• 10" fiberglass/Kevlar cone LF woofer with neodymium magnet
• 1" titanium diaphragm compression driver.

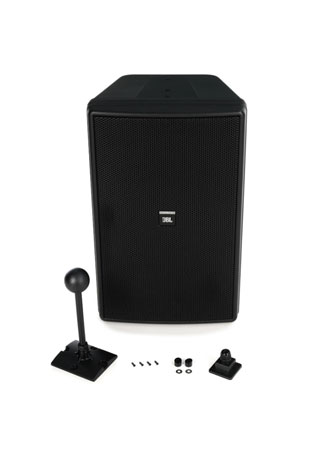

• Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket.
• Sealed input panel cover and screw-down input terminals.

SPECIFICATIONS

• Powered: No
• Power Configuration: 3-way
• Quantity: Single
• LF Driver Size: 1 x 10" Woofer
• HF Driver Size: 1 x 5" Coaxial Mid-range, 1 x 1" Compression Driver
• Power Rating: 250W Continuous (pink noise), 500W Continuous Program
• 70V/100V Output: 150W, 75W, 38W, 19W (70V only)
• Impedance: 4 ohms
• Inputs: 1 x Screw Terminal Strip (up to 12AWG)
• Frequency Range: 38Hz-17kHz (-10dB)
• Maximum Peak SPL: 123dB SPL
• Horizontal Coverage Angle: 120 Degrees
• Vertical Coverage Angle: 110 Degrees
• Enclosure Material: High Impact PolyStyrene, IP-X5 Rating
• Application: Indoor, Outdoor
• Mounting Options: InvisiBall Mounting Base, U-bracket Mounting
• Height: 23.3"
• Width: 14.6"
• Depth: 13.5"
• Weight: 42 lbs.
