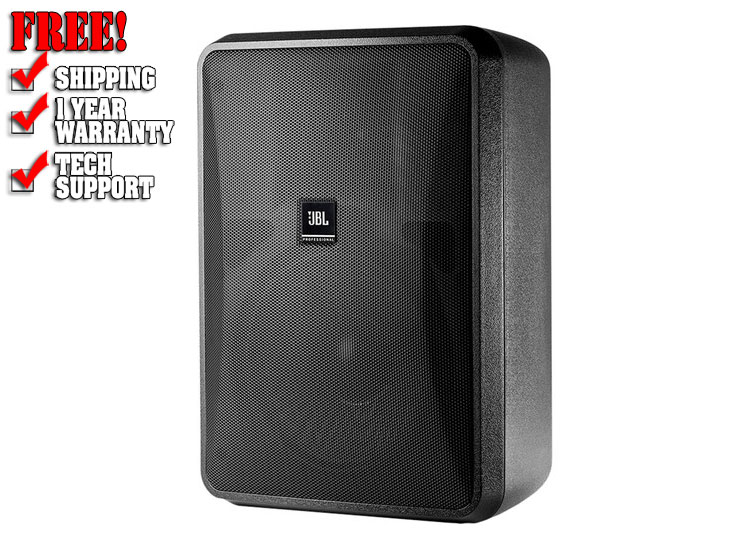

JBL Control 28-1L

High Output Indoor/Outdoor Background/Foreground Speaker (Pair, Black)

The black pair of 2-way, 8" JBL Control 28-1L Loudspeakers are designed for background or foreground applications. Featuring weather-protected circuitry, the Control 28-1L can be used indoors or outdoors and are well suited for retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where high-quality, high-output indoor/outdoor foreground/background music (and/or paging) speakers are required. The speakers feature JBL's proprietary InvisiBall mounting hardware, which allows for installation through a hidden access point behind its logo badge.

The Control 28-1L require 120W (240W program) at 8 Ohms to power the 8" woven fiberglass woofer and 1" PEI diaphragm tweeter, which combine for a frequency response of 62 Hz to 16 kHz and a max SPL of 118 dB peak. Connections to the speaker are screw-down terminal strips with a zinc-plated copper and nickel-plated metal screws and washers. The JBL Control 28-1L includes the InvisiBall wall-mounting system and a hex key.

Features

• 8" woofers with woven fiberglass cone
• 1" PEI diaphragm tweeters with fluid cooling
• Built-in InvisiBall mounting hardware
• Weather-resistant enclosure and transducers
• 100° x 100° coverage
• 120W power handling (240W program)
• Frequency response of 62 Hz to 16 kHz

SPECIFICATIONS

• Active/Passive : Passive
• Speaker Configuration : 2-Way
• Power Handling : For 2 Hours: 240 W Program: 120 W RMS
• Impedance : 8 Ohms (Nominal)
• HF Driver : 1x 1" / 25.4 mm PEI Dome Tweeter
• LF Driver : 1x 8" / 203.2 mm Fiberglass Woofer
• Frequency Range : 45 Hz to 20 kHz -10 dB
• Color :Black

Speaker

• Active/Passive : Passive
• Speaker Configuration : 2-Way
• Power Handling : For 2 Hours: 240 W Program
  120 W RMS
• Impedance : 8 Ohms (Nominal)

Drivers

• HF Driver : 1x 1" / 25.4 mm PEI Dome Tweeter
• LF Driver : 1x 8" / 203.2 mm Fiberglass Woofer

Performance

• Frequency Range : 45 Hz to 20 kHz -10 dB
• Frequency Response : 62 Hz to 16 kHz ±3 dB
• Maximum SPL : 118 dB SPL (Peak)
• Sensitivity : 91 dB
• Coverage Angle : 100° H x 100° V
• Directivity : 7.3 (Directivity/Q Factor)
• Recommended High-Pass Filter :45 Hz, 24 dB/Octave
• Maximum Input Voltage : 55 V Peak

Connectivity

• Inputs/Outputs : 1x Barrier Strip Speaker Input
• Maximum Wire Gauge : 12 AWG / 2.5 mm

Physical

• Certifications : RoHS
• Environmental Resistance : Dust/Water-Resistant (IP44)
• Color : Black
• Mounting : 1x Ball Mount (Rear)
• Dimensions : 15.2 x 11.1 x 8.62" / 386 x 282 x 219 mm
• Weight : 13.5 lb / 6.1 kg

Packaging Info

• Package Weight : 29.2 lb
• Box Dimensions (LxWxH) : 22.5 x 17.5 x 13"

In the Box

• JBL Control 28-1L High Output Indoor/Outdoor Background/Foreground Speaker (Pair, Black)
• InvisiBall Wall-Mounting System
• Hex Key
• Limited 2-Year Warranty on Enclosures
• Limited 5-Year Warranty on Electronics
• Limited 2-Year Manufacturer Warranty (Enclosure)
• 5-Year Manufacturer Warranty (Electronics)
