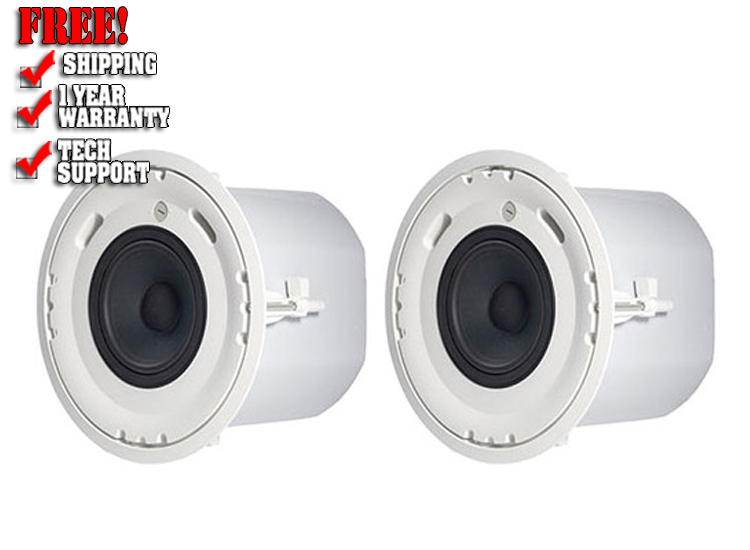

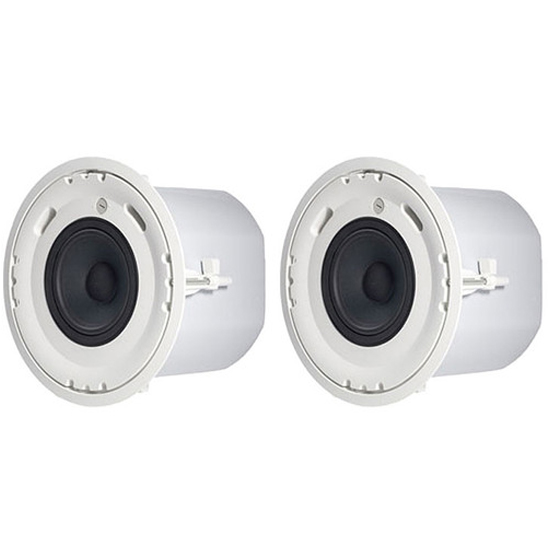

JBL Control 226CT 6.5" 2-Way 150W Coaxial Ceiling Loudspeakers-White (Pair)

JBL Control 226CT is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The low-saturation transformer features a baffle-mounted impedance switch that allows the Control 226CT to be driven by 70V/100V or 8-Ohm power amplifiers (available separately). Each Control 226CT is equipped with a durable 6.5" Kevlar-reinforced woofer and a 1" exit titanium compression driver, yielding a frequency response of 74 Hz to 17 kHz, and a long-term power capacity of 150W.

The high-slope crossover network ensures natural midrange tonality and proper frequency distribution to the speaker components. Removable locking input connectors, press-in grilles, and C-ring / tile rail suspension systems contribute to easy installation.

Features:

• In-ceiling coaxial loudspeakers with integrated backcans
• Includes press-in grilles and C-ring / tile rail suspension systems
• Consistent 120° broadband pattern control
• Multi-tap transformer enables use with 70V/100V constant-voltage systems
• Foreground music solution with discreet, minimized visual impact for boardroom, reception areas, restaurants, airports, and retail applications
• 150W (600W peak) power handling
• Durable 6.5" Kevlar-reinforced woofer
• 1" exit titanium compression driver
• 74 Hz to 17 kHz frequency response (±3 dB), 47 Hz to 19 kHz frequency range (-10 dB)
• 18 dB/octave crossover network with high- and low-pass filtering
• Low-saturation 68W multi-tap transformer with 70V/100V settings and an 8-Ohm bypass mode
• Removable locking 2-pin input connection
• Integrated backcan

Specifications:

• Active or Passive : Passive
• LF Driver : 6.5" / 16.5 cm Kevlar-Reinforced Cone
• HF Driver : 1" / 2.5 cm Exit Titanium Compression Driver
• Frequency Range : 47 Hz to 19 kHz (-10 dB)
• Frequency Response : 74 Hz to 17 kHz (±3 dB)
• Coverage Pattern : 120° Conical, Broadband
• Directivity Factor : 6 (1 to 16 kHz)
• Directivity Index : 7.9 dB (1 to 16 kHz)
• Power Capacity : For 2 Hours: 150 W (600 W Peak), For 100 Hours: 100 W (400 W Peak)
• Sensitivity : Measured Half-Space: 90 dB (2.83 V at 1 m), Computer for Competitive Comparison: 95 dB (2.83 V at 1 m)
• Maximum SPL : Continuous: 112 dB, Peak: 118 dB
• Nominal Impedance : Bypass Mode: 8 Ohms
• Transformer Taps : Watts at 70 V: 8.5, 17, 34, 68, Watts at 100 V: 17, 34, 68
• Crossover : Frequency: 2.2 kHz, Low-Pass Filter to LF Driver: 3rd Order (18 dB/Octave), High-Pass Filter to HF Driver: 3rd Order (18 dB/Octave)
• Input : 2 x Removable Locking 2-Pin Connectors with Screw-Down Terminals
• Maximum Wire Gauge : 12 AWG
• Shielded : No
• Cutout Size : 12.1" / 30.7 cm
• Dimensions : 13.0 x 9.7" / 33.0 x 24.6 cm (from Back of Baffle)
• Weight : 20 lb / 9.1 kg
• Package Weight : 49.5 lb
• Box Dimensions (LxWxH) : 30 x 17 x 14"
