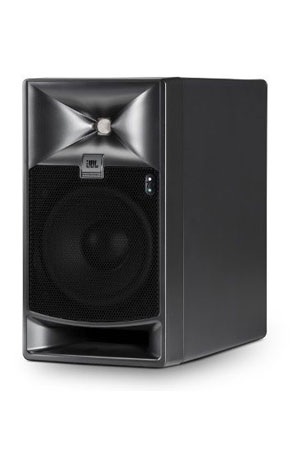

JBL 705P 7 Series Active Studio Monitor, Single Speaker

JBL 705P 7 Series Active Studio Monitor

JBL 7-Series 705P 5-inch Bi-Amplified Master Reference Studio Monitor, with 725G five-inch low frequency transducer, Image Control Waveguide. Class-D Power Amplifiers with 250 Watts for LF and 120 Watts for HF. Digital and Analog Inputs. Integrated Room and User EQ. HARMAN HiQnet enabled.

Features:

• JBL 725G low-frequency transducer delivers low-distortion and high SPL
• JBL 2409H high-frequency transducer with low-mass annular diaphragm
• JBL patent-pending Image Control Waveguide
• 6 factory presets, 6 user-defined presets
• Digital input accepts sample rates of up to 192 kHz
• RJ-45 network connection for Harman HiQnet connectivity

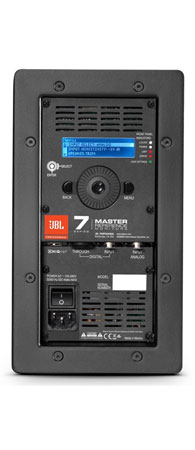

• Rear-panel multi-function controls and LCD display allow selection of input sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
• Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
• Protective steel grilles

Specification:

• Amplifier: 2-channel Class-D amplifier HF 120W / LF 250W
• Processing: 192 kHz, 32-bit floating point processing
• Bands: 12 bands of Room EQ, 8 bands of User EQ
• Delay: 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
• Audio Input: 1 x XLR-1/4" balanced combination analog audio input
• Digital Input: 1 x XLR AES/EBU format digital input with 1 x XLR pass-through output

• Height: 10.5"
• Width: 5.87"
• Depth: 8.12"
• Weight: 9 lbs.

Weight, Dimensions, and Manufacturer Part Numbers

• Single Speaker
• Shipping Weight: 18 lbs
• Shipping Dimensions: 16 x 15 x 10 in
• Manufacturer Part Number (MPN): JBL 705P
