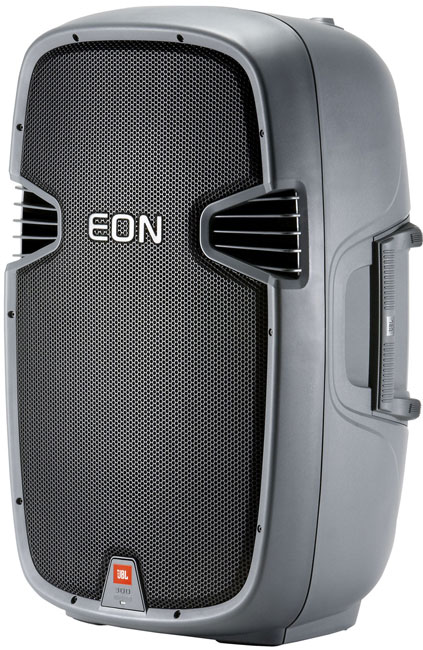

JBL EON315

The EON315 is a 15-inch, two-way, powered, portable speaker system. It is a complete self contained sound reinforcement system, capable of full-bandwidth reproduction at high levels with the added benefit of a microphone pre-amp enabling the direct connection of a dynamic microphone. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. Both components are driven by the discrete channels of a Class-D integrated power amplifier. The input section contains all cross-over functions, protection, and system EQ functionality.

• PDF Manual
• 560 watt Powered Speaker System
• Light Weight. True portability weighing only 15.9 kg (35 lb)
• Multiple handles for easy transport
• 15" JBL low-frequency driver
• 1" throat diameter next generation JBL neodymium compression driver
• Efficient Class-D digital amplifier technology
• 100° H x 60° V asymmetrical wave guide for uniform audience coverage
• Line level and direct microphone input capability
• Selectable Pre-engineered EQ settings
• Loop thru signal flow for extended system application and easy “daisy-chain” connections
• Integrated M10 suspension points for easy rigging
• Multi angle enclosure for main or monitor applications
• Integrated 36 mm pole mount socket with stabilizing securing screw
• Highly designed composite enclosures for durability, lightweight, and acoustic performance
• System Power Rating: 560 W
• Frequency Range (-10 dB): 38 Hz - 20 kHz (EQ in ‘Flat’ position)
• Dimensions (H x W x D): 27 in x 17.3 in x 14.4 in
• Frequency Response (±3 dB): 50 Hz - 18 kHz (EQ in ‘Flat’ position)
• Coverage Pattern: 100° H x 60° V nominal
• Maximum SPL: 127 dB
• Net Weight: 15.9 kg (35 lb)

Applications:

• Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
• Amplification and monitoring for electronic musical instruments.
• Everywhere you need to be heard.
