JBL PRX735

JBL PRX735

• 1500 Watts power rating
• 136 dB peak SPL
• 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
• 165 mm (6.5 in) horn loaded midrange transducer
• 1.5" diameter next generation JBL neodymium compression driver
• JBL designed waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Normal and Boost user selectable EQ presets
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
• Multiple injection molded handles with backing cup for easy transport
• Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
• Cloth backed, dent-resistant 16 gauge steel grilles

Incredibly dynamic audio, powerful output, and great reliability all in a rugged and lightweight design! The JBL PRX735 3-Way Powered PA Speaker takes the highly successful PRX Series to the next level with 1500 watts of power through a 3-way design including a 15-inch woofer and 1.5-inch neodymium compression driver. Another great feature is the Differential Drive technology which incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling.

Powering the JBL PRX735 active loudspeaker is a 1500 Watt high performance, exceptionally low distortion tri-amplification system engineered to deliver clean power with maximum headroom to efficiently deliver smooth high frequencies and rich, deep bass response even at very high sound levels. Compact, ultra-lightweight, the PRX735 uses JBL’s tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.

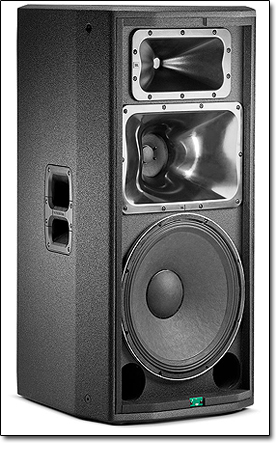

High Performance Drivers
The PRX735 features a 1.5 inch annular polymer diaphragm, neodymium magnet compression driver resulting in crystal clear highs and sonic accuracy. Wide coverage angles are achieved without compromise and harmonic distortion is minimized for maximum driver SPL without harshness.

Low Frequency
Tour tested Differential Drive technology delivers extended frequency response, high power output and low distortion in a dramatically lighter package. With the ferrite magnet positioned inside the dual-coil/dual-gap voice coil, heavy steel pole pieces are eliminated. The heat sink is the chassis itself, further lowering system weight while ensuring consistent, reliable performance.

Amplification
Highly efficient Class-D amplification drives Maximum Sound Pressure Levels are the best indication of the performance of a powered speaker and all PRX735 speaker excels in this critical specification. JBL’s ability to maximize the speaker and amplifier performance guarantees ample power, accurate dynamics and sonic purity.

Road Tough Construction
Built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. JBL’s tour proven DuraFlex finish, grills from dent-resistant 16 gauge steel, and light-weight glass-filled nylon handles ensure strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

Coverage
System coverage of the JBL JRX735 is 90 degrees horizontal and 50 degrees vertical with excellent coverage throughout the system’s bandwidth. The sound is smooth and consistent without hotspots so control is optimized.

Configurations
The PRX700 Series is a platform technology with a range of models that integrate seamlessly for multiple system options that excel in challenging audio environments and loud volumes. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, add the PRX718XLF subwoofer for exceptional low frequency extension and sound pressure.
Single speaker on a stand for public address
Full-range stereo set up with two top cabinets and a sub-woofer for live performance or DJ
Multiple cabinets for a scalable, highly professional sound reinforcement system
Suspend any of the top cabinets for use in commercial installations or Houses of Worship

An integrated limiter circuit on the inputs guarantees signal integrity. System performance is optimized through the use of sophisticated Digital Signal Processing for EQ, crossover, amplifier control, and protection.
DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ

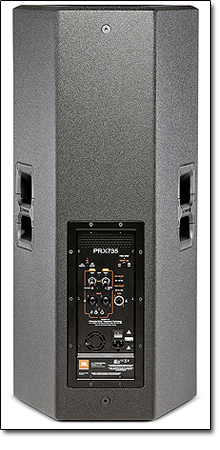

XLR-1/4 inch combination mic/instrument inputs, RCA inputs, and XLR loop-through
Easy to use mixing via selection switches on both the input and loop-thru
