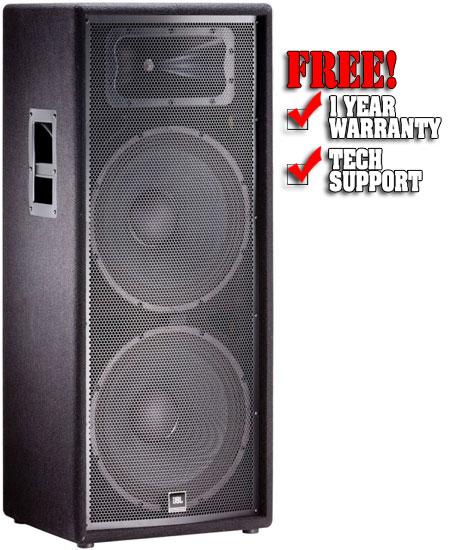

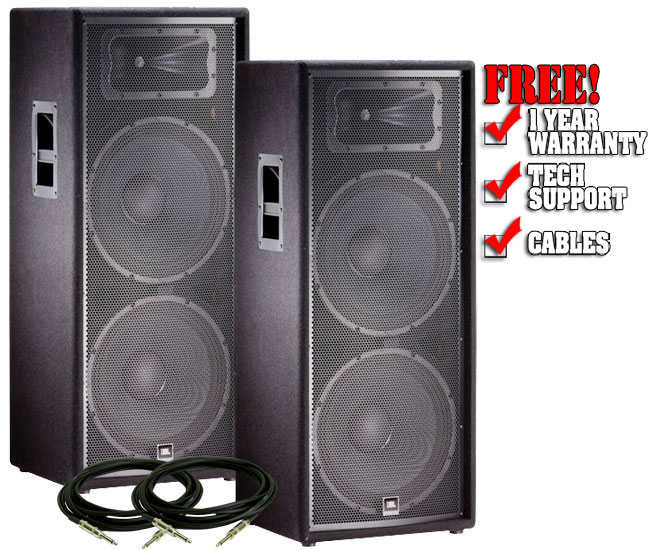

JBL JRX225

Description

• Power Rating : 2000 W
• Frequency Range (-10 dB) : 42 Hz - 18 kHz
• Frequency Response (±3 dB) : 62 Hz - 13 kHz
• Sensitivity (1w/1m) : 100 dB SPL
• Nominal Impedance : 4 ohms
• Recommended Amplifier Power : 500 W to 1000 W into 4 ohms
• Maximum SPL : 133 dB
• Nominal Dispersion : 90º x 50º
• Crossover Frequency : 2.2 kHz
• Dimensions: 43 in x 18.3 in x 17 in
• Weight : 94 lb
• High Frequency Driver : JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
• Low Frequency Driver : JBL M115-8A x 2

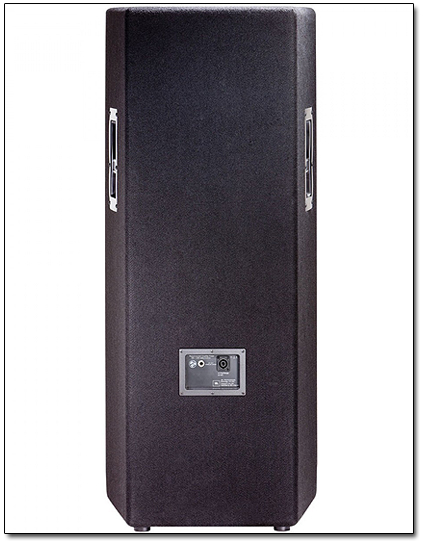

• Input Connectors : Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
• Grille : 18-gauge, powder-coated steel
• Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
