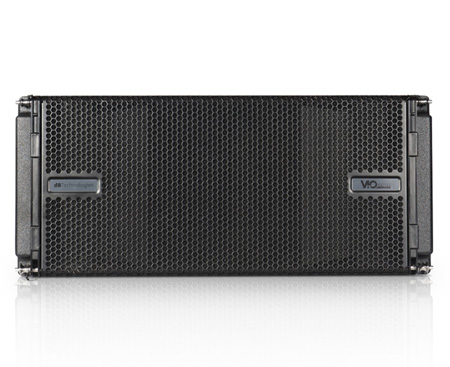

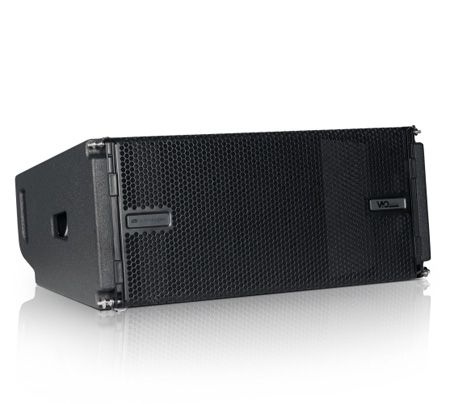

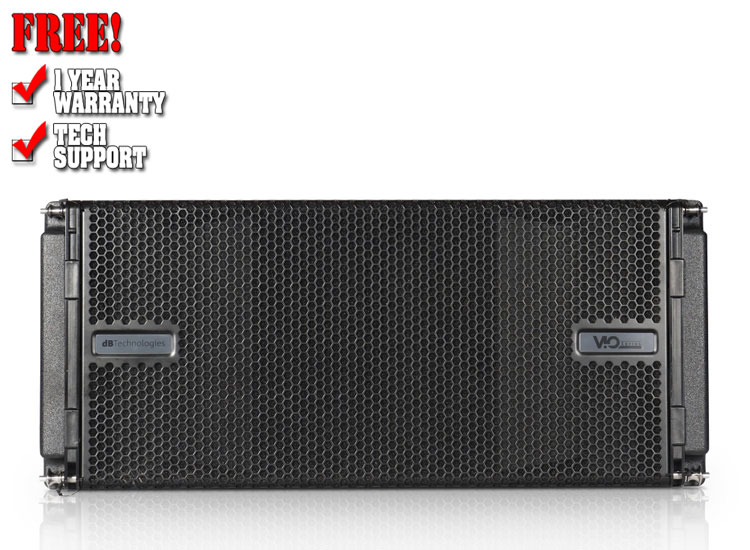

dB Technologies VIO L210

As a result of many years' experience, VIO L210 reaches the next level among dBtechnologies' speaker range aimed at larger sound reinforcement applications. A unique internal acoustic design and advanced sound processing merge to deliver outstanding performances in terms of sound pressure, coverage coherence, intelligibility and sound definition.

UNIQUE ACOUSTIC DESIGN COMBINING LONG THROW AND DETAILED AUDIO PERFORMANCE

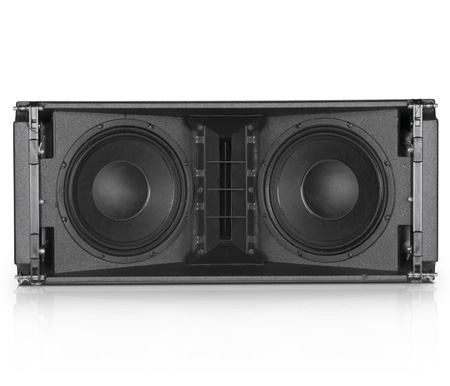

VIO L210's premium low-freq transducers, positioned in a V form and sealed in a bass reflex wooden enclosure, have been custom designed to improve efficiency and to last in high stress conditions, providing an accurate transient response and an extended low-end reproduction.

One single 3" voice coil compression driver (1.4" exit throat) accurately delivers high frequencies. A brand new waveguide contributes to create a cylindrical wavefront, allowing a very precise high-frequency directivity control, much to the advantage of the system's throw distance.

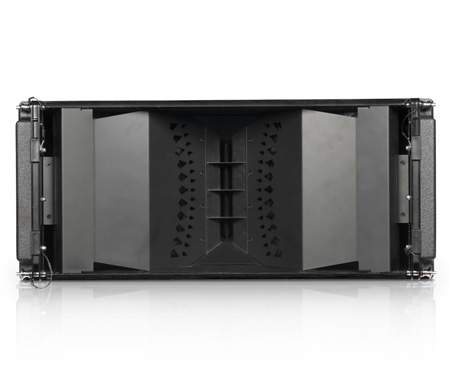

The acoustic enclosure is completed by two massive aluminium phase plugs located in front of both woofers which acts as a prosecution of the constant directivity high-frequency waveguide.

Each phase plug features 26 diamond-shaped holes aimed at reducing any interference within the crossover zone while improving frequency and transient response.

ADVANCED DSP PAIRED WITH NOTABLE EFFICIENCY

The module features a highly efficient Class D Digipro G3 900 W RMS amplifier which is perfectly capable of achieving 135 dB SPL.

A perfectly coherent coverage is granted even at a long distance thanks to advanced sound processing with FIR filters.

The pre-amp module is also equipped with a digital optical isolation which avoids audio coupling, preventing any noise created by potential differences.

SMART RIGGING HARDWARE & ACCESSORIES TO SPEED UP SET UP OPERATIONS

The VIO L210 comes with a built-in 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules from every angle. The back central rigging strand is equipped with a hook type link to set the relative splay angles determined via the prediction software dBTechnologies Composer. While lifting up the array, the rigging strand will automatically block the systems at the preset angles.

FEATURES

• 2 WAY ACTIVE LINE ARRAY SYSTEM
• NETWORK READY WITH AN INTEGRATED RDNET PORT
• NEWLY DESIGNED WOODEN ENCLOSURE COATED WITH POLYUREA
• SMOOTH CONFIGURATION AND SET UP
• EXCLUSIVELY DESIGNED WAVEGUIDE
• ALUMINIUM PHASE PLUGS
• ADVANCED DSP WITH FIR FILTERS
• LIGHTWEIGHT NEODYMIUM MAGNETS
• ON-BOARD DOUBLE ROTARY EQ CONTROL SYSTEM

Specification

Technical Data

• Speaker Type: 2-way Active Line Array Module

Acoustical data

• Usable Bandwidth [- 6 dB]67-20,000 Hz
• Frequency Response [+/- 3dB]78-18,100 Hz
• Max SPL135 dB
• HF1x1.4"
• Voice Coil HF3"
• Type HFNeodymium, Titanium Diaphragm
• LF2x10"
• Voice Coil LF2.5"
• Type LFNeodymium Aluminium Phase Plug
• Horizontal Directivity100°
• Vertical Directivitydepends on array size and configuration

Amplifier

• Amp TechnologyDigipro G3 [bi-amped]
• Amp ClassClass-D
• Power RMS900 W
• Peak Power1800 W
• CoolingConvection
• Power Supply900 W SMPS with Auto-range PSU

Processor

• ControllerDSP 56 bit
• AD/DA Converter24 bit/48 KHz
• LimiterDual Active Multiband Peak, RMS, Thermal
• Processing (filters)FIR Linear Phase
• Crossover Frequency LF-HF950 Hz
• Slope LF-HF24 dB/Octave

Input

• Signal Input1xXLR fem, Bal.
• Signal Output1xXLR male, Bal.
• NetworkRDNet remote control RJ45 connector IN/OUT
• Power Socket1xPowerCon TRUE1 IN
• 1xPowerCon TRUE1 Out
• Controls1xSpeakers Coupling (7 presets)
• 1x HF Compensation (8 presets)
• 1XInput Attenuation Rotary Switch

Mechanics

• HousingMultiplex Plywood
• Polyurea painted
• Housing DesignTrapezoidal 10°
• Handles2x side
• Rain CoverIncluded
• Rigging PointsIntegrated rigging hardware
• Width720 mm (28.35 in)
• Height320 mm (12.6 in)
• Depth520 mm (20.47 in)
• Weight28.6 Kg (63.00 lbs)

FEATURES

• VARIABLE CROSSOVER FREQUENCIES
• PRECISE LIMITER FUNCTIONS
• ON BOARD DELAY FOR PERFECT TIME ALIGNMENT
• PRESET FOR CONFIGURING CARDIOD SYSTEMS
• SETTINGS ACCESSIBLE VIA ROTARY ENCODER
• X-OVER OUT
• RDNET NETWORK PORT

Specification

Technical Data

• Speaker Type: 3-Way Active Line Array Module

Acoustical data

• Frequency Response [-6dB]66 - 18.000 Hz
• Max SPLOne Unit: 132 dB
• HF2x1 "
• Voice Coil HF1.4 "
• Directivity100x15 ° Single unit
• MF1x 6.5 "
• Voice Coil MF2 "
• LF8 "
• Voice Coil LF2.5 "

Amplifier

• Amp TechnologyDigipro® G2
• Amp ClassClass D
• HF Amp175 W RMS
• MF Amp175 W RMS
• LF Amp350 W RMS
• Cooling Convection

Processor

• ControllerDSP 56 bit with double precision filters
• AD/DA Converter24 bit/96 kHz
• System Presets9, (8xHF and Low-mid correction)
• LimiterDual Active Limiter
• Multiband RMS, Peak, Thermal
• Crossover Frequency MF-HF1900 Hz
• Slope MF-HF24 dB/Octave
• Crossover Frequency LF-MF400 Hz
• Slope LF-MF24 dB/Octave

Input

• Signal Input1x XLR fem, Bal.
• Signal Output1x XLR male, Bal.
• NetworkRDnet remote control RJ45 connector IN/OUT
• Power Socket1x Powercon In
• 1x Powercon Out
• Voltage Range90 - 240 V

Mechanics

• HousingPolypropylen PP
• Metal reinforced
• Housing DesignTrapezoidal 15°
• Rain CoverIncluded
• Rigging PointsIntegrated rigging hardware
• Width580 mm (23.2 in)
• Height240 mm (9.6 in)
• Depth327 mm (13.08 in)
• Weight14,2 kg (31.3 lbs)
