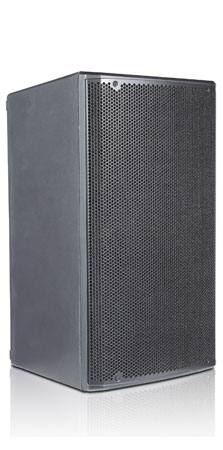

dB Technologies Opera 15

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range. Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera's asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Features:

• 1200 W PEAK POWER
• 600 W RMS POWER
• NEWLY DESIGNED ASYMMETRICAL HORN
• ADVANCED DSP WITH FIR FILTERS
• 2 INPUT CHANNELS (MIC-LINE/MIC-INSTR)
• SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2)
• 8 EQ PRESETS
• FRESH FULL GRILLE DESIGN

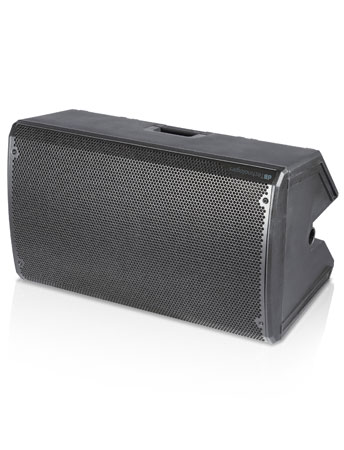

• STAGE MONITOR USE

Specifications:

Technical Data

• Speaker Type: 2-Way Active Speaker

Acoustical data

• Frequency Response [-10dB]50 - 20.000 Hz
• Frequency Response [- 3dB]56 - 19.000 Hz
• Max SPL130 dB
• HF1" Exit, 1.4 v.c.
• Type HFCompression driver
• Horizontal Directivity100° (85° up/120° down)
• Vertical Directivity85° (+ 25°/-60°)
• HornAsymmetrical Horn
• LF15", 2" v.c.

Amplifier

• Amp TechnologyAmp SMPS Power supply dual range
• Amp ClassClass D
• RMS Power600 W
• Peak Power1200 W

Processor

• ControllerDSP 56 bit
• AD/DA Converter24 bit/48 KHz
• System PresetsRotary Encoder (8 Presets)
• X-Over Frequency1800 Hz
• LimiterPeak, RMS, Thermal
• Advanced DSP FunctionsLinear Phase FIR Filters

Input

• Signal Input1xCombo (XLR/Jack 6.3 mm) MIC/Line
• 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
• Signal Output1x XLR Male (CH1 Link/Mix OUT)
• Selectable

Mechanics

• HousingPolypropylene with internal frame
• GrilleFull grille

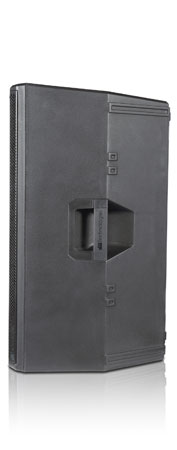

• Handles1 on left Side, 1 on Top
• Rigging Points2XM10 on Top + 1x M10 on Back
• Pole MountD36 mm
• Angles upMonitor use 45°
• Width420 mm (16.54 in)
• Height722 mm (28.43 in)
• Depth419 mm (16.50 in)
• Weight18.3 kg (40.34 lbs)
