DAS Event Digi Eight Pack

This Package Includes:

• (8) DAS Event 210A Dual 10" Multipurpose Powered Line Array Speakers
• (4) DAS Event 218A Dual 18" Powered Subwoofers
• (1) DAS DSP-2060A DSP Based Audio Processor
• (2) DAS AX-Event 210A Event 210A Rigging System
• (2) DAS Metal Transport Dolly for Event 210A [PL-EVENT210S]
• (2) DAS PL-Event 218S Transport Dolly for 3 Event 218A Stacking Speakers
• (6) DAS 3FT PowerCON & XLR Combo Jumper Cables 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]
• (2) DAS 6FT PowerCON & XLR Combo Jumper Cable 14 AWG Power 16 AWG Audio [DAS-CJC-6FT]

Each DAS Event 210A Box Includes:

• (1) DAS Event 210A Dual 10" Multipurpose Powered Line Array Speaker
• (1) Power Cord
• (1) User Manual

Each Event 218A Box Includes:

• (1) DAS Event 218A Dual 18" Powered Subwoofer
• (1) Power Cord
• (1) User Manual

The DSP-2060A Box Includes:

• (1) DAS DSP-2060A DSP Based Audio Processor
• (1) Power cord
• (1) User manual

The AX-Event 210A Box Includes:

• (1) Pick-up Bar
• (1) Attachment Parts Kit
• (2) Safety Pins

The PL-EVENT210S Box Includes:

• (1) DAS Metal Transport Dolly for Event 210A [PL-EVENT210S]

Each PL-Event 218S Box Includes:

• (1) DAS PL-Event 218S Transport Dolly for 3 Event 218A Stacking Speakers

The DAS-CJC-3FT Box Includes:

• (1) DAS 3FT Combo Jumper Cable 14 AWG Power 16 AWG Audio

The DAS-CJC-6FT Box Includes:

• (1) DAS 6FT Combo Jumper Cable 14 AWG Power 16 AWG Audio

About This Product

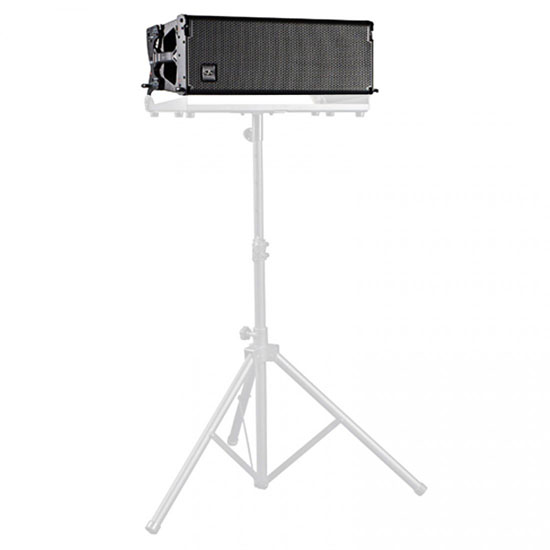

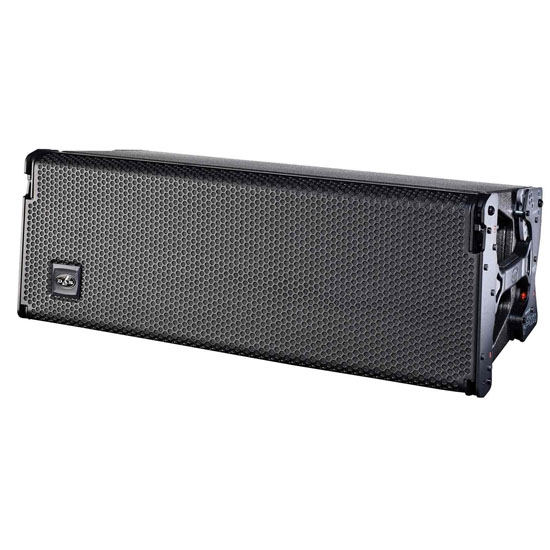

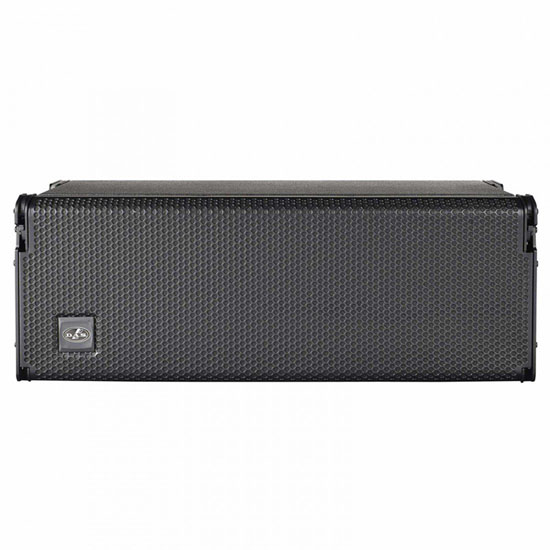

DAS Event 210A Dual 10" Multipurpose Powered Line Array Speaker

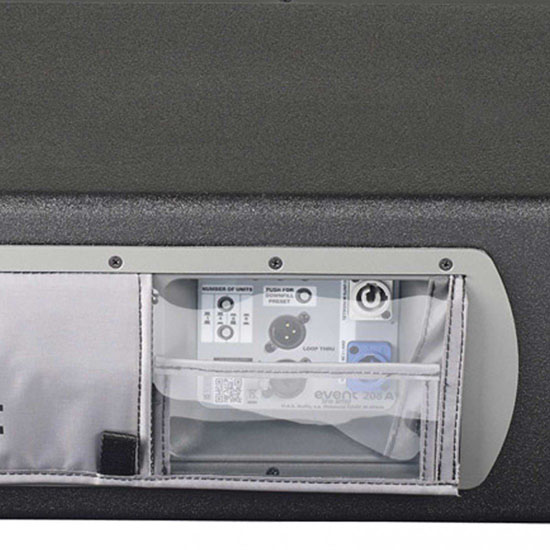

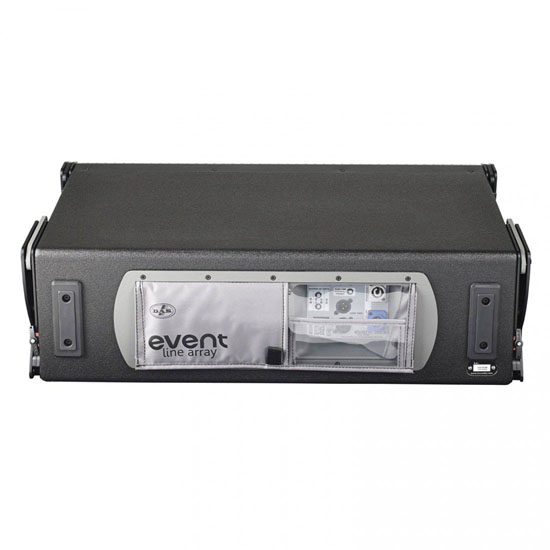

The Event 210A Line is a three-way powered line array in a double 10" "dual-band" configuration which provides a wider frequency range. The D.A.S. loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 210A line array is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp's rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP interface which simplifies preset selection for the number of units and throw depth.

DAS Event 210A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP Interface.
• Quality Neutrik connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers.

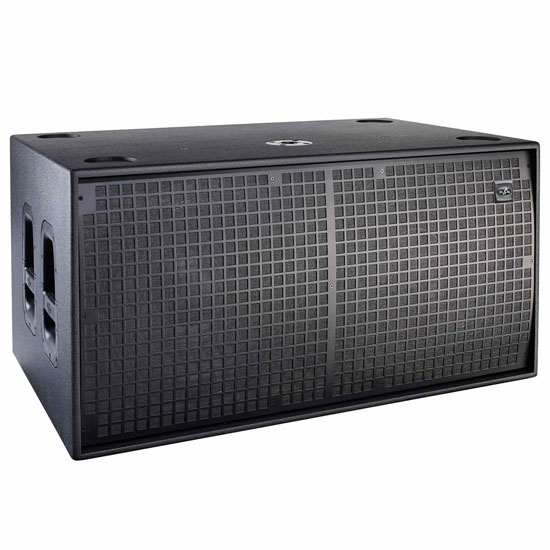

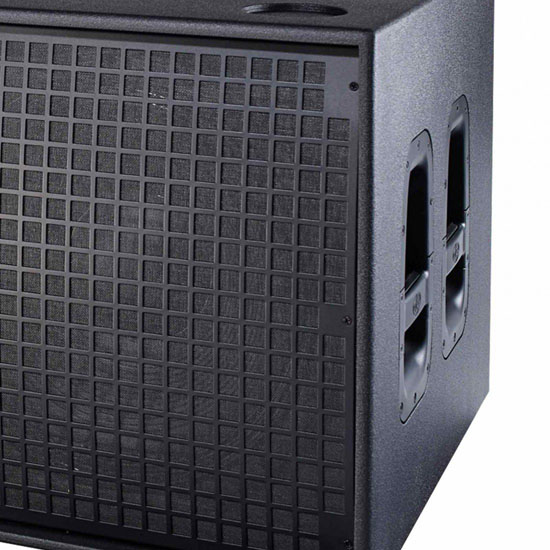

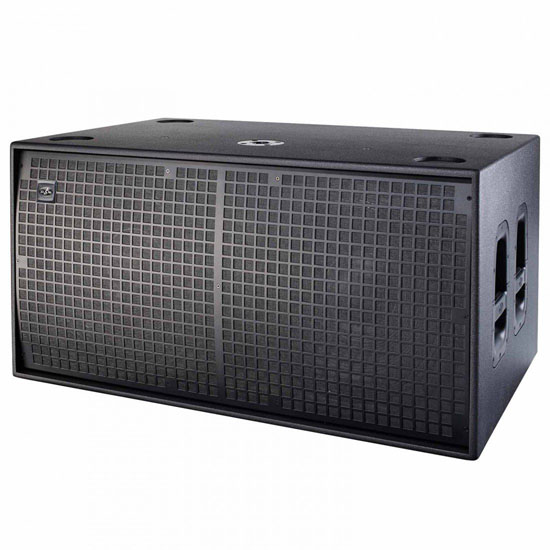

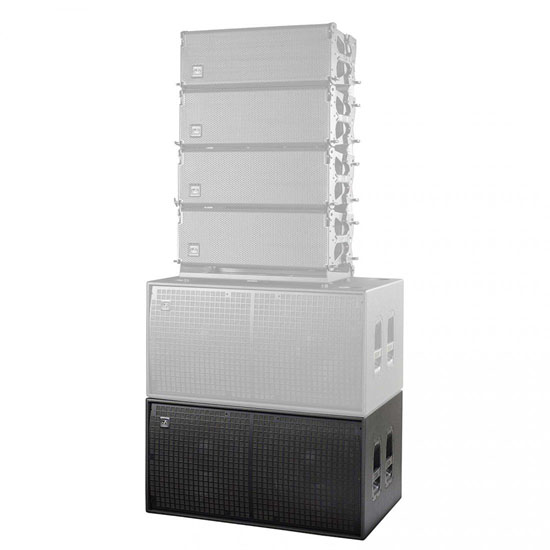

DAS Event 218A Dual 18" Powered Subwoofer

The Event 218A dual 18" powered subwoofer makes use of one of D.A.S.'s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo "loop thru" connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.

Event 218A Features:

• Powered high performance subwoofer system.
• 3600 Wpeak Class "D" amplifier.
• Two 18LX loudspeakers with 4" voice coils.
• Front loaded bass-reflex configuration.
• Durable ISO-flex finish.

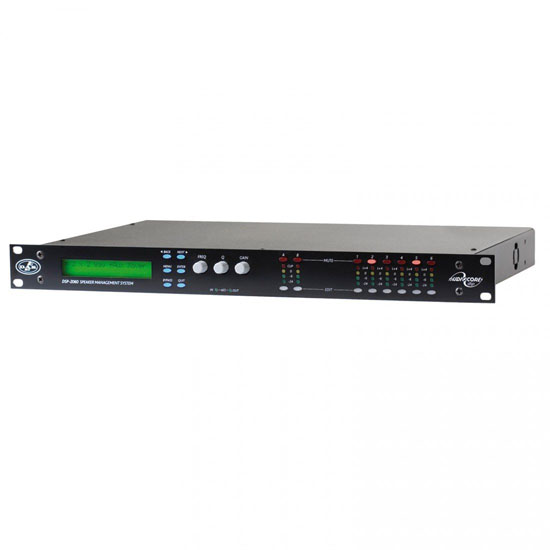

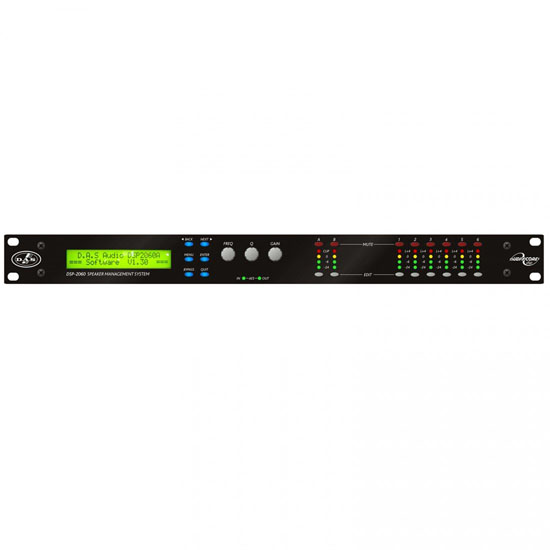

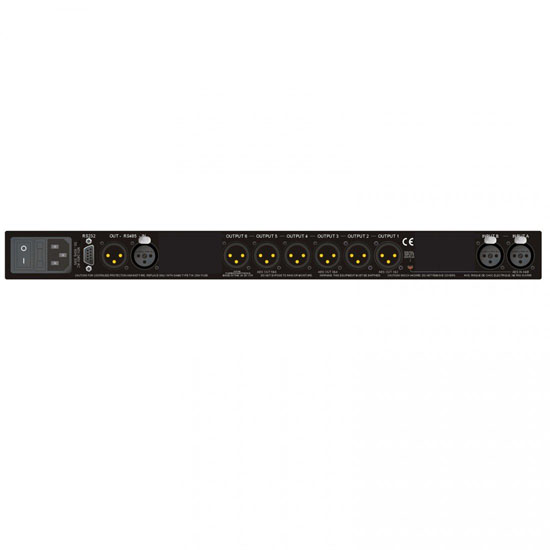

DAS DSP-2060A DSP Based Audio Processor

The DSP-2060A is a powerful DSP based audio processor, ideally suited for install and live applications, where it combines the functions of a multitud of conventional products in a compact unit.

• 2 inputs and 6 outputs.
• 9 full bandwidth parametric bands available on every output.
• Crossover filters on each output offer 48 dB/oct response.
• Adjustable gain on both inputs and outputs.
• RS232 and RS485 ports for remote control via AudioCore software.

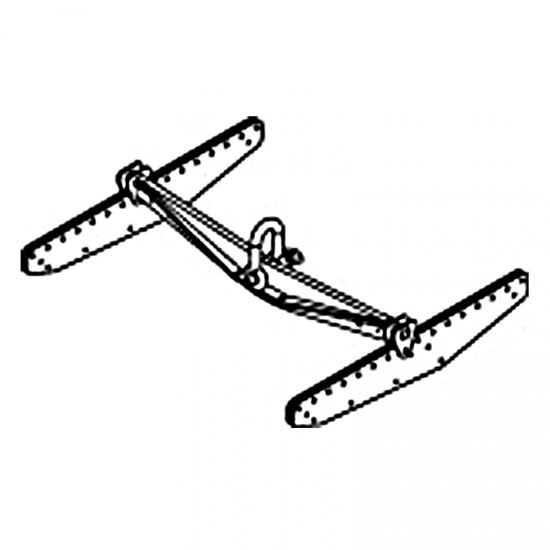

DAS AX-Event 210A Event 210A Rigging system

Rigging system for Event 210A Line Array Speakers.

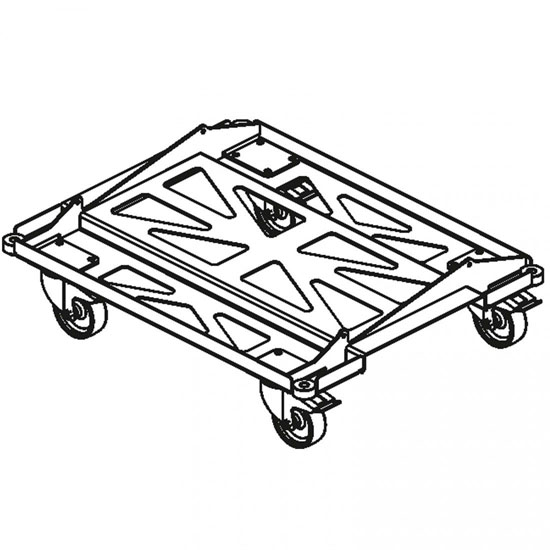

DAS PL-EVENT210S Metal Transport Dolly for Event 210A

Metal dolly for stacking up to 6 u. Event 210A.

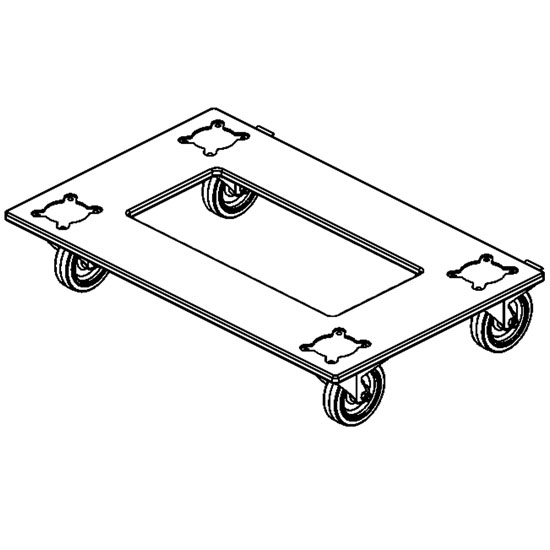

DAS PL-Event 218S Transport Dolly for 3 Event 218A Stacking Speakers

Metallic caster frame for stacking event 208A (max 3 units).

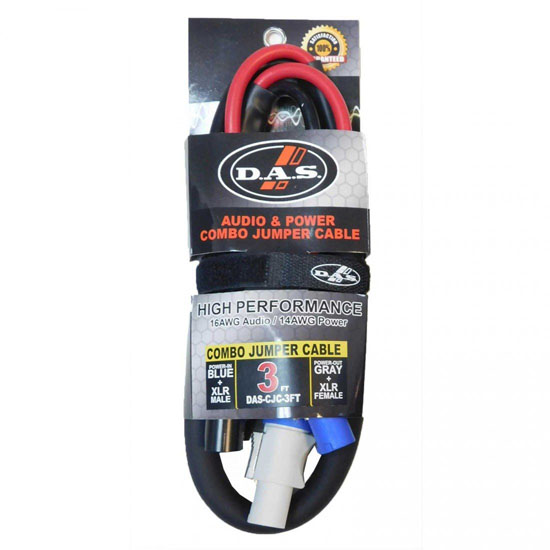

DAS 3FT PowerCON & XLR Combo Jumper Cable 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]

3FT. Combo Jumper Cable : 14 AWG Power, 16 AWG Audio Power-in (blue) w/ XLR Male on one side and Power-out (gray) w/ XLR Female on the other side. Both cables are housed in a single sleeve with insulation.

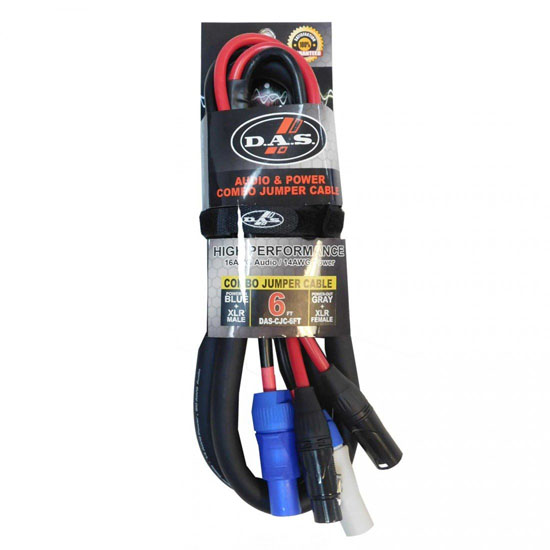

DAS 6FT PowerCON & XLR Combo Jumper Cable 14 AWG Power 16 AWG Audio [DAS-CJC-6FT]

6FT. Combo Jumper Cable : 14 AWG Power, 16 AWG Audio. Power-in (blue) w/ XLR Male on one side and Power-out (gray) w/ XLR Female on the other side. Both cables are housed in a single sleeve with insulation.

DAS Event 210A Specifications

• Nominal HF Amplifier Power : 360 Wpeak
• Nominal MF Amplifier Power : 360 Wpeak
• Nominal LF Amplifier Power : 360 Wpeak
• Frequency Range (-10 dB) : 70 Hz -20 kHz
• Rated Peak SPL at 1 m : 134 dB
• Horizontal Coverage (-6 dB) : 90° Nominal
• Vertical Coverage : Splay Dependent
• Enclosure Material :Birch Plywood
• Color/Finish : Black ISO-flex Paint
• Connectors
• INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements : 115 V, 3.0A, 50 Hz/60 Hz, 230 V, 1.2A, 50 Hz/60 Hz
• Dimensions (H x W x D) 27 x 73 x 36.6 cm, 10.6 x 26.4 x 14.4 in
• Weight 34 kg (74.8 lb)

DAS Event 218A Specifications

• Nominal LF Amplifier Power:3600 Wpeak-1800 Wcontinuous
• Frequency Range (-10 dB):32 Hz - 125 Hz
• Rated Peak SPL at 1 m:140 dB
• Internal Crossover:100 Hz
• Connectors
• IN: Female XLR
• LOOP THRU: Male XLR
• AC IN:powerCON
• AC OUT: powerCON
• AC Requirements:6. 0A, 115 V, 50 Hz/60 Hz,3.0 A, 230 V, 50 Hz/60 Hz
• Enclosure Material:Birch Plywood
• Color/Finish:Black ISO-flex Paint
• Dimensions (H x W x D): 54 x 106 x 67 cm, 21.3 x 41.7 x 26.4 in
• Weight:70 kg (154 lb)

DAS DSP-2060A Specifications

• Frequency Response: 20 Hz-20 kHz, +0/-0.50 dB, 32 kHz, -3 dB
• Dynamic Range: >116 dB unweighted 20 Hz-20 kHz
• Distortion (THD): < 0.02% @ 1 kHz, +18 dBm
• AC Requirements: 60-250 VAC 50/60 Hz
• Dimensions (H x W x D): 4.4 x 48.2 x 30 cm, 1.75 x 19 x 11.8 in
• Weight: 3.3 kg (7.3 lb)
