DAS Event 208A Tripod Pack

This Package Includes:

• (2) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speakers
• (2) DAS AXC-ZT Speaker Adaptors for use with AXS on Aero 8A, Convert 12A, and Event series
• (2) DAS AXS-EVENT 208 Event 208 Stacking Brackets
• (2) Pneumatic Tripod Speaker Stands with Aluminium Tube Structure

Each DAS Event 208A Box Includes:

• (1) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speaker
• (1) Power Cord
• (1) User Manual

Each AXC-ZT Box Includes:

• (1) DAS AXC-ZT Speaker Adaptor for use with AXS on Aero 8A, Convert 12A, and Event series

Each DAS AXS-EVENT Box Includes:

• (1) DAS AXS-EVENT 208 Event 208 Stacking Bracket

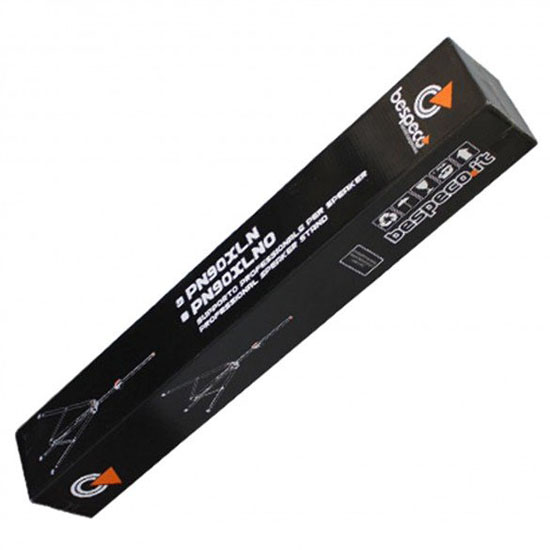

Each PN90XLNO Box Includes:

• (1) Pneumatic Tripod Speaker Stand with Aluminium Tube Structure

About This Product

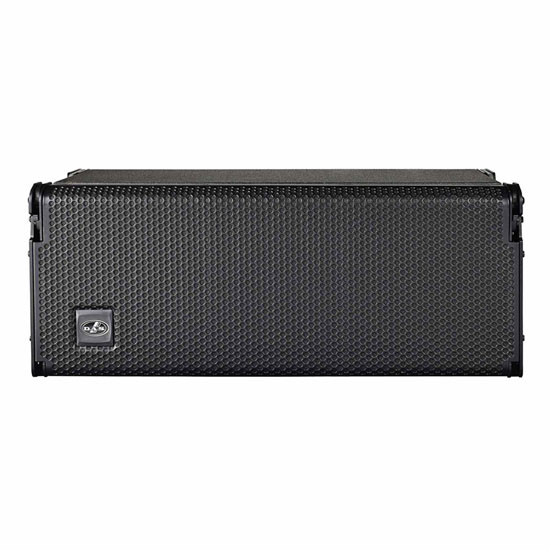

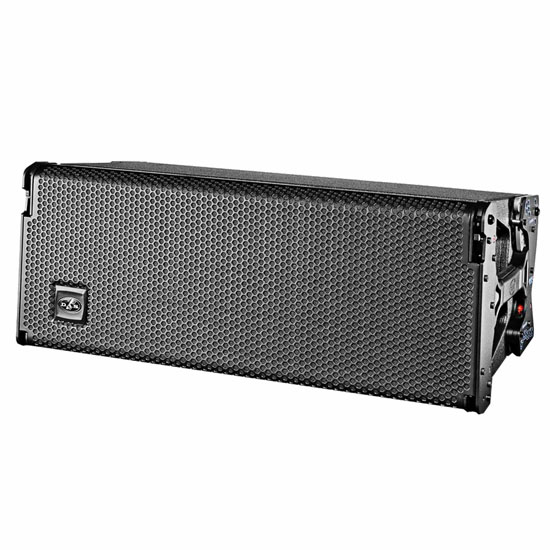

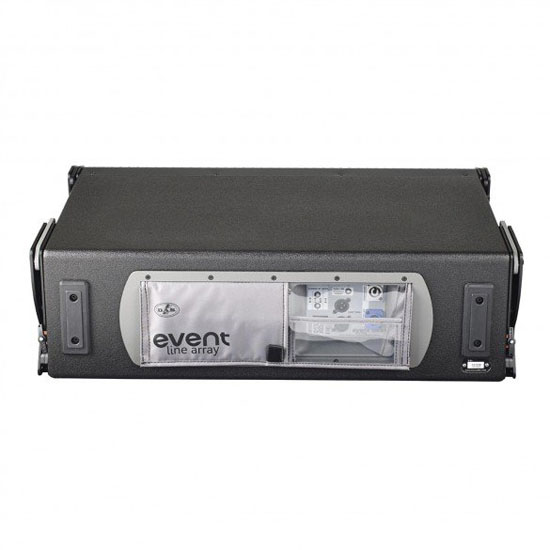

DAS Event-208A Dual 8" Multipurpose Powered Line Array Speaker

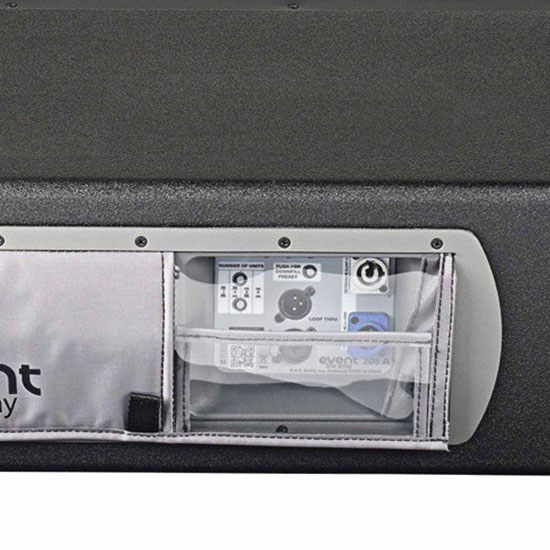

The Event 208A Line is a three-way powered line array in a double 8" configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp's rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP interface which simplifies preset selection for the number of units and throw depth.

DAS Event 208A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP Interface.
• Quality Neutrik connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers.

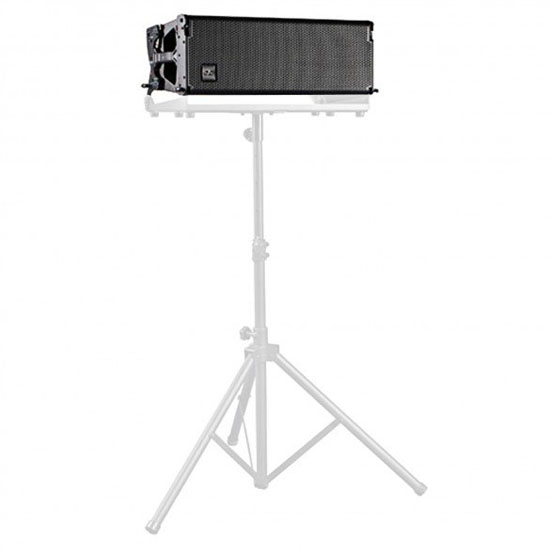

DAS AXC-ZT Speaker Adaptor for use with AXS on Aero 8A, Convert 12A, and Event series

Accessory that allows mounting to support with TDR-2 (speaker stand).

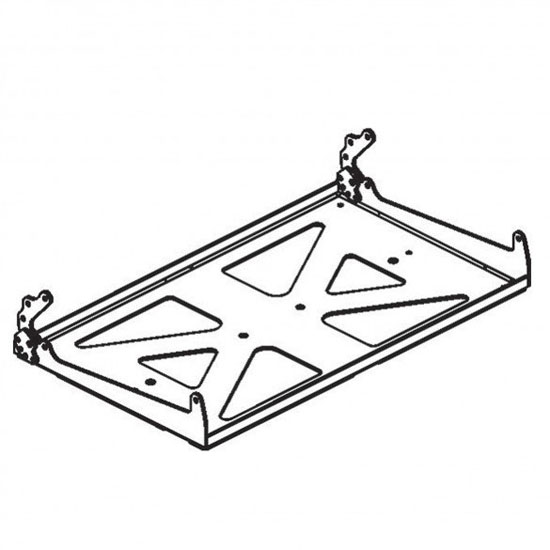

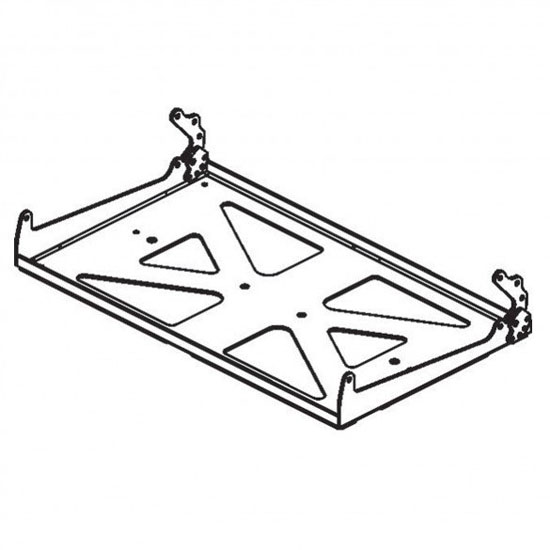

DAS AXS-EVENT 208 Event 208 Stacking Bracket

Stacking bracket, ceiling mount, truss mounting (requires AXC-AT) or TRD-2 mounting (requires AXC-ZT), for Event 208A.

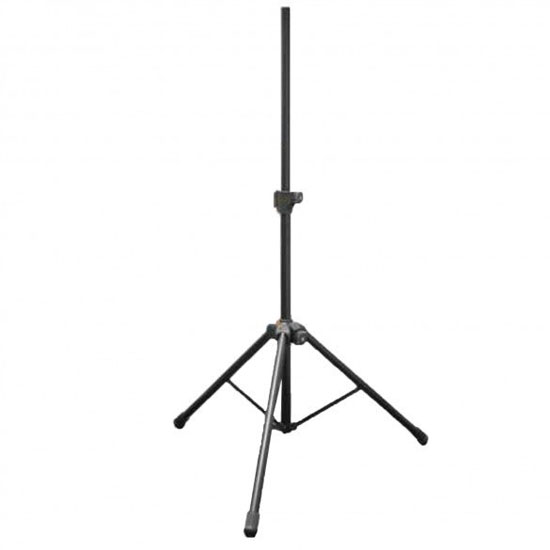

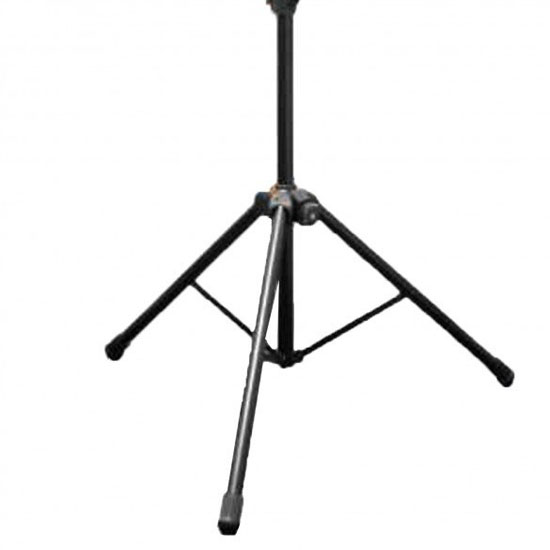

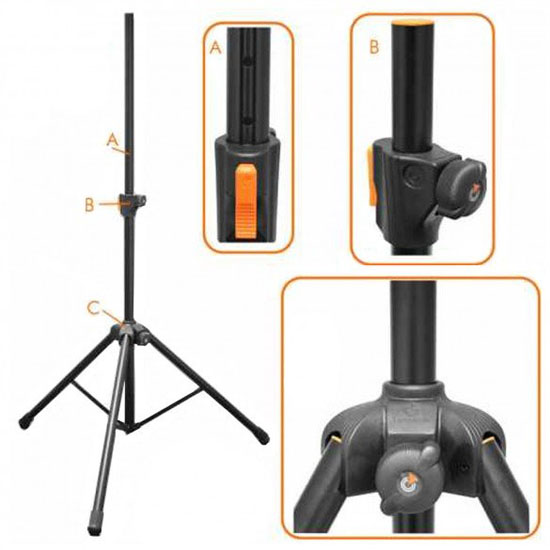

Pneumatic Tripod Speaker Stand with Aluminium Tube Structure

Pneumatic speaker stand with aluminium tube structure 35 x 1,5 mm and steel legs 35 x 1,2 mm. Such features make the stand, among its range, the strongest and more stable in the market. Innovative design.

DAS Event 208A Specifications

• Nominal HF Amplifier Power : 360 Wpeak
• Nominal MF Amplifier Power : 360 Wpeak
• Nominal LF Amplifier Power : 360 Wpeak
• Frequency Range (-10 dB) : 75 Hz -20 kHz
• Rated Peak SPL at 1 m : 132 dB
• Horizontal Coverage (-6 dB) : 90° Nominal
• Vertical Coverage : Splay Dependent
• Enclosure Material :Birch Plywood
• Color/Finish : Black ISO-flex Paint
• Connectors
• INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements : 115 V, 2.4A, 50 Hz/60 Hz, 230 V, 1.2A, 50 Hz/60 Hz
• Dimensions (H x W x D) 27 x 67 x 36.6 cm, 10.6 x 26.4 x 14.4 in
• Weight 30 kg (66 lb)

Pneumatic Tripod Speaker Stands Specifications

• Minimum Height : 133,5 cm.
• Maximum Height : 213 cm.
• Maximum Opening : 120 cm
• Weight : 4 Kg.
• Maximum Carriage Capacity : 90 Kg
• Total Volume : 0,181 cbm
• Package : 6
• Color : black/orange
• Paint : no toxic powder
• Material of Construction : Steel + Aluminium
