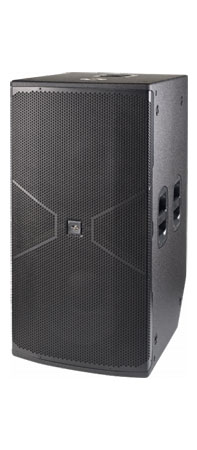

DAS VANTEC-218

The VANTEC-218 bass system incorporates the legendary 18LX low frequency transducer with a 4" voice coil mounted as direct radiator into a bass-reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.

The VANTEC-218 is designed for use in biamped systems. A top located pole-mount socket permits mounting full-range systems above the VANTEC-218. Handles on the sides and the rear of the cabinet along with two rear located wheels make moving the box easier.

Features

• Bass-reflex subwoofer system
• Twin 18LX long excursion transducer
• Precise and powerful bass reproduction
• Top located pole mount socket
• Rigging points

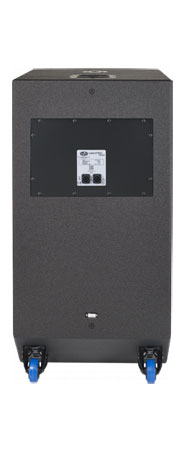

• Rear located wheels for easy movement

Performance

• Frequency Range (-10 dB) 30 Hz - 125 Hz
• Nominal Impedance 4 ohms
• RMS Power Handling 2000 W
• Peak Power Handling 8000 W
• On-axis Sensitivity 1W/1 m 101 dB SPL
• Maximum Peak SPL at 1 m 140 dB
• Recommended Amplifier PA-4000
• Recommended Processor DSP-226

Connectors

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Depth 675 mm (26,6 in)
• Dimensions ( H x W x D ) 1.070 x 545 x 675 mm
  42,1 x 21,5 x 26,6 in
• Net Weight 67,5 kg ( 149,0 lb )

Components

• LF Driver 18LX

Shipping

• Carton Dimensions ( H x W x D ) 1.180 x 730 x 610 mm
  46,5 x 28,7 x 24,0 in
• Shipping Weight 72,5 kg ( 160,0 lb )
