DAS VANTEC-20A-W

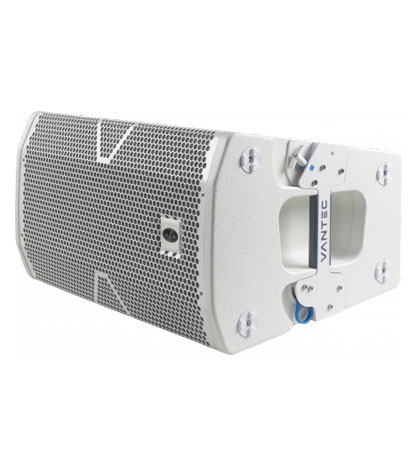

The VANTEC-20A-W is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by today's sound hire professionals. Whether it be stacked on the VANTEC-118A-W companion subwoofer, flown in a compact array, or used alone on a speaker stand, the VANTEC-20A-W can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation.

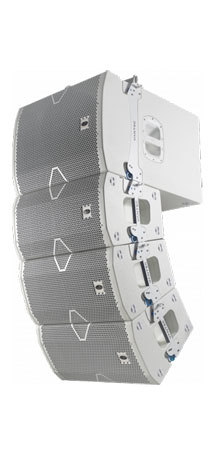

Designed for use in arrays of up to 5 units, the VANTEC-20A-W is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock™ rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A-W . Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5° up or down tilt.

The DAScontrolTM interface allows users to easily configure the VANTEC-20A-W i systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A-W active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A-W is used individually, the DASlink™APP can be used to stream music in high definition stereo and remotely control the systems functions.

The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 Wpeak Class D amplifier in a biamplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.

Features

• Active Curved Source Line Array
• Class D Bi-amplified 1500 Wpeak
• FIR filters for linear phase response
• 1 x DAS 12F4C + 2 x M-60 compression drivers
• Compact design with high output capabilities
• DAScontrol™ with presets and configurations
• DASlink™ wireless streaming and remote control
• +/- 13.5° variable tilt pole mount

Performance

• Frequency Range (-10 dB) 63 Hz - 20 kHz
• Maximum Peak SPL at 1 m 135 dB

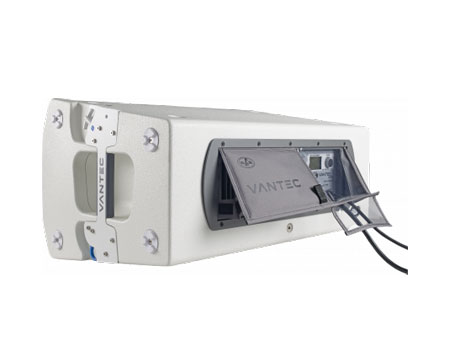

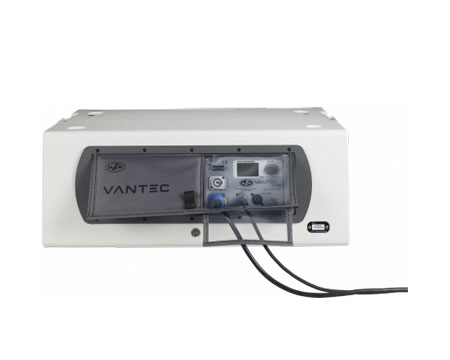

Electronics and Connectors

• Nominal Amplifier Power (continuous) 750 W
• Nominal Amplifier Power (peak) 1500 W
• Input Impeadance 20 kohms
• Input Sensitivity Line: 3 V (+12 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 1 x Male XLR
• Control DASlink™
• DAScontrol™
• AC Output Connector powerCON NAC3FCB
• Current Draw 230 V / 115 V 1.5 A/3.0 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Trapezoidal
• Rigging Captive Rigging System
• Finish ISO-flex Paint
• Color White
• Dimensions ( H x W x D ) 335 x 625 x 440 mm
  13,2 x 24,6 x 17,3 in
• Net Weight 28,5 kg ( 62,8 lb )

Components

• LF Driver 12F4C
• HF Driver M-60
• Horn/Waveguide BC-915

Shipping

• Carton Dimensions ( H x W x D ) 490 x 730 x 490 mm
  19,3 x 28,7 x 19,3 in
• Shipping Weight 29,0 kg ( 63,8 lb )
