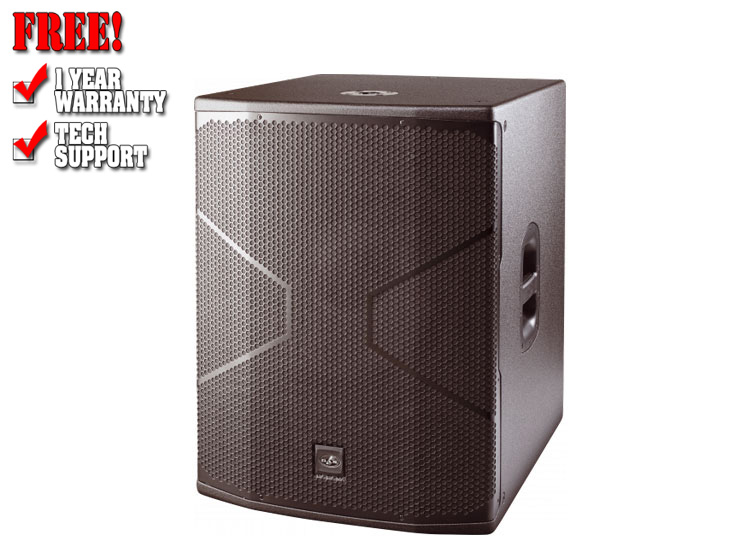

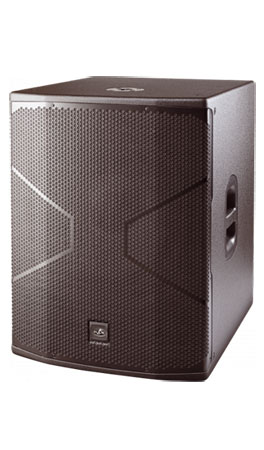

DAS VANTEC-18

The VANTEC-18 bass system incorporates the legendary 18LX-low frequency transducer with a 4" voice coil mounted as direct radiator into a bass reflex cabinet. The loudspeaker is protected by a rugged steel grille sealed against corrosion using a powder coat finish.

The VANTEC-18 is designed for use in biamped systems. A top located pole mount socket permits mounting full range systems above the Vantec-18 and two bar handles makes moving easy.

Features

• Bass-reflex subwoofer system
• 18LX long excursion transducer
• PreciseAnd powerful bass reproduction
• Top located poleMount socket

Performance

• Frequency Range (-10 dB) 45 Hz - 138 Hz
• Nominal Impedance 8 ohms
• RMS Power Handling 1000 W
• Peak Power Handling 4000 W
• On-axis Sensitivity 1W/1 m 98 dB SPL
• Maximum Peak SPL at 1 m 134 dB
• Recommended Amplifier PA-2700
• Recommended Processor DSP-226

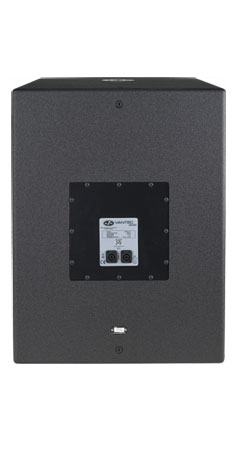

Connectors

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Depth 655 mm (25,8 in)
• Dimensions ( H x W x D ) 720 x 545 x 655 mm
  28,3 x 21,5 x 25,8 in
• Net Weight 35,0 kg ( 77,2 lb )

Components

• LF Driver 18LX

Shipping

• Carton Dimensions ( H x W x D ) 820 x 616 x 726 mm
  32,3 x 24,3 x 28,6 in
• Shipping Weight 45,0 kg ( 99,2 lb )
