DAS VANTEC-12

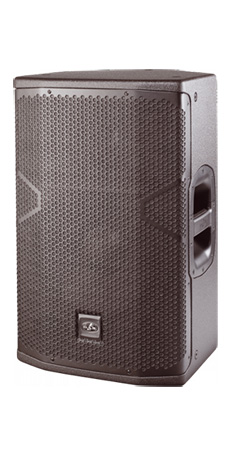

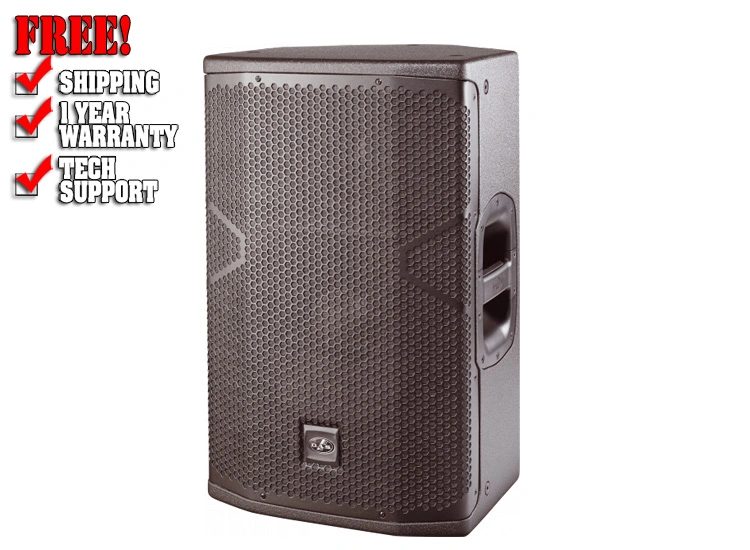

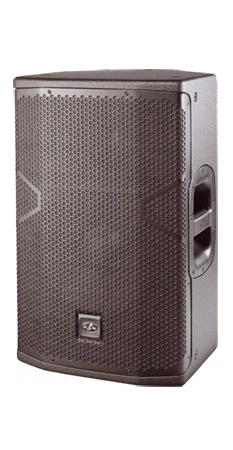

The VANTEC-12 is a 2 way passive full range loudspeaker that utilizes a 12" F series low frequency transducer and a 1" FEM optimized compression driver.

The multi angle cabinet is constructed of Birch plywood protected by the DAS ISO-flex black paint finish. Two bar handles and a rugged steel grille are provided. A 35 mm tripod socket with dual angle (0°/10°) allows for stand mounting.

Features

• 2-way, full range system
• 12" Fseries bass loudspeaker
• 1" FEM optimized compression driver
• Enclosure designAllows for stageMonitor use
• Built-in rigging points
• DualAngle (0°/10°) Pole mount socket

Performance

• Frequency Range (-10 dB) 65 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 50°
• Nominal Impedance 8 ohms
• RMS Power Handling 500 W
• Peak Power Handling 2000 W
• On-axis Sensitivity 1W/1 m 98 dB SPL
• Maximum Peak SPL at 1 m 135 dB
• Recommended Amplifier PA-1500
• Recommended Processor DSP-226

Connectors

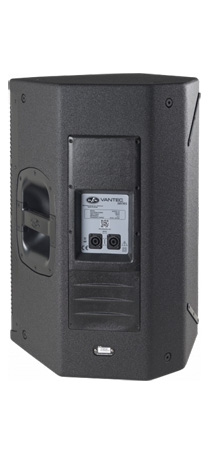

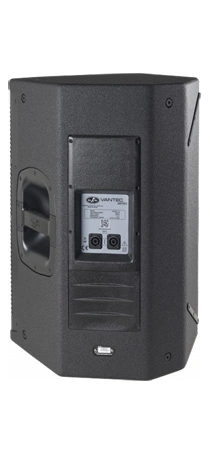

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Trapezoidal
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Depth 380 mm (15,0 in)
• Dimensions ( H x W x D ) 620 x 380 x 380 mm
• 24,4 x 15,0 x 15,0 in
• Net Weight 20,5 kg ( 45,2 lb )

Components

• LF Driver 12F
• HF Driver M-28
• Horn/Waveguide BC-95

Shipping

• Carton Dimensions ( H x W x D ) 720 x 456 x 456 mm
  28,4 x 18,0 x 18,0 in
• Shipping Weight 22,5 kg ( 49,6 lb )
