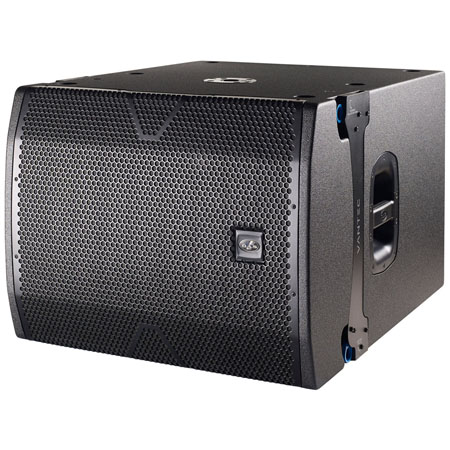

DAS Vantec 118A 18-inch 2000W Powered Subwoofer

Description

The Vantec-118A is an active front loaded bass system which has been designed specifically for use with the Vantec-20A curved source line array. Compact in size, the unit can be flown in arrays or linked together in ground stacks thanks to the D.A.S. Click-Lock™ rigging system which is compatible with the Vantec-20A.

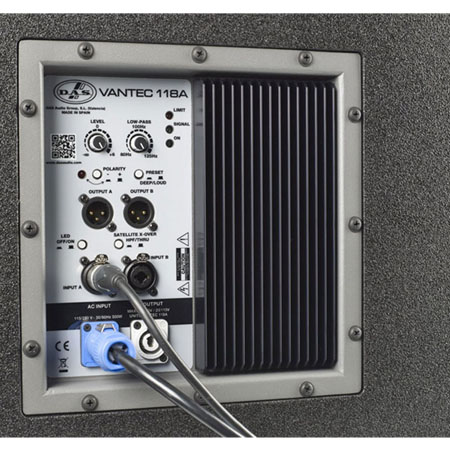

The electronics package includes a 2000 W peak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique "Deep-Loud" EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the "Deep" setting or a louder hard hitting performance in the "Loud" setting. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The Vantec-118A is phase response coherent with the other Vantec Series active tops such as the Vantec-20A offering precise alignment without the need of an external DSP.

Features

• Active front-loaded subwoofer system
• 1 x 18? DAS 18FW loudspeaker
• Class D amplifier 2000W peak
• Digital signal processing (DSP)
• Unique "Deep-Loud" bass EQ switch
• Variable low-pass filter 80 Hz-125 Hz
• LED ON/OFF switch on backplate
• New Click-Lock™ rigging compatible with Vantec-20A
• Top located pole mount socket

Specifications

• Nominal LF Amplifier Power: 2000W peak
• Frequency Range (-10 dB): 35 Hz - 125 Hz
• Rated Peak SPL at 1 m: 134 dB
• Input: 2 x Female XLR
• Loop Thru: 2 x Male XLR
• AC Input: 1 x powerCON
• AC Output: 1 x powerCON
• AC Requirements: 115 V, 4.4 A, 50 Hz/60 Hz, 230 V, 2.2 A, 50 Hz/60 Hz
• Enclosure Material: Birch Plywood
• Color/Finish: Black/ISO-flex
• Dimensions: 19" x 24.1" x 16.3" (HxWxD)
• Weight: 97.9 lbs.
