DAS EVENT-28A

The EVENT-28A is an advanced symmetrical, compact, two-way powered line array system. Designed to provide outstanding performance and ease of use, this system features a stylish and portable polypropylene cabinet design that is both road-worthy and highly durable. With a comprehensive range of accessories, the EVENT-28A is perfect for small to mid-size rental and installation applications seeking superior sound quality.

This system integrates two 8" neodymium transducers and a single M-60 compression driver into a robust yet lightweight polymer cabinet. The 8" transducers, enhanced with neodymium magnets for reduced weight, ensure efficient sound projection and superior low-frequency response. The symmetric "V" shaped configuration of the cone transducers delivers consistent 100° horizontal coverage down to 200 Hz. The M-60 compression driver remains coupled to an advanced waveguide design, which controls the vertical dispersion and ensures precise coupling between units in vertical arrays.

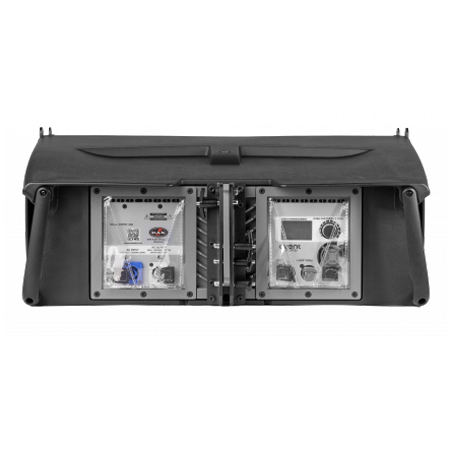

Powered by a two-channel Class D amplifier, the EVENT-28A boasts 1300 Wpeak power. The amplifier's rear panel is equipped with high-quality Neutrik® XLR and powerCON connectors. Using the DAScontrol™ interface, users can quickly select presets based on the number of units in the array. The onboard DSP utilizes a 24-bit high-end processor to manage crossover, EQ, delay, and limiter functions. Incorporating FIR filtering technology, the EVENT-28A maintains constant phase response, leading to transparent sound and exceptional clarity that enhances the overall listening experience.

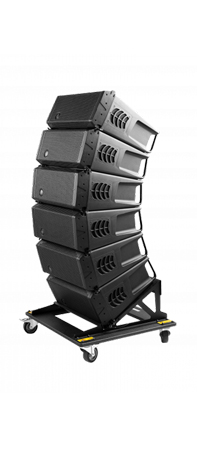

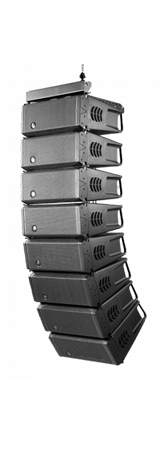

Installation and deployment of EVENT-28A arrays are streamlined with the innovative Fast Set Splay (FSS™) rigging system, which allows for quick angle selection while stacked on dollies. The stainless-steel rigging hardware supports flown arrays of up to 16 units, adjustable in 1° increments from 0° to 10°.

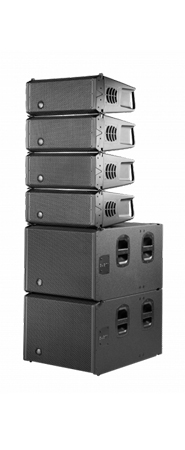

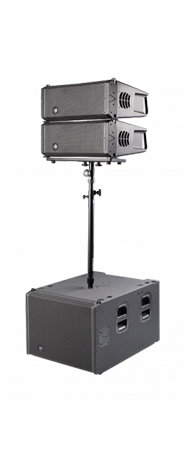

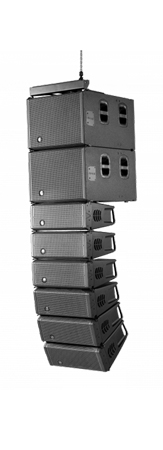

The EVENT-28A pairs seamlessly with the flyable companion subwoofer, the EVENT-118A, ensuring robust low-frequency reinforcement. Weighing 20 kg, the EVENT-28A strikes an excellent balance between size, performance, and portability, making it an ideal solution for a wide array of sound reinforcement applications.

Features

• Ultra-compact, lightweight powered line array
• High-efficiency Class D amplifier with SMPS
• Dual voltage mains for use anywhere in the world
• Easy system configuration thanks to DAScontrolTM
• High-end 24-bit DSP with LCD screen
• FIR processing for constant phase response
• FSSTM Fast Set Splay rigging for quick deployment

Applications

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Technical Information

Performance

• Frequency Range (-10 dB) 70 Hz - 20kHz
• Horizontal Coverage (-6 dB) 100°
• Vertical Coverage Splay Dependent
• Maximum Peak SPL at 1 m 133 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 650 W
• Nominal Amplifier Power (peak) 1300 W
• Nominal Amplifier Power LF (continuous) 500 W
• Nominal Amplifier Power LF (peak) 1000 W
• Nominal Amplifier Power HF (continuous) 150 W
• Nominal Amplifier Power HF (peak) 300 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 6.2 V (+18 dBu)
• Audio Signal Input Connector 1 x Female XLR
• Audio Signal Loop Thru Connector 1 x Male XLR
• Recommended Signal Processing INTEGRAL-M26X
• AC Output Connector powerCON NAC3MPB
• Current Draw 230 V / 115 V 1.2 A / 2.4 A

Enclosure

• Enclosure Construction Polypropylene
• Enclosure Geometry Trapezoidal
• Rigging Captive Rigging System
• Color Black
• Dimensions ( H x W x D ) 280 x 635 x 525 mm
• 11,0 x 25,0 x 20,7 in
• Net Weight 20,5 kg ( 44,1 lb )

Components

• LF Driver 8MIN
• HF Driver M-60

Shipping

• Carton Dimensions ( H x W x D ) 715 x 600 x 335 mm
• 28,2 x 23,6 x 13,2 in
• Shipping Weight 24,0 kg ( 53,0 lb )
