DAS EVENT-M210A-115

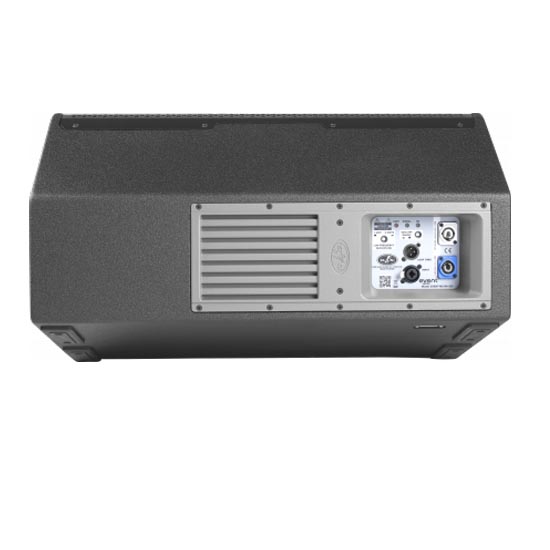

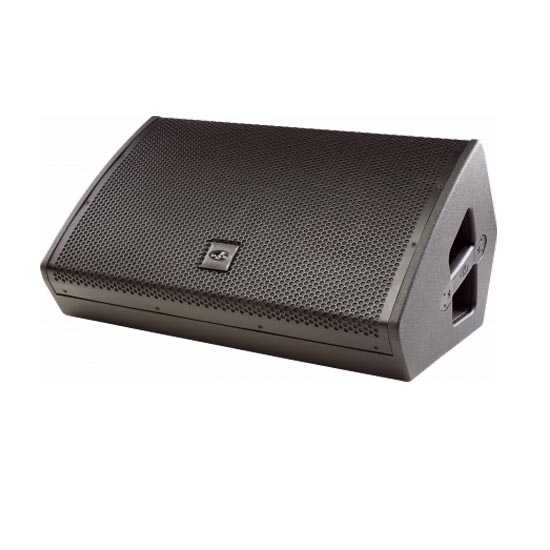

The EVENT-M210A is a three-way stage monitor in a double 10" "dual-band" configuration providing a wide frequency range. The DAS loudspeaker units have been teamed up with a single M-60 compression driver and purpose-designed injected aluminum high frequency waveguide. The EVENT-M210A wedge is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp's rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup.

Features

• Light-weight Class D amplifier topology
• High-end DSP chipsets
• Special monitor Easy-DSP™ Interface
• Quality Neutrik® connectors
• Top grade Birch cabinet construction
• Durable ISO-flex finish
• Proprietary injected aluminum HF waveguide
• DAS M-60 compression driver

Applications

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Specifications

• Performance
  • Frequency Range (-10 dB) : 70 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 60°
  • Vertical Coverage : 20°Up/30°Down
  • Maximum Peak SPL at 1 m : 132 dB
• Electronics and Connectors
  • Nominal Amplifier Power LF (continuous) : 180 W
  • Nominal Amplifier Power LF (peak) : 360 W
  • Nominal Amplifier Power MF (continuous) : 180 W
  • Nominal Amplifier Power MF (peak) : 360 W
  • Nominal Amplifier Power HF (continuous) : 180 W
  • Nominal Amplifier Power HF (peak) : 360 W
  • Input Type : Balanced
  • Input Impeadance : 20 kohms
  • Input Sensitivity : 6.2 V (+18 dBu)
  • Audio Signal Input Connector : 1 x Female XLR
  • Audio Signal Loop Thru Connector : 1 x Male XLR
  • AC Output Connector : powerCON NAC3FCB
  • Current Draw 230 V / 115 V : -/3.0 A
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Trapezoidal
  • Rigging : Captive Rigging System
  • Finish : ISO-flex Paint
  • Color : Black
  • Dimensions ( H x W x D ) : 340 x 650 x 460 mm, 13,4 x 25,6 x 18,1 in
  Net Weight : 23,5 kg ( 51,8 lb )
• Components
  • LF Driver : 10MI4
  • MF Driver : 10MI4
  • HF Driver : M-60
  • Horn/Waveguide : BC-632
• Shipping
  • Carton Dimensions ( H x W x D ) : 740 x 370 x 490 mm, 29,1 x 14,6 x 19,3 in
  • Shipping Weight : 26,0 kg ( 57,3 lb )
