DAS EVENT-208A-115

Description

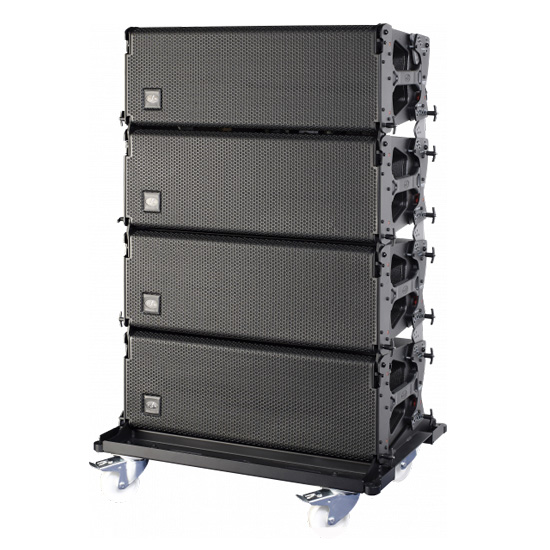

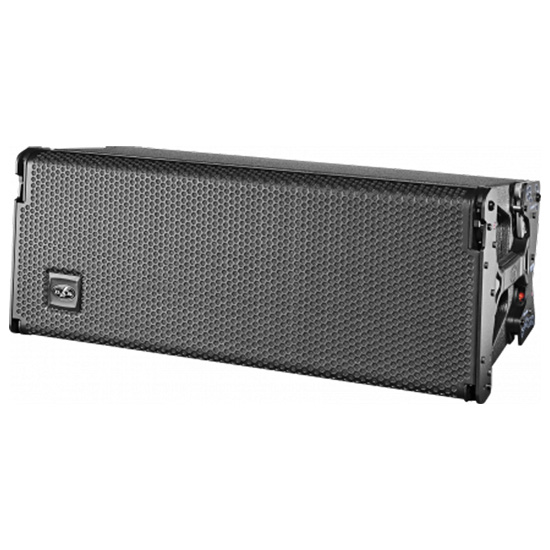

The EVENT-208A Line is a three-way powered line array in a double 8" configuration. The DAS loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

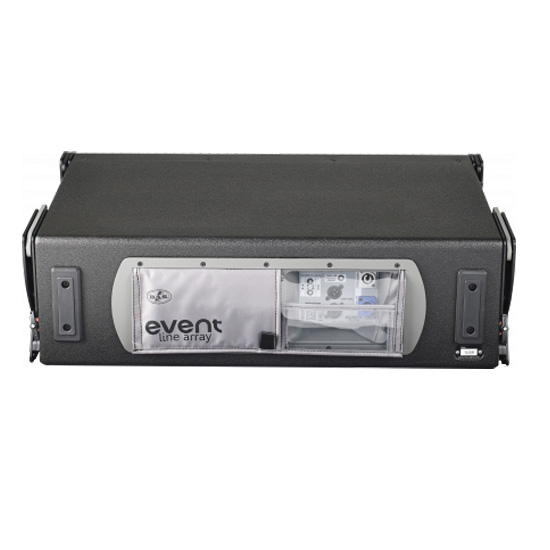

The EVENT-208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp's rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS's Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

Features

• Powered 3-way system
• Light-weight Class D amplifier topology
• High-end DSP chipsets
• Easy-DSP™ Interface
• Quality Neutrik® connectors
• Top grade Birch cabinet construction
• Durable ISO-flex finish

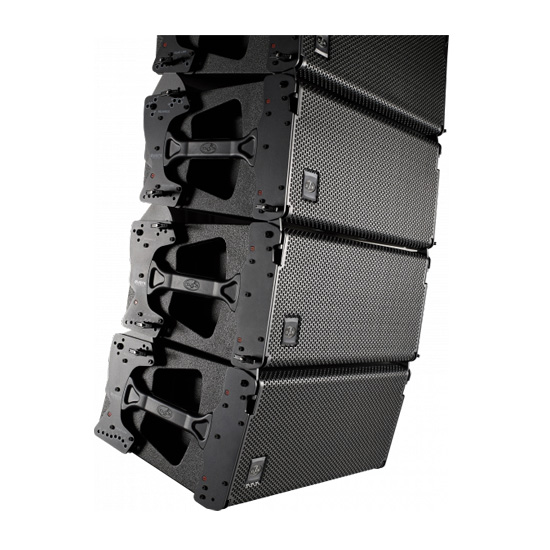

• Robust "quick-rig" professional rigging hardware
• Proprietary injected aluminium HF waveguide
• DAS M-75 compression driver

Applications

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Specifications

• Performance
  • Frequency Range (-10 dB) : 75 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 90°
  • Vertical Coverage : Splay Dependent
  • Maximum Peak SPL at 1 m : 132 dB
• Electronics and Connectors
  • Nominal Amplifier Power LF (continuous) : 180 W
  • Nominal Amplifier Power LF (peak) : 360 W
  • Nominal Amplifier Power MF (continuous) : 180 W
  • Nominal Amplifier Power MF (peak) : 360 W
  • Nominal Amplifier Power HF (continuous) : 180 W
  • Nominal Amplifier Power HF (peak) : 360 W
  • Input Type : Balanced
  • Input Impeadance : 20 kohms
  • Input Sensitivity : 6.2 V (+18 dBu)
  • Audio Signal Input Connector : 1 x Female XLR
  • Audio Signal Loop Thru Connector : 1 x Male XLR
  • AC Output Connector : powerCON NAC3FCB
  • Current Draw 230 V / 115 V : -/2.6 A
  • Certification Number : NRTL US&CA SGSNA/19/SUW/00109
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Trapezoidal
  • Rigging : Captive Rigging System
  • Finish : ISO-flex Paint
  • Color : Black
  • Dimensions ( H x W x D ) : 275 x 675 x 370 mm, 10,8 x 26,6 x 14,6 in
  • Net Weight : 31,0 kg ( 68,3 lb )
• Components
  • LF Driver : 8CM4
  • MF Driver : 8CM4
  • HF Driver : M-75
  • Horn/Waveguide : BPS-90AR
• Shipping
  • Carton Dimensions ( H x W x D ) : 770 x 341 x 431 mm, 30,3 x 13,4 x 17,0 in
  • Shipping Weight : 33,0 kg ( 72,8 lb )
