DAS ALTEA-718A

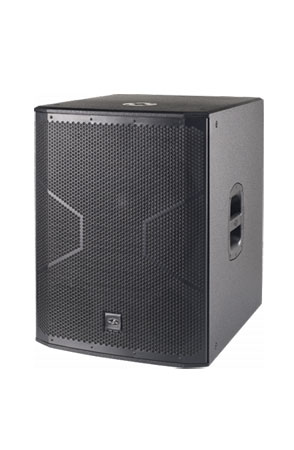

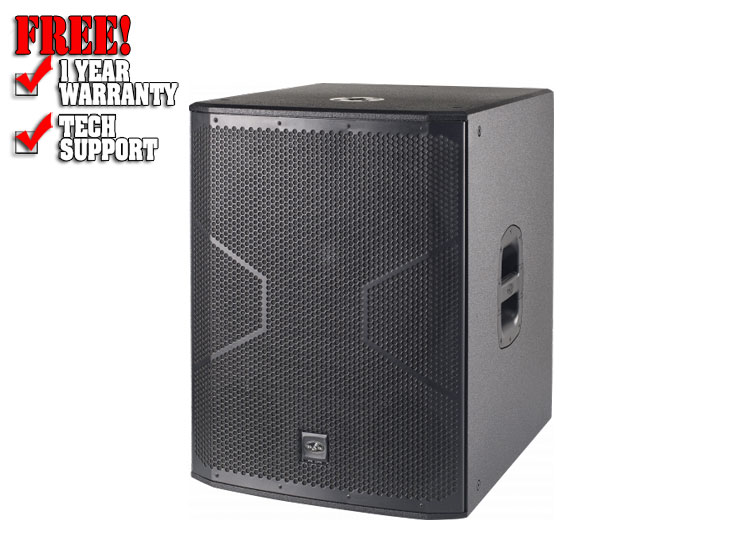

The ALTEA-718A is a powered subwoofer system designed to provide extended bass response for the ALTEA full-range cabinets. At the heart of the system is a DAS 18FW4 bass loudspeaker. This loudspeaker incorporates a FEM optimized high-efficiency speaker design and an extended 3" voice coil for long excursion. Cooling is assured thanks to the 18FW4's vented pole piece and abundant apertures in the speaker's back plate keeping power compression to a minimum while providing high acoustic output over extended periods.

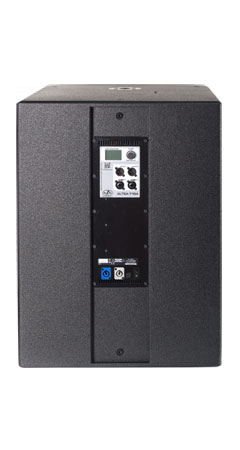

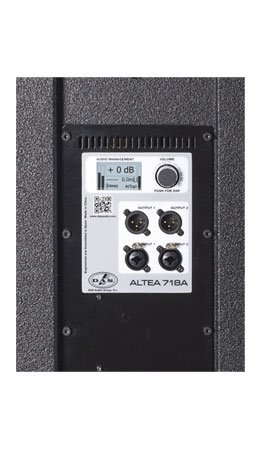

Driving the DAS 18FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel a balanced input connector and stereo "loop thru" output connections are available to provide signal for ALTEA satellite systems. Thanks to the digital presets accessible by way of a DAScontrol™ interface on the rear of the cabinet, setting up a combo system with ALTEA full-range systems is easy. The ALTEA-718 is the passive version for use with external amplification and outboard DSP.

Features

• Powered subwoofer system
• Lightweight Class D amplifier
• High efficiency 18" loudspeaker
• DAScontrol™ for easy setup and adjustment
• 24-bit high-end DSP with LCD screen

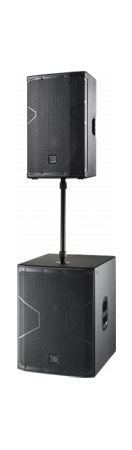

• Integrated rigging points and pole mount socket

Applications

• Concerts and corporate A/V
• Portable and live clubs
• Theaters and auditoriums
• Houses of worship

Technical Information

Performance

• Frequency Range (-10 dB) 45 Hz - 138 Hz
• Maximum Peak SPL at 1 m 134 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 600 W
• Nominal Amplifier Power (peak) 1200 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• Control DAScontrol™
• Current Draw 230 V / 115 V 1.4 A/2.8 A

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Rigging M10 Rigging Points
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D ) 720 x 545 x 650 mm
• 28,4 x 21,5 x 25,6 in
• Net Weight 42,0 kg ( 92,6 lb )

Components

• LF Driver 18FW4

Shipping

• Carton Dimensions ( H x W x D ) 820 x 600 x 700 mm
  32,3 x 23,6 x 27,6 in
• Shipping Weight 46,5 kg ( 102,5 lb )
