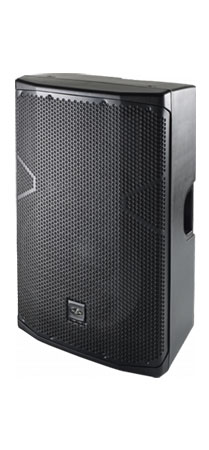

DAS ALTEA-715

The Altea-715 passive system allow users to choose the powering option they prefer and is designed for use with external amplification and outboard DSP. This system benefits from the high-performance transducers include the DAS 15FV4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass.

High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1" exit providing exceptional performance and smooth reproduction.

Features

• 2-way, full range system
• Lightweight multipurpose system 15" FV series bass loudspeaker 1" FEM optimized compression driver

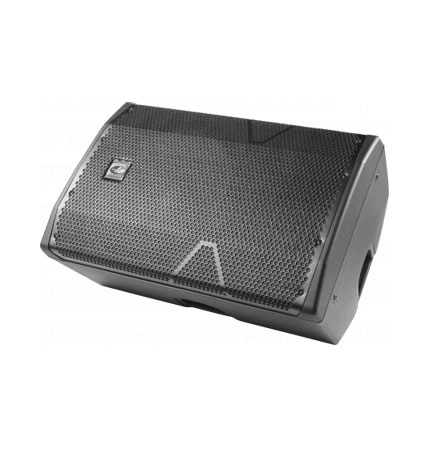

• Enclosure design allows for stage monitor use
• Built-in rigging points

Technical Data

Performance

• Frequency Range (-10 dB) 60 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 60°
• Nominal Impedance 8 ohms
• RMS Power Handling 500 W
• Peak Power Handling 2000 W
• On-axis Sensitivity 1W/1 m 99 dB SPL
• Maximum Peak SPL at 1 m 132 dB
• Recommended Amplifier PA-1500
• Recommended Processor DSP-226

Connectors

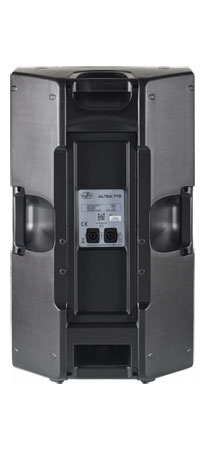

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Polypropylene
• Enclosure Geometry Trapezoidal
• Rigging M8 Rigging Points
• Color Black
• Depth 380 mm (15,0 in)
• Dimensions ( H x W x D ) 710 x 440 x 380 mm
• 28,0 x 17,3 x 15,0 in
• Net Weight 18,8 kg ( 41,4 lb )

Components

• LF Driver 15FV
• HF Driver M-28

Shipping

• Carton Dimensions ( H x W x D ) 805 x 530 x 445 mm
  31,7 x 20,9 x 17,5 in
• Shipping Weight 23,3 kg ( 51,5 lb )
