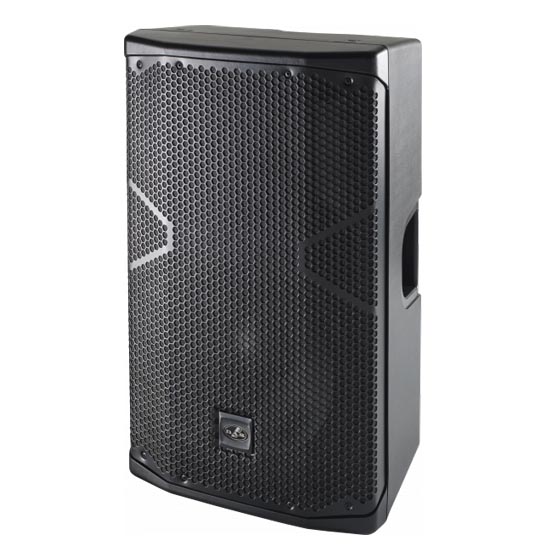

DAS ALTEA-712

The ALTEA-712 passive system allows users to choose the powering option they prefer and is designed for use with external amplification and outboard DSP. This system benefits from the high-performance transducers include the DAS 12F loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass.

High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1? exit providing exceptional performance and smooth reproduction.

Features

• Hi-power passive 2-way system
• 2000 W peak power handling
• 12? loudspeaker + M-28 compression driver
• Wide 90° coverage that fills the room
• Lightweight polypropylene enclosure

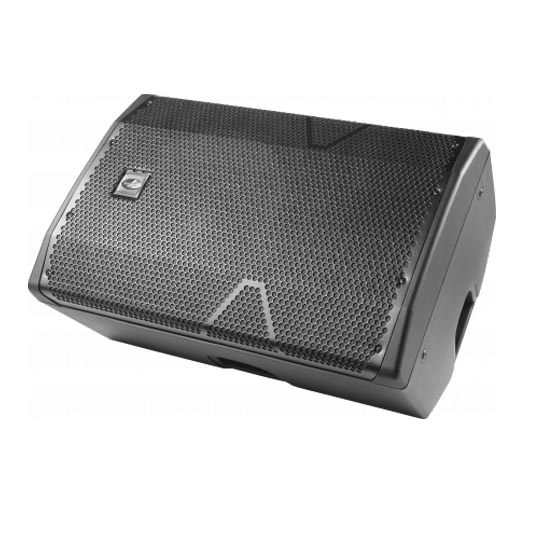

• Ergonomic handles and floor monitor position
• Integrated M8 rigging points

Applications

• Concerts and corporate A/V
• Portable and live clubs
• Concert halls, theaters and auditoriums
• Houses of worship

Specifications

• Performance
  • Frequency Range (-10 dB) : 65 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 90°
  • Vertical Coverage : 60°
  • Nominal Impedance : 8 ohms
  • RMS Power Handling : 500 W
  • Peak Power Handling : 2000 W
  • On-axis Sensitivity 1W/1 m : 98 dB SPL
  • Maximum Peak SPL at 1 m : 131 dB
  • Recommended Amplifier : PA-1500
  • Recommended Processor : DSP-226
• Connectors

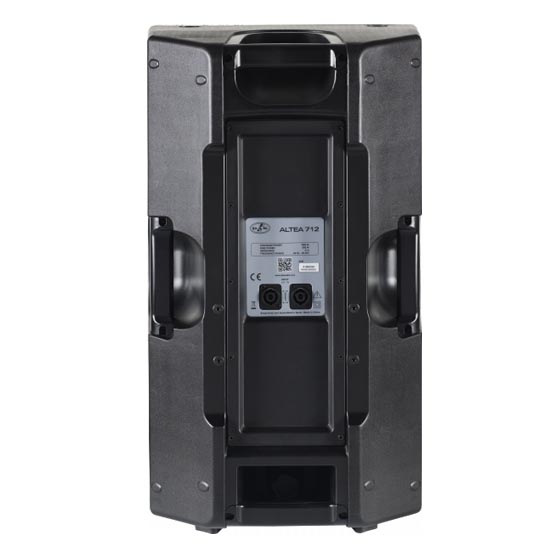

  • Audio Input Connector : 1 x speakON NL4
  • Audio Output Connector : 1 x speakON NL4
• Enclosure
  • Enclosure Construction : Polypropylene
  • Enclosure Geometry : Trapezoidal
  • Rigging : M8 Rigging Points
  • Color : Black
  • Depth : 350 mm (13,8 in)
  • Dimensions ( H x W x D ) : 655 x 380 x 350 mm, 25,8 x 15,0 x 13,8 in
  • Net Weight : 16,5 kg ( 36,4 lb )
• Components
  • LF Driver : 12F
  • HF Driver : M-28
• Shipping
  • Carton Dimensions ( H x W x D ) : 750 x 450 x 415 mm, 29,5 x 17,7 x 16,3 in
  • Shipping Weight : 19,5 kg ( 43,0 lb )
