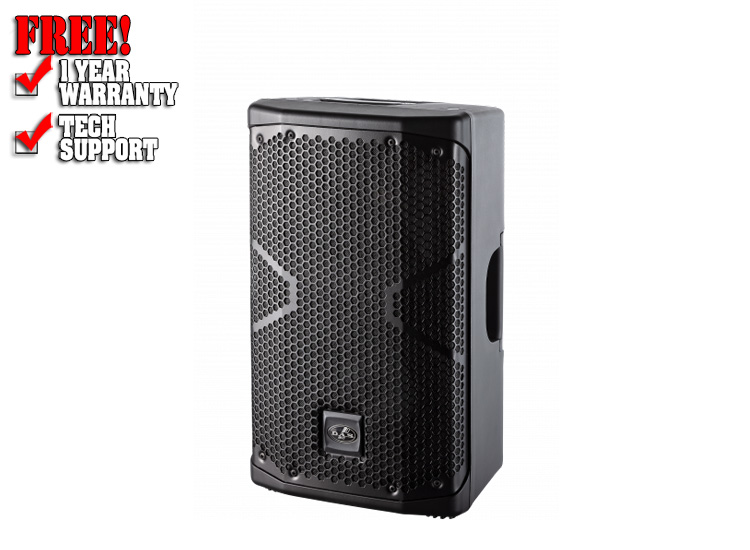

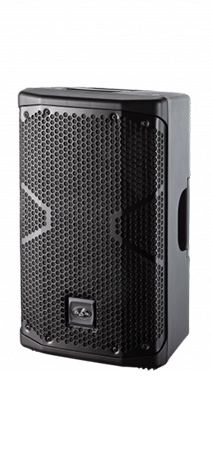

DAS ALTEA-408

ALTEA-408 is a passive system designed to offer exceptional sound quality in a wide variety of applications, from PA in small events, to stage monitor and fixed installations. Altea-408 is capable of reproducing frequencies from 70 Hz to 20 kHz and delivers a maximum SPL of 122 dB, making it an extremely versatile system.

The system features a powerful 8" transducer with 2" voice coil for the reproduction of mid and low frequencies. For the high frequencies, the system features a compression driver with a 1" voice coil, offering exceptional performance. This configuration ensures exceptional clarity and outstanding performance. The diffuser designed to provide a 90° x 90° dispersion guarantees together with the rest of the components a wide and uniform sound dispersion.

ALTEA-408 is made of high-quality polypropylene, making it an extremely rugged and lightweight system, weighing only 9.4 kg (20.7 lb). Equipped with integrated ergonomic handles and M8 rigging points, this system is easy to transport and install, offering a practical and efficient solution for any sound setup.

Technical Information

Performance

• Frequency Range (-10 dB) 70 Hz - 20 kHz
• Horizontal Coverage (-6 dB) 90°
• Vertical Coverage 90°
• RMS Power Handling 150 W
• Peak Power Handling 600 W
• On-axis Sensitivity 1W/1 m 94 dB SPL
• Maximum Peak SPL at 1 m 122 dB
• Recommended Amplifier INTEGRAL-A402
  INTEGRAL-A1002
  INTEGRAL-A1004

Connectors

• Audio Input Connector 1 x speakON NL4
• Audio Output Connector 1 x speakON NL4

Enclosure

• Enclosure Construction Polypropylene
• Enclosure Geometry Trapezoidal
• Rigging M8 Rigging Points
• Color Black
• Depth 260 mm (10,2 in)
• Dimensions ( H x W x D ) 480 x 280 x 260 mm
  18,9 x 11,0 x 10,2 in
• Net Weight 9,4 kg ( 20,7 lb )

Components

• LF Driver 8GV
• HF Driver M-32

Shipping

• Carton Dimensions ( H x W x D ) 550 x 350 x 340 mm
  21,6 x 13,8 x 13,4 in
• Shipping Weight 11,3 kg ( 24,9 lb )

Features

• 2-way, full range system
• 8" bass loudspeaker
• 1" compression driver
• Angled enclosure design for stage monitor use
• Built-in rigging points
• Stand mountable

Applications

• Concerts and corporate A/V
• Portable and live clubs
• Concert halls, theaters and auditoriums
• Houses of worship
