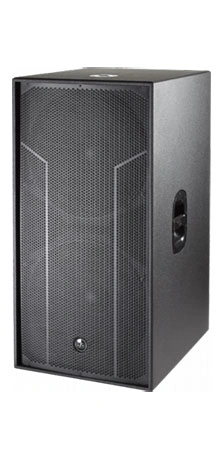

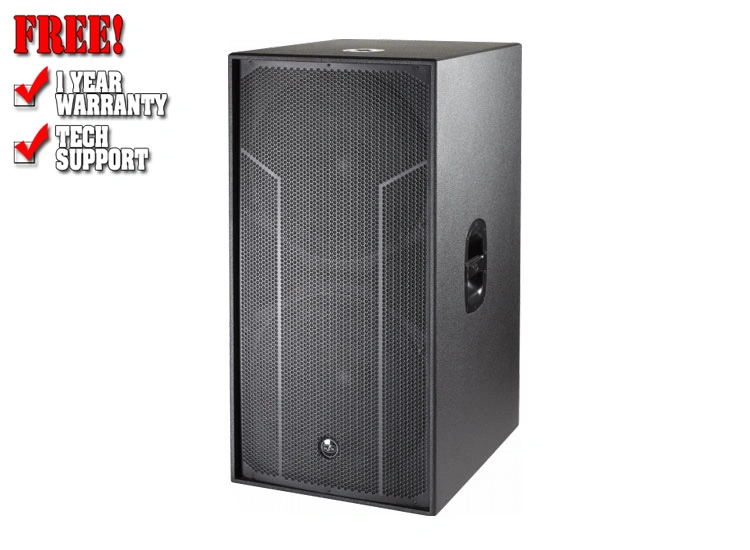

DAS ACTION-S218A-115

ACTION-S218A is a high-power active subwoofer system that incorporates a 3200 Wpeak amplifier and two 18FW4 speakers with a 3" coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

Features

• Active subwoofer system
• 3200 Wpeak Class D amplifier
• Birch plywood enclosure
• Durable ISO-flex paint

Technical Data

Performance

• Frequency Range (-10 dB) 35 Hz -125 Hz (variable LPF)
• Maximum Peak SPL at 1 m 140 dB

Electronics and Connectors

• Nominal Amplifier Power (continuous) 1600 W
• Nominal Amplifier Power (peak) 3200 W
• Input Type Balanced
• Input Impeadance 20 kohms
• Input Sensitivity 1.95 V (+8 dBu)
• Audio Signal Input Connector 2 x Female XLR
• Audio Signal Loop Thru Connector 2 x Male XLR
• AC Output Connector powerCON NAC3MPB

Enclosure

• Enclosure Construction Birch Plywood
• Enclosure Geometry Rectangular
• Finish ISO-flex Paint
• Color Black
• Dimensions ( H x W x D ) 1.070 x 545 x 675 mm
• 42,1 x 21,5 x 26,6 in
• Net Weight 60,5 kg ( 133,4 lb )

Components

• LF Driver 18FW4

Shipping

• Carton Dimensions ( H x W x D ) 1.145 x 595 x 722 mm
• 45,1 x 23,4 x 28,4 in
• Shipping Weight 65,0 kg ( 143,3 lb )
