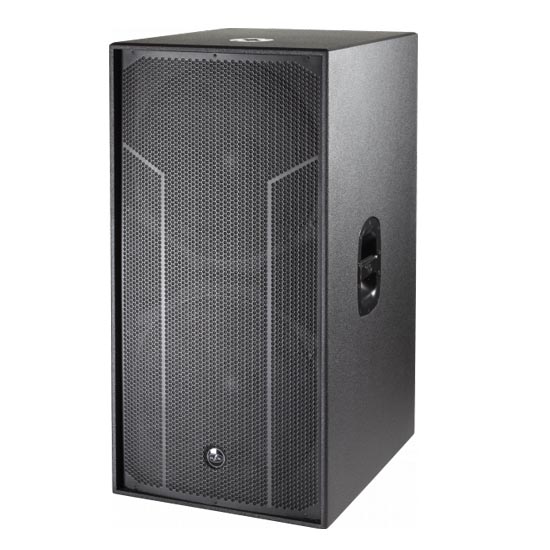

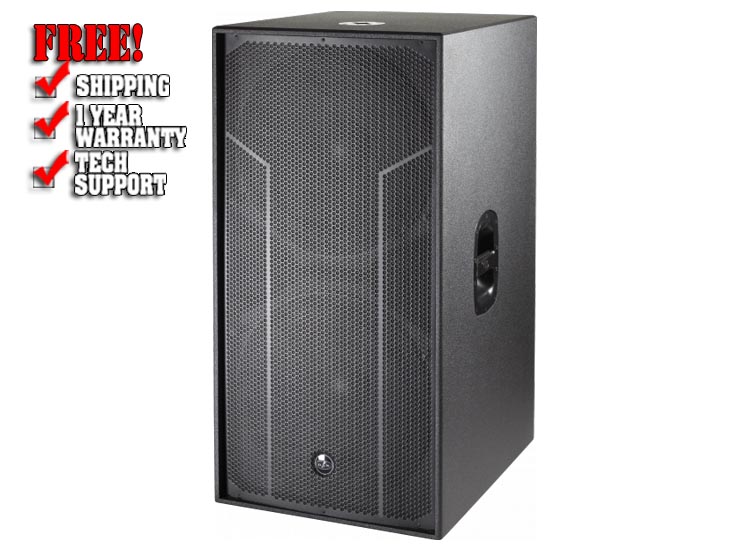

DAS ACTION-S218

ACTION-S218 is a passive direct radiation subwoofer system composed of a single 18FW speaker with a 3" coil and 20 mm winding depth, double layer and sandwich to boost system power, as well as a new forced convection circuit that works to reduce the effects of coil heating, improving the system's overall performance as a result.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Features

• Passive subwoofer system
• Birch plywood enclosure
• Durable ISO-flex paint
• Recommended processor: DSP-226
• Recommended amplifier: PA series

Applications

• Live sound reinforcement
• Speech and vocals
• Music playback in entertainment
• A/V, and institutional venues

Specifications

• Performance
  • Frequency Range (-10 dB) : 29 Hz - 160 Hz
  • Nominal Impedance : 4 ohms
  • RMS Power Handling : 1200 W
  • Peak Power Handling : 4800 W
  • On-axis Sensitivity 1W/1 m : 99 dB SPL
  • Maximum Peak SPL at 1 m : 139 dB
  • Recommended Amplifier : PA-2700
  • Recommended Processor : DSP-226
• Connectors

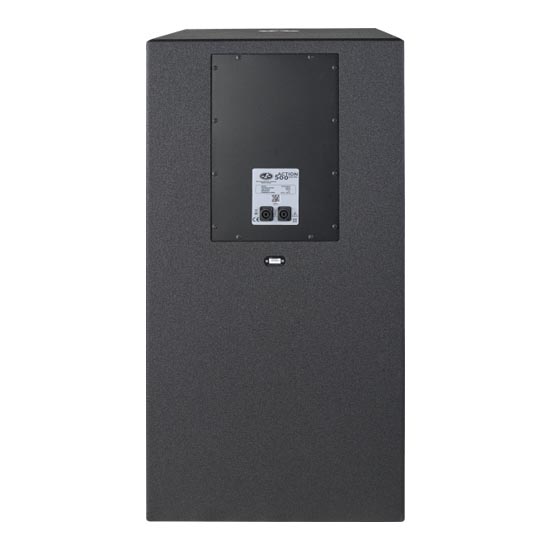

  • Audio Input Connector : 1 x speakON NL4
  • Audio Output Connector : 1 x speakON NL4
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Rectangular
  • Finish : ISO-flex Paint
  • Color : Black
  • Depth : 675 mm (26,6 in)
  • Dimensions ( H x W x D ) : 1.070 x 545 x 675 mm
  • 42,1 x 21,5 x 26,6 in
  • Net Weight : 61,0 kg ( 134,2 lb )
• Components
  • LF Driver : 18FW
• Shipping
  • Shipping Weight : 64,0 kg ( 140,8 lb )
