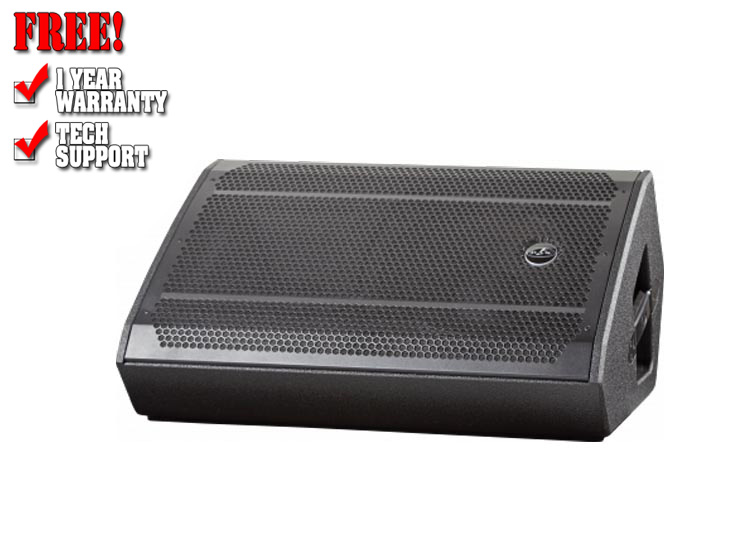

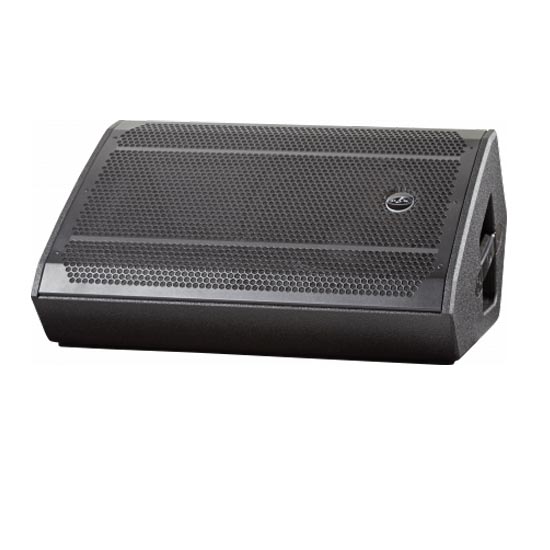

DAS ACTION-M512

ACTION-M512 is a passive stage monitor designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 80° x 50° dispersion means the enclosure can also be used as a PA system.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, nautral warm sound found nowhere else on the market.

For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Features

• Passive two-way stage monitor
• Birch plywood enclosure
• Durable ISO-flex paint
• Recommended processor: DSP-226
• Recommended amplifier: PA series

Applications

• Live sound reinforcement
• Bands, DJ's and performers
• Speech and vocals
• Music playback in entertainment
• A/V, conferences and presentations

Specifications

• Performance
  • Frequency Range (-10 dB) : 63 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 80°
  • Vertical Coverage : 50°
  • Nominal Impedance : 8 ohms
  • RMS Power Handling : 300 W
  • Peak Power Handling : 1200 W
  • On-axis Sensitivity 1W/1 m : 95 dB SPL
  • Maximum Peak SPL at 1 m : 130 dB
  • Recommended Amplifier : PA-1500
  • Recommended Processor : DSP-226

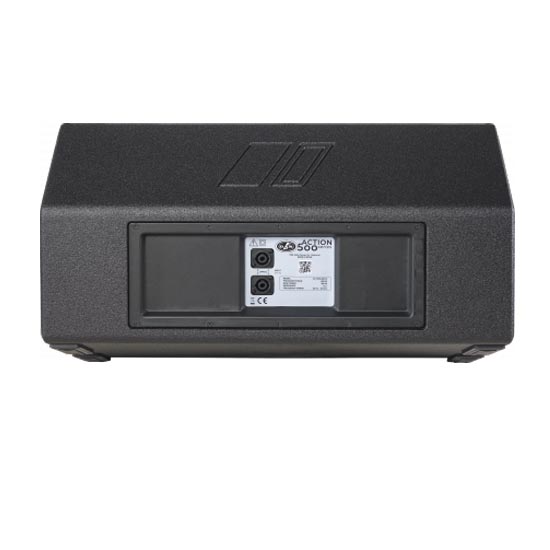

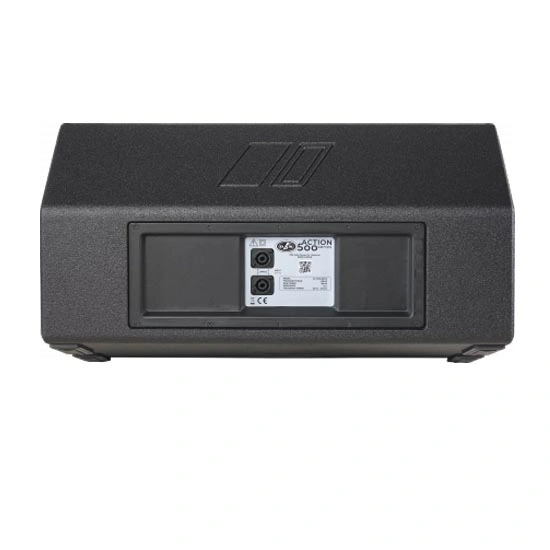

• Connectors
  • Audio Input Connector : 1 x speakON NL4
  • Audio Output Connector : 1 x speakON NL4
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Trapezoidal
  • Finish : ISO-flex Paint
  • Color : Black
  • Depth : 450 mm (17,7 in)
  • Dimensions ( H x W x D ) : 335 x 650 x 450 mm
  • 13,2 x 25,6 x 17,7 in
  • Net Weight : 17,5 kg ( 38,5 lb )
• Components
  • LF Driver : 12MI
  • HF Driver : M-34
  • Horn/Waveguide : BC-85
• Shipping
  • Carton Dimensions ( H x W x D ) : 383 x 747 x 503 mm, 15,1 x 29,4 x 19,8 in
  • Shipping Weight : 18,6 kg ( 40,9 lb )
