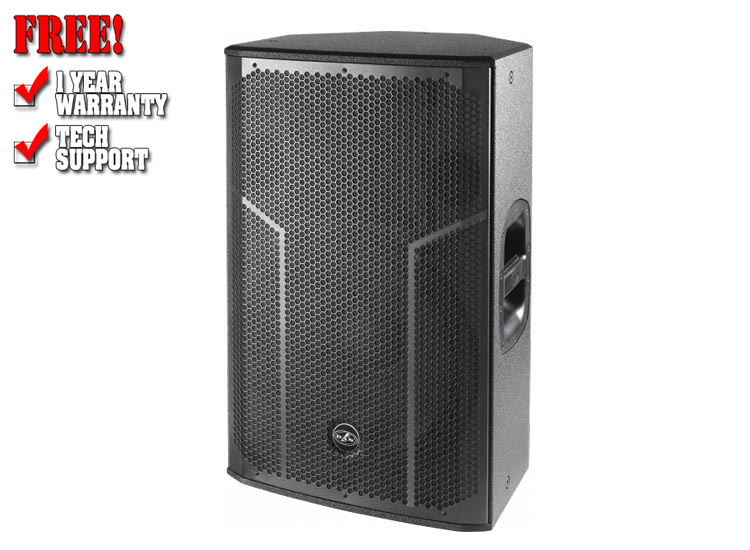

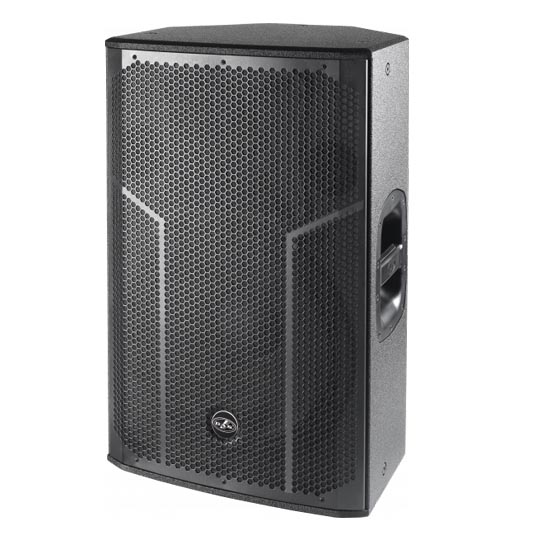

DAS ACTION-515

ACTION-515 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90° x 60° dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Features

• Passive two-way system
• Birch plywood enclosure
• Durable ISO-flex paint
• Recommended processor: DSP-226
• Recommended amplifier: PA series

Applications

• Live sound reinforcement
• Bands, DJ's and performers
• Speech and vocals
• Music playback in entertainment
• A/V, conferences and presentations

Specifications

• Performance
  • Frequency Range (-10 dB) : 47 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 90°
  • Vertical Coverage : 60°
  • Nominal Impedance : 8 ohms
  • RMS Power Handling : 350 W
  • Peak Power Handling : 1400 W
  • On-axis Sensitivity 1W/1 m : 96 dB SPL
  • Maximum Peak SPL at 1 m : 131 dB
  • Recommended Amplifier : PA-1500
  • Recommended Processor : DSP-226

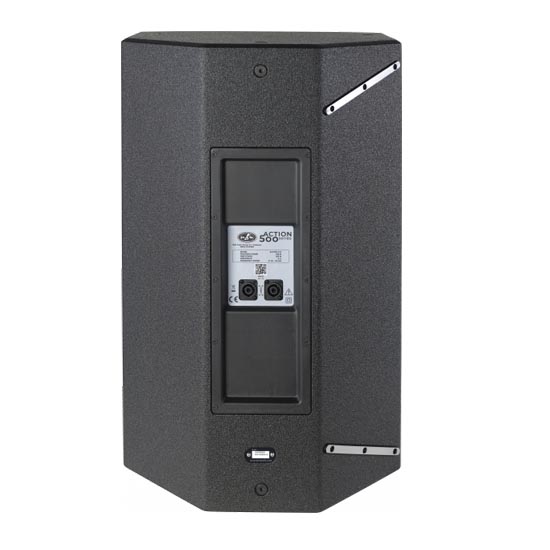

• Connectors
  • Audio Input Connector : 1 x speakON NL4
  • Audio Output Connector : 1 x speakON NL4
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Trapezoidal
  • Rigging : M10 Rigging Points
  • Finish : ISO-flex Paint
  • Color : Black
  • Depth : 385 mm (15,2 in)
  • Dimensions ( H x W x D ) : 720 x 445 x 385 mm, 28,3 x 17,5 x 15,2 in
  • Net Weight : 22,0 kg ( 50,2 lb )
• Components
  • LF Driver : 15MI
  • HF Driver : M-34
  • Horn/Waveguide : BC-916
• Shipping
  • Carton Dimensions ( H x W x D ) : 785 x 430 x 505 mm,30,9 x 16,9 x 19,9 in
  • Shipping Weight : 24,5 kg ( 54,0 lb )
