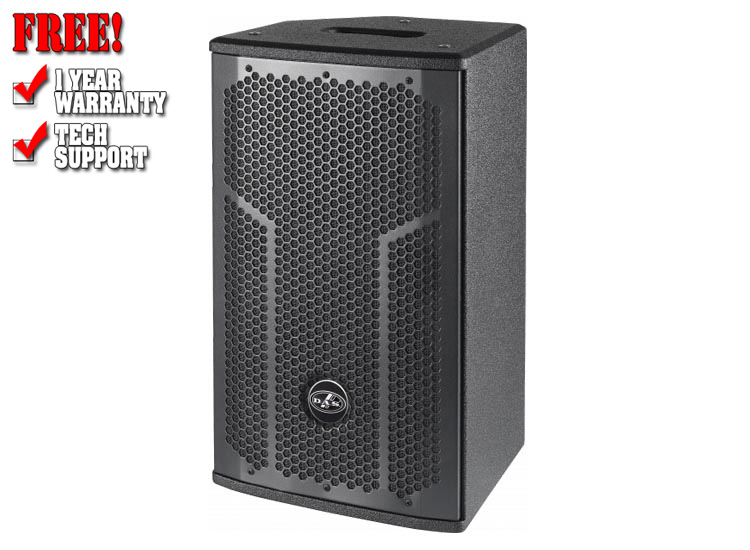

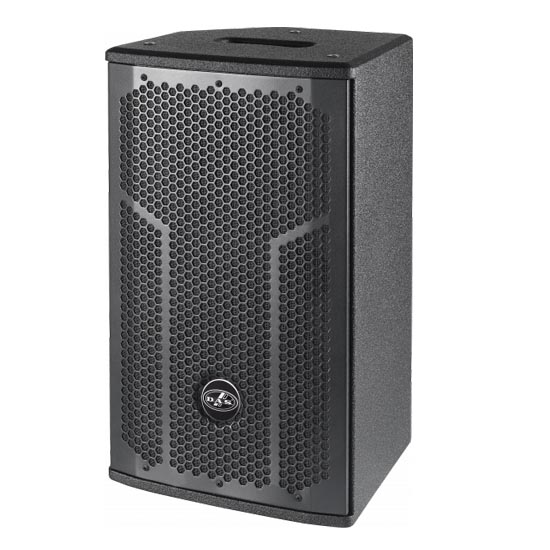

DAS ACTION-508

An unparalleled choice when compact size and weight matter, ACTION-508 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. And its rotatable horn with 90° x 60° dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.

The new 8GV speaker has 150W of power and enhanced excursion capacity for much lower distortion coupled with a higher SPL.

As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.

For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Features

• Passive two-way system
• Birch plywood enclosure
• Durable ISO-flex paint
• Recommended processor: DSP-226
• Recommended amplifier: PA series

Applications

• Live sound reinforcement
• Bands, DJ's and performers
• Speech and vocals
• Music playback in entertainment
• A/V, conferences and presentations

Specifications

• Performance
  • Frequency Range (-10 dB) : 60 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 90°
  • Vertical Coverage : 60°
  • Nominal Impedance : 8 ohms
  • RMS Power Handling : 150 W
  • Peak Power Handling : 600 W
  • On-axis Sensitivity 1W/1 m : 94 dB SPL
  • Maximum Peak SPL at 1 m : 124 dB
  • Recommended Amplifier : PA-500
  • Recommended Processor : DSP-226

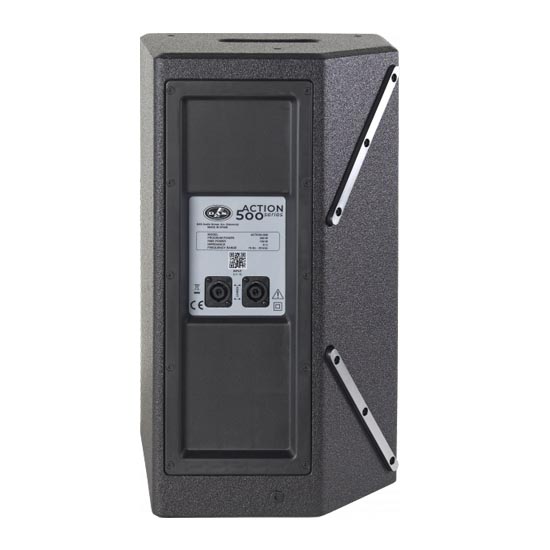

• Connectors
  • Audio Input Connector : 1 x speakON NL4
  • Audio Output Connector : 1 x speakON NL4
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Trapezoidal
  • Rigging : M8 Rigging Points
  • Finish : ISO-flex Paint
  • Color : Black
  • Depth : 260 mm (10,2 in)
  • Dimensions ( H x W x D ) : 485 x 285 x 260 mm
  • 19,1 x 11,2 x 10,2 in
  • Net Weight : 10,5 kg ( 23,1 lb )
• Components
  • LF Driver : 8GV
  • HF Driver : M-34
  • Horn/Waveguide : BCT-96
• Shipping
  • Carton Dimensions ( H x W x D ) : 547 x 335 x 307 mm,21,5 x 13,2 x 12,1 in
  • Shipping Weight : 11,5 kg ( 25,3 lb )
