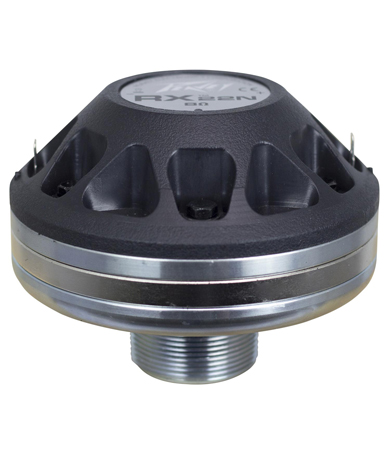

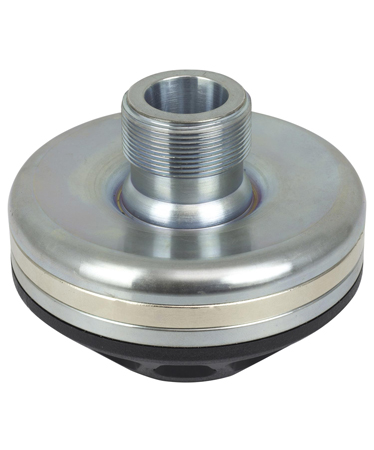

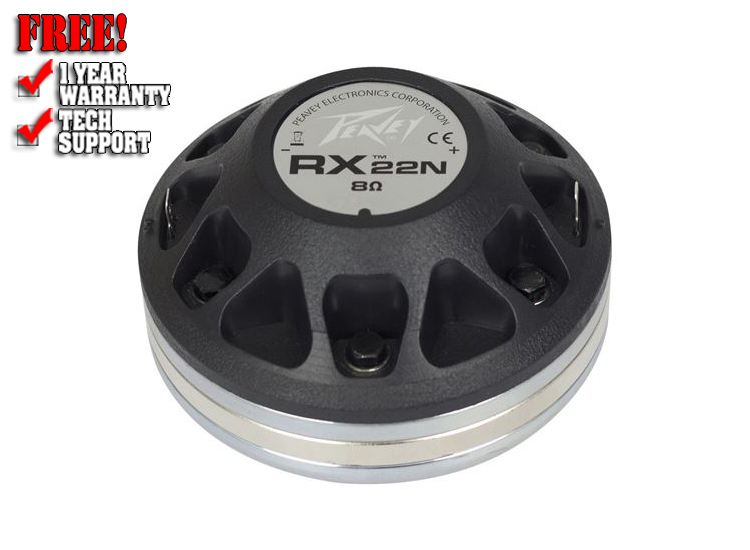

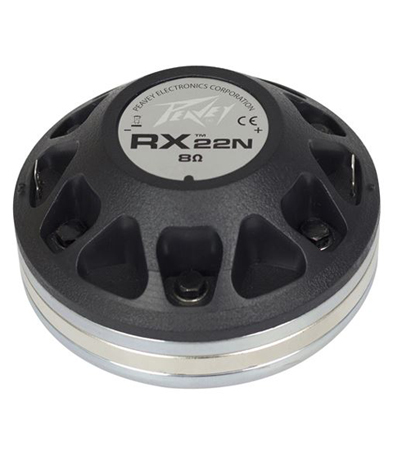

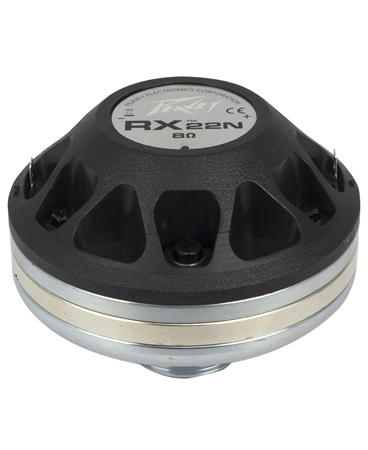

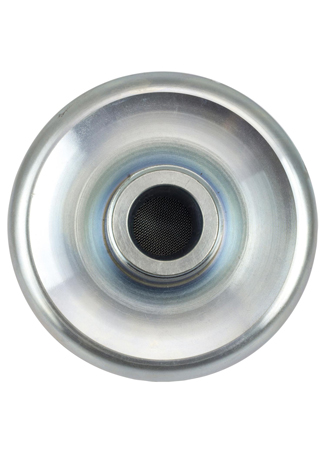

Peavey RX™ 22N Neo HF Driver

• 2"
• Throat Parameter: 0.875" / 22 mm
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 5.2 Ohms
• DC Resistance: 5.1 Ohms
• Power Capacity 1000 Hz to 20,000 Hz: 280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
• Sensitivity: 111 dB / 1W 1m On-axis on 90° H x 45° V horn
• Nominal Efficiency: 30%
• Frequency Response: 500 Hz to 20,000 Hz
• Recommended Crossover: 1,200 Hz at 12 dB / Octave
• Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
• Diaphragm: Commercially pure titanium
• Voice Coil Diameter: 2.0" / 50.8 mm
• Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
• Voice Coil Cooling: Ferrofluid
• Flux Density: 20,500 gauss (2T)
• Dimensions: 3.858" (98 mm) diameter x 3.01" (76.4 mm) depth
• Horn Coupling Diameter: 7/8" (22.2 mm)
• Horn Coupling Threads: Standard 1 3/8" - 18"
• Net Weight: 2 lbs. 12 oz.
• Shipping Weight: 3 lbs. 11.5 oz.
• Diaphragm Kit: 03617300
• Weight Packed: 2.98 lb(1.35 kg)
• Width Packed: 4.5"(11.43 cm)
• Height Packed: 4.725"(12.0015 cm)
• Depth Packed: 3.55"(9.017 cm)
