Peavey Pro15 Subwoofer Speaker Low Frequency Driver Pro 15 8 Ohm Replacement

Peavey Pro 15 Subwoofer Low Frequency 15" Speaker

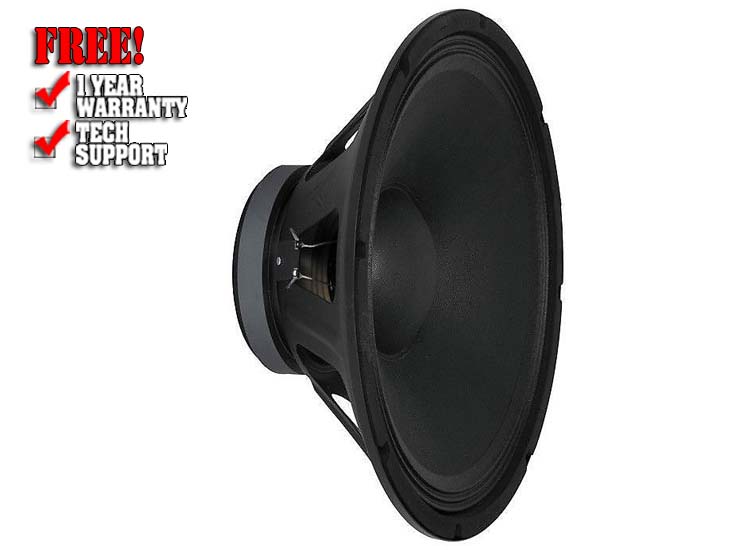

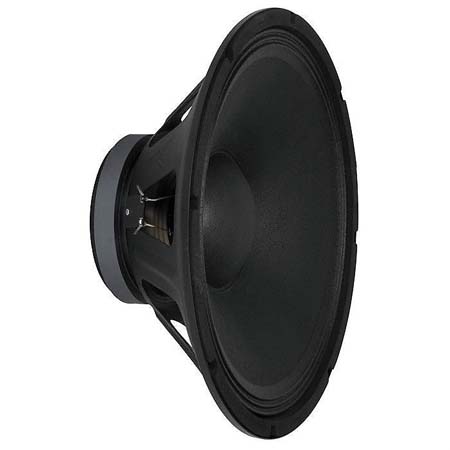

This is a brand new genuine Peavey Pro 15 Subwoofer Low Frequency 15" Speaker.

Peavey's Pro Audio replacement speakers are great for getting your Professional cabinet and DJ speakers up and running again, at an economical price. Kevlar® reinforced paper cones, Kapton formers with Nomex® stiffeners, and stamped steel frames increase durability without affecting sensitivity (for high output), or power handling. Peavey Pro Audio replacement drivers work well in ported or sealed cabinets.

PRODUCT SPECIFICATIONS

Power Handling (RMS) 200 Watts Power Handling (max) 800 Watts Impedance 8 ohms Frequency Response 40 to 3,000 Hz Sensitivity 96.4 dB 1W/1m Voice Coil Diameter 2.5"

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs) 34.4 Hz DC Resistance (Re) 6.0 ohms Voice Coil Inductance (Le) 0.74 mH Mechanical Q (Qms) 3.58 Electromagnetic Q (Qes) 0.48 Total Q (Qts) 0.43 Compliance Equivalent Volume (Vas) 11.71 ft.³ Mechanical Compliance of Suspension (Cms) 0.32 mm/N BL Product (BL) 13.35 Tm Diaphragm Mass Inc. Airload (Mms) 66.5g Maximum Linear Excursion (Xmax) 2.5 mm Surface Area of Cone (Sd) 855 cm²

MATERIALS OF CONSTRUCTION

Cone Material Paper / Kevlar Voice Coil Former Kapton® / Polyimide Basket / Frame Material Steel Magnet Material Ferrite

MOUNTING INFORMATION

Overall Outside Diameter 15.00" Baffle Cutout Diameter 14.00" Depth 6.50" # Mounting Holes 8

Peavey Pro 15 Low Frequency 15" Speaker Driver

Brand Peavey Model Pro 15

Part Number 294-3122

UPC 014367106428

Weight 14.1500
