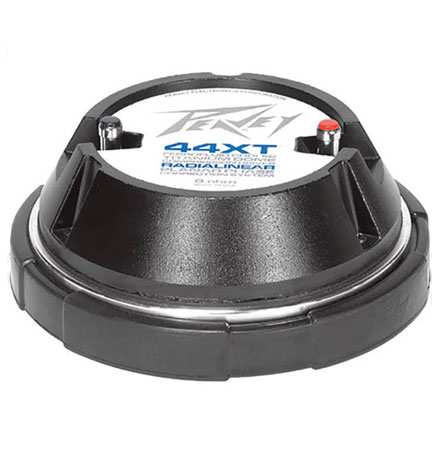

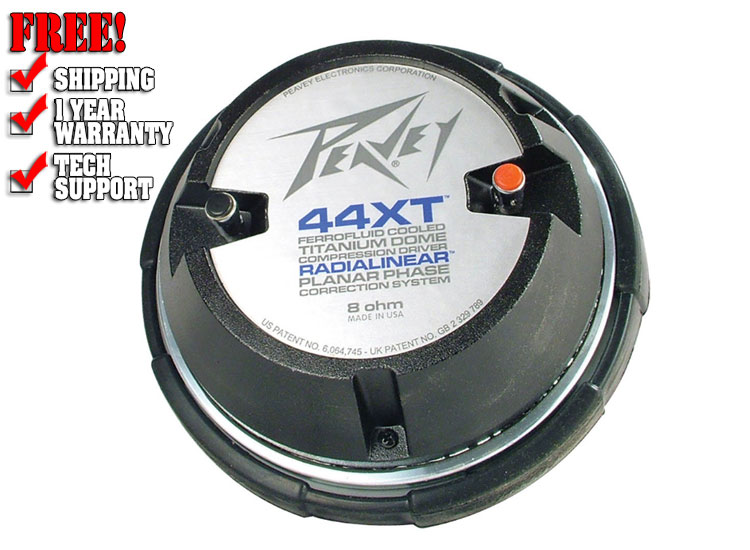

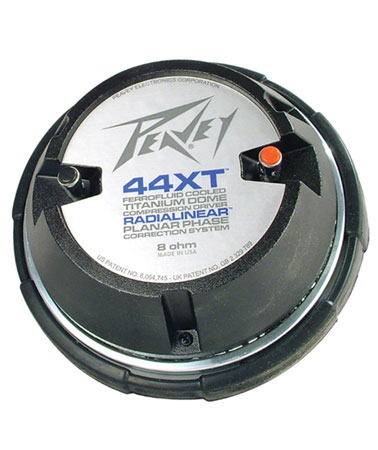

Peavey 44XT Titanium Compression Driver with Adapter

44XT™ w/ adapter Driver

• 4"
• Throat Parameter: Standard: 2" / 50.8 mm
• Optional: 1.6" / 40.6 mm Supplied with throat extension
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 7.1 Ohms
• DC Resistance: 6.8 Ohms
• Power Capacity 1000 Hz to 20,000 Hz: 400 W peak 200 W program 100 W continuous using pink noise band limited from 1,000 Hz to 20 kHz (AES 2-1984)
• Power Capacity 500 Hz to 20,000 Hz: 320 W peak 160 W program 80 W continuous
• Sensitivity: 111 dB SPL 1 Watt at 1 meter On-axis on a 80° H x 40° V horn
• Nominal Efficiency: 30%
• Frequency Response: 500 Hz to 20,000 Hz
• Recommended Crossover: 1,000 Hz
• Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
• Diaphragm: Commercially pure titanium
• Voice Coil Diameter: 4" / 101 mm
• Voice Coil Material: Edge-wound aluminum ribbon with a composite bobbin
• Flux Density: 19,000 gauss (1.9T)
• Dimensions: Standard: 8.388" (213 mm)D x 6.05: (154 mm) H
• Net Weight: Standard: 21 lbs. / 9.5 kg
