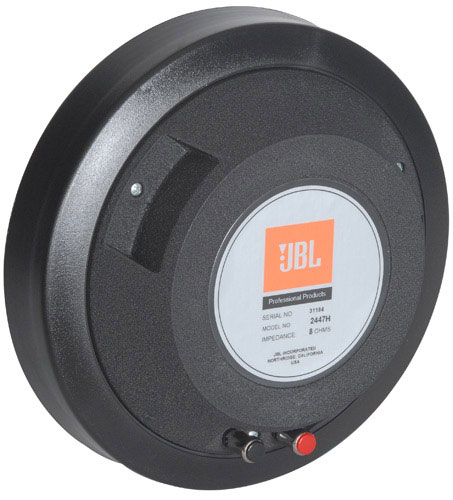

JBL 2447H Compression Driver

Description

The 2447H features a ferrite (ceramic) magnet structure.
The Model 2447H is a 38 mm (1½) exit diameter addition to JBL’s family of professional quality compression drivers. The 38 mm exit allows the Coherent Wave™ phasing plug to directly couple with Optimized Aperture™ Bi-Radial® horns to provide lower distortion and better coverage control to 20 kHz than previous designs. In addition to improving performance the 38 mm design also reduces size and weight.
The Coherent Wave™ phasing plug structure has four equal length passages to provide in-phase summation of diaphragm output at the 38 mm exit. This optimized configuration produces coherent acoustical power up to much higher frequencies than more conventional designs.
The diaphragm design includes JBL’s exclusive three-dimensional diamond pattern surround¹ tuned to reduce fatigue inducing stresses in the membrane and support structure. This provides predictable normal resonance modes, and radial reinforcing ribs increase diaphragm stiffness. This diaphragm design combined with the Coherent Wave™ phasing plug increases the 2447’s output in the 5 kHz to 20 kHz range.

• 100 watts continuous program power handling when used above 500 Hz
• 150 watts continuous program power handling when used above 1 kHz
• 500 Hz to 20 kHz response
• 8 ohm (H)
• 4" Ribbed Titanium Diaphragm
• Ceramic Magnet
• 112 dB sensitivity (1W/1m on 2352 horn)
• Coherent Wave™ phasing plug design for increased high-frequency output
• 100 mm (4 in) pure titanium diaphragm with radial-rib topology
• 100 mm (4 in) edgewound aluminum voice coil
• Net weight: 10.7 kg (23.5 lb)
