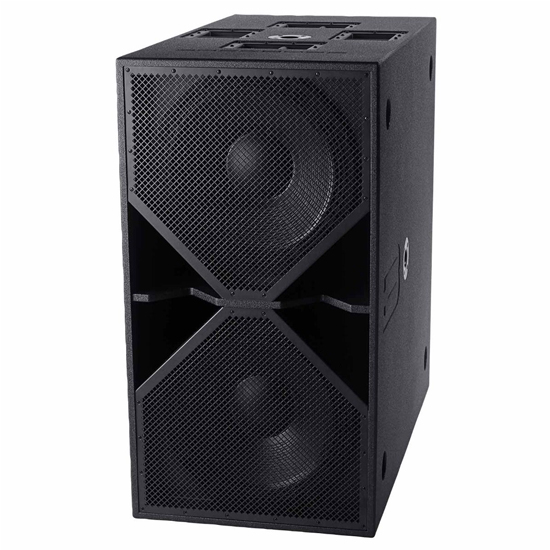

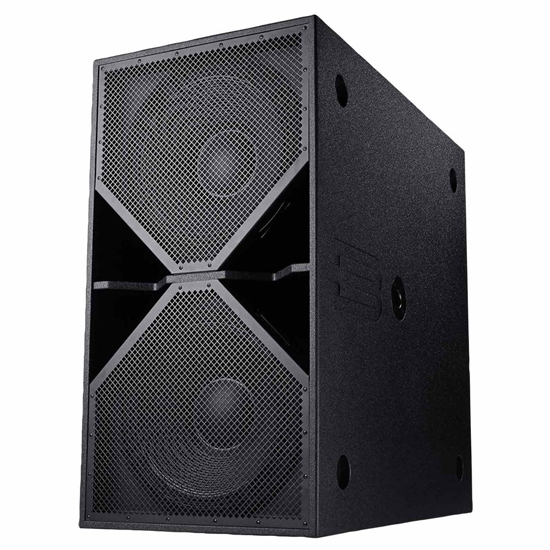

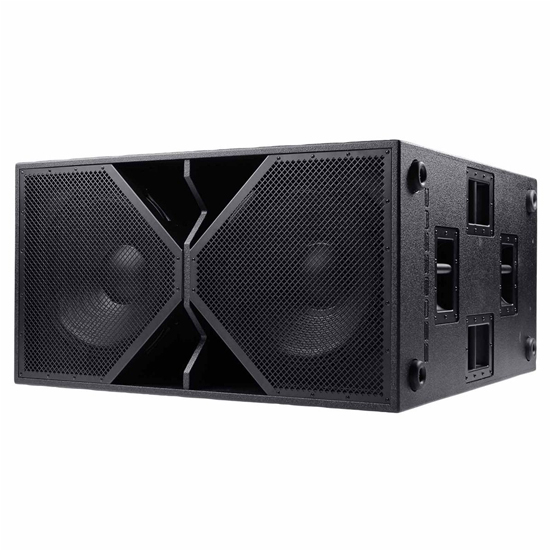

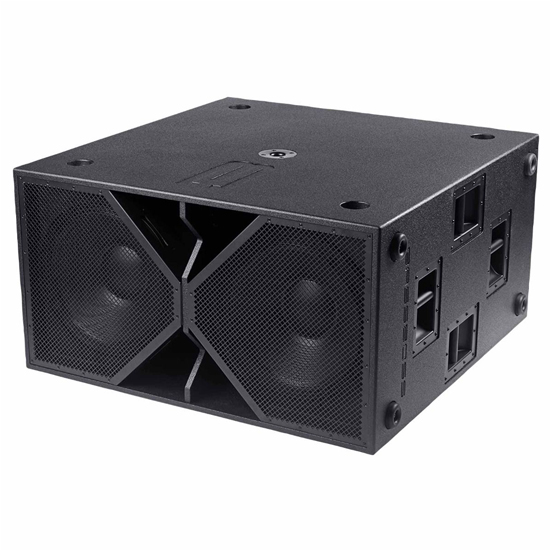

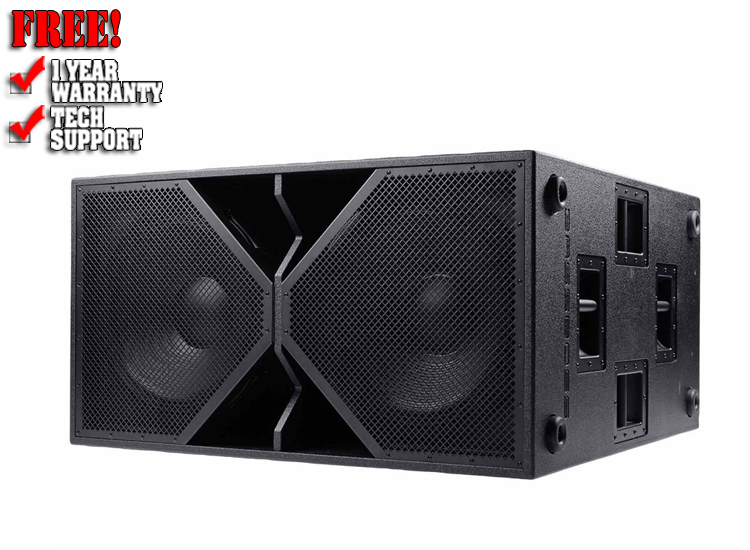

BASSBOSS ZV28-MK3 Dual 18" Powered Active Subwoofer

The BASSBOSS ZV28-MK3 Subwoofer is designed to bring you up close and personal with the boundaries of audible sound. Reveal notes unfathomable with other subwoofers, delivered effortlessly. Frequencies that push other systems to their limits are brought to life powerfully and smoothly. The ZV28-MK3 isn't just about hearing; it's about feeling the power of the music.The ZV28-MK3 is a vented, direct radiating subwoofer with a substantial internal volume, tuned to a low frequency. Advanced design features such as anti-standing wave baffles and pass-through dampers help reduce upper resonances while oversized ports enhance low frequency performance at high output. The ZV28-MK3 is built to run at full throttle. The woofers are kept within safe thermal and excursion limits throughout their operating range regardless of input level. The design guarantees a consistently flat frequency response, with a pair delivering -3dB to an impressive 21 Hz. This performance is achieved without any need for equalization, and is available on demand at high levels in real-world scenarios.

Unlike other subs that may promise much but deliver little, the ZV28-MK3 actually performs as impressively in the field as it seems to on paper. Be cautious of loudspeaker systems that rely on bass-boost processing to meet their claimed frequency response, as they can often fall short when it comes to delivering quality sound at maximum power.The ZV28-MK3 features a 5000W amplifier with an auto-sensing, globally compatible power supply that can run on input voltages anywhere between 90 and 250 Volts. Full output power is available on anything over 110V. The amplifier's peak-output voltage provides for intense high SPL hits while its sustained output is unparalleled in its ability to deliver the liquid lows. The amplifier is passively cooled via its external heat-sink and by woofer-generated air-flow through the port. When necessary, four blower-fans will engage to provide additional forced-air cooling capacity in more extreme conditions.

Features:

• ZV28-MK3 Dual 18" Powered Sub
• So smooth, so deep, so beautiful. BASS like you've never experienced it.
• The ZV28-MK3 delivers depth that most people have never heard, and it does so seemingly effortlessly.
• The result is a full, rich sound that immediately resets expectations of what music can sound and feel like, both physically and emotionally.
• The ZV28-MK3 Subwoofer opens the doors to new experiences.
• Does your music contain deep bass that demands to be heard?
• Would you like to introduce audiences to new experiences of the deepest frequencies?
• Experiences they can't have anywhere else? This is the sub.
• The ZV28-MK3 Sub will bring your audience up close and personal with the boundaries of audible sound.
• You will reveal notes unfathomable with other subwoofers, delivered unmistakably large and full.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: Double 18" Self-Powered Vented Direct-Radiating Extended-depth Subwoofer
• Frequency Response (±3 dB): 23 – 90Hz
• Maximum Sustained Output: 134dB
• Max SPL (Peak)*: 137dB
• Nominal Dispersion (H° x V°): 360 x 360 - Cardioid mode available with multiple cabinets
• Amplification: 5000 Watts Class D (2 x 2500W)
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 9 Amps (Nominal)
• Current Draw 240V: 4.5 Amps (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: Direct radiating vented enclosure, optimally tuned for extended low frequency response with linear output and high power handling
• Transducer Low Frequency: 2 x 18" (457mm) neodymium motor woofers with 4.5 in. (115mm) CCAW voice coils
• Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 8 steel bar handles. 2 x 35mm steel pole sockets. 12 rubber feet. 4 interlocking foot pockets. 16 X M10 threaded flypoints
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 22.5 in. x 42 in. x 42 in. (Height of feet 7/8")
• Net Weight: 235 lbs. (106.5 kg)
• Shipping Weight: 265 lbs. (120.2 kg)
• What's Included: Loudspeaker, manual, and power cable
• Optional Covers: Heavy-duty padded nylon transport covers for vertical or horizontal transport
• Optional Dollies: Version V: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports 1 cabinet. Version H: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports up to 4 cabinets.
• Optional Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS ZV28-MK3 Dual 18" Powered Active Subwoofer
• (1) Power Cable
• (1) Manual
