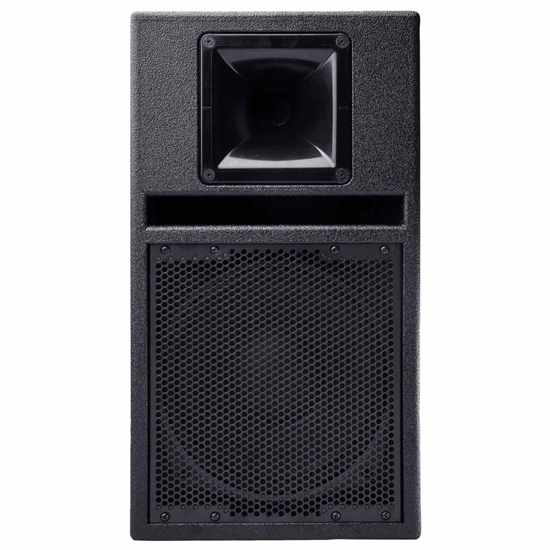

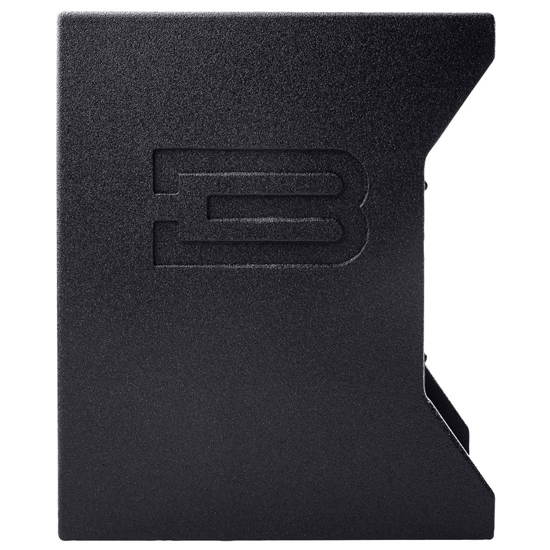

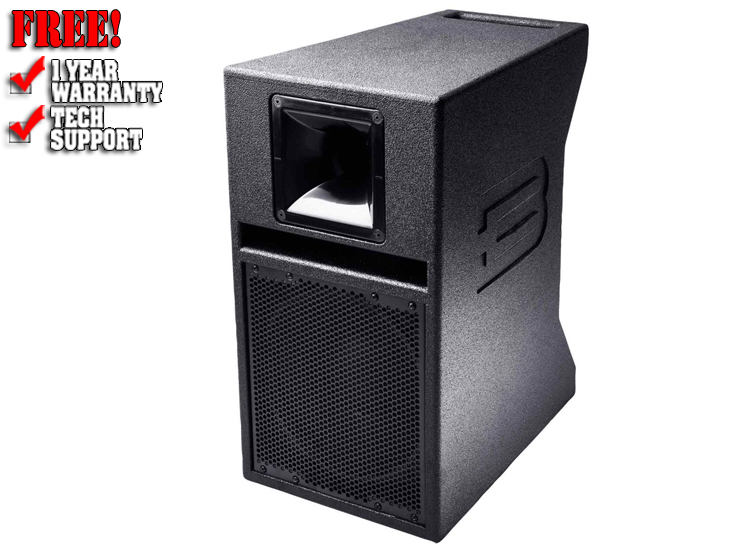

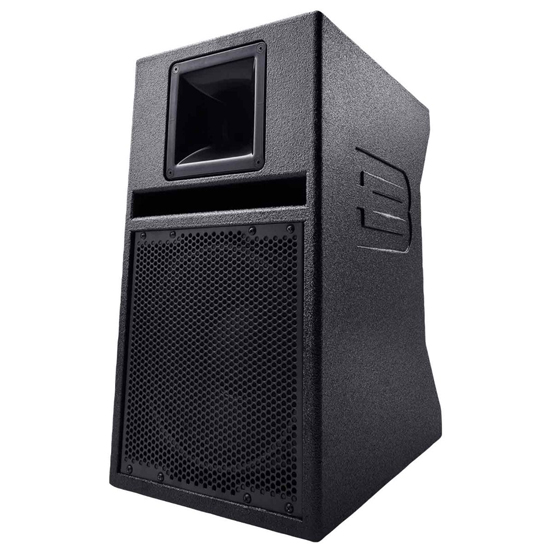

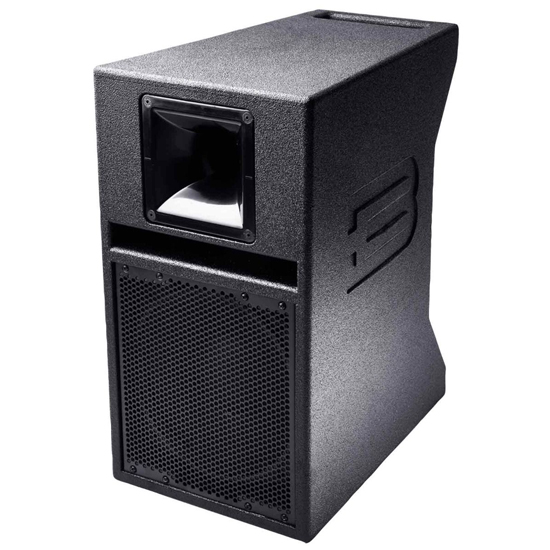

BASSBOSS SV9-MK3 Single 9" Powered Top Active Loudspeaker

The SV9-MK3 is a studio-reference quality monitor that can venture outside the studio thanks to a rugged finish, handles, grilles and a substantial amount of power. The result is a very compact and portable system for those who demand premium quality and impressive output without large sized, heavy and obtrusive cabinets. The compact, high fidelity and high output SV9-MK3 continues the BASSBOSS tradition of delivering remarkable bass performance and outstanding sound quality. In terms of output SPL and frequency response, the SV9-MK3 compares to much larger loudspeakers. Such performance from a much smaller enclosure is made possible by making decidedly different design and component choices than competitors. The Birch plywood enclosure is strong and solid while remaining easily portable. The 9" woofer features a large voice coil, providing high power-handling, and a rubber surround for extended low-frequency response. The port has a large area to keep air velocity low, and its exit is clear of the grille to ensure minimal air-flow noise. The low and midrange frequencies are delivered by a custom developed, carbon-fiber cone, 9" Neodymium LF driver. The 2.5" voice-coil offers high power handling and provides large displacement for increased LF output. The ultra-light carbon-fiber cone provides high sensitivity, with its rigidity contributing detailed resolution.

The high frequencies are delivered by a 1.4" voice-coil polyester diaphragm compression driver through a 1" throat horn with a 90 x 60 degree coverage pattern. The polyester diaphragm provides smooth response without the ringing and resulting harshness that can characterize metal diaphragms. The horn is deliberately placed clear of the grille and flush with the front of the cabinet in order to avoid reflections that would tend to blur imaging or otherwise interfere with smooth high-frequency response. The amplifier offers abundant headroom. The proprietary BASSBOSS processing ensures exceptional sound quality and reliability. The cabinet construction, design, and premium components all contribute to the rich, smooth, sound. The SV9-MK3 is suitable for use as a studio monitor thanks to its flat frequency response and premium quality, high-fidelity electronics. Its ultra-low noise CODECS, 96kHz sampling rate processor and high-resolution amplification are on par with the finest studio monitors in the industry. What sets it apart from most compact monitors is the power it provides. The amplifier power, along with the processing power, allow it to be used at higher levels than you would dare with an ordinary studio monitor. Now you can take your studio-quality sound with you when you leave the studio. The amplifier features a Class D SMPS with PFC, providing two channels, 900W LF and 300W HF. Eight on-board presets allow for a variety of configurations at the touch of a button, and LAN connectivity allows access to virtually unlimited preset combinations. On-board presets provide a variety of high-pass filters to suit full-range operation through a variety of settings that maximize SPL when used with a subwoofer. With an enclosure that is just 18" x 10" x 15" and a mere 27. pounds, smaller events can be covered with ease. The Birch wood cabinet features integrated handles, a 35mm steel pole socket, and is finished in durable, high-pressure polyurea coating. BASSBOSS loudspeakers are protected for safe, high-power operation. Optimized cabinet design, premium quality drivers, power-matched amplification and comprehensive processing ensure that no matter the demand, they keep their cool, keep their character and keep on working.

Features:

• Studio monitor sound quality, pro audio output. This baby makes your job easy.
• Everyone, everywhere, should have access to studio-monitor sound quality
• Everyone, everywhere wants to turn their monitors up to show off what they've got.
• BASSBOSS had a woofer custom-made with a carbon-fiber cone, rubber surround and a big voice coil.
• BASSBOSS designed a special, rock-solid wooden cabinet around it.
• BASSBOSS put top-of-the-line processing and amplification in it and tuned it for reference-grade response.
• It's either a reference monitor you can take on the road or an ultra-compact production speaker that you can use as a reference monitor.
• Either way, it's a pleasure to listen to, hour after hour, and a pleasure to carry when you have to move the music.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: 2-way active, Single 9" Self Powered, Vented, Direct-radiating Full-range
• Frequency Response (±3 dB): 50 - 19,000Hz
• Maximum Sustained Output: 118dB
• Max SPL (Peak)*: 121 dB
• Nominal Dispersion (H° x V°): 90 x 60 (Rotatable)
• Amplification: 1200 Watts Class D
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 1.4 Amps (Nominal)
• Current Draw 240V: 0.7 Amp (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: 2-way full-range/mid-high. Direct radiating vented LF section, horn-loaded HF section
• Transducer Low Frequency: 1 x 9 in. diameter (220mm) neodymium motor woofer with 2.5 in. (64mm) copper winding voice coil and carbon-fiber cone
• Transducer High Frequency: 1.5 in. (38mm) diaphragm compression driver on 1 in. (25mm) throat 90 x 60 degree constant directivity horn
• Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 18in. (45.7cm) x 10 in. (25.4cm) front, 7 in. (18cm) rear, x 15 in. (38cm)
• Net Weight: 26 lbs
• Shipping Weight: 31 lbs
• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
• Optional Covers: Heavy-duty padded nylon transport cover
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS SV9-MK3 Single 9" Powered Top Active Loudspeaker
• (1) 15' (5m) Power Cable
• (1) Manual
• (1) Warranty Card
