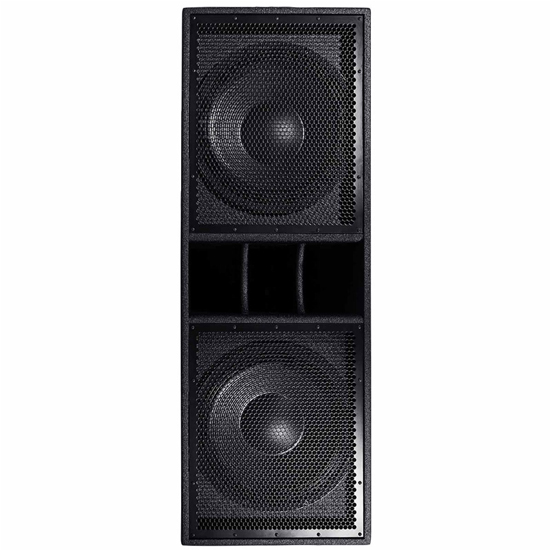

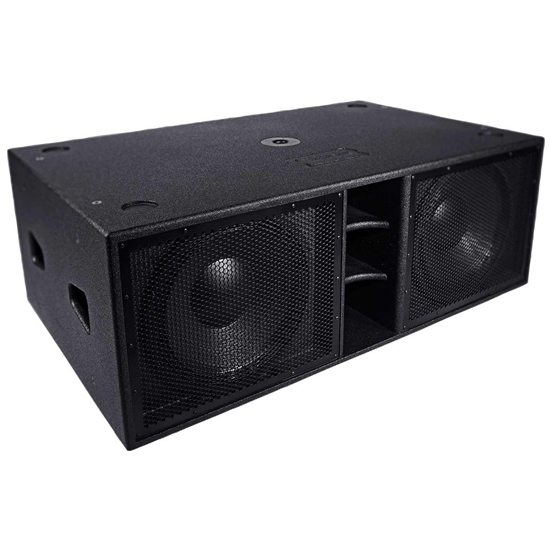

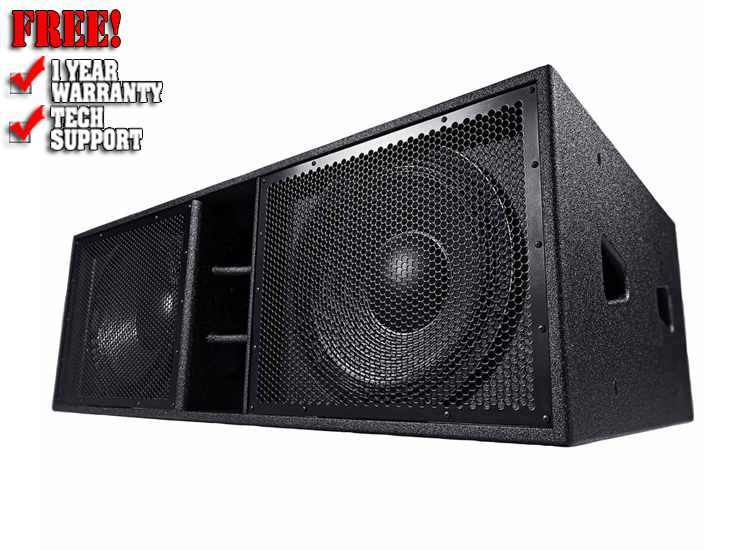

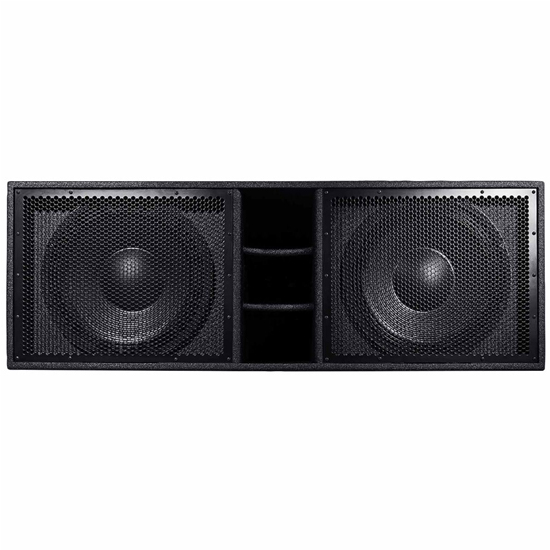

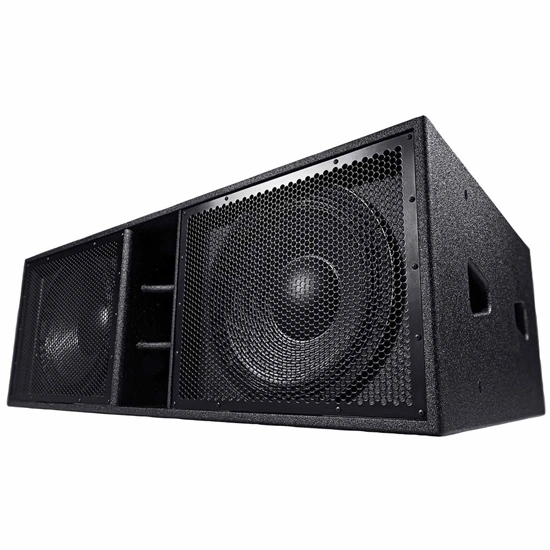

BASSBOSS SSP215-MK3 Dual 15" Powered Active Subwoofer

The SSP215-MK3 combines sensitivity, depth, power handling and fidelity. It offers amazing versatility and practicality for those who need a lot of low end for a wide variety of applications, particularly when space is limited. It delivers output comparable to a double-18" subwoofer from narrow spaces where double-18" subwoofers wouldn't fit. The SSP215-MK3 is equipped with extremely rugged, very high power handling, long excursion drivers in a carefully optimized cabinet that provides sufficient volume and port area to allow its 15" woofers to deliver as much depth as possible. It provides consistent output with minimal thermal compression thanks to the several effective but transparent protection systems that are part of the integrated signal processing. The multiple protection systems work independently to prevent over-excursion, thermal overload of the voice coils, and minimize long-term thermal compression. Since they work independently, reacting to different stimuli, their effect on the transient response and peak output of the loudspeaker is almost imperceptible.

The SSP215-MK3 achieves extremely flat frequency response, measuring +-1dB from 35Hz to 100Hz. No equalization is utilized to achieve this response. Unlike designs that require equalization to achieve their specified response, the SSP215-MK3's response is part of the cabinet design, so that the sensitivity of the speaker remains consistent through its operating range. This allows it to achieve higher SPL at lower frequencies using less power than systems that require bass-boost EQ to achieve their stated response. This design philosophy is how BASSBOSS subs can deliver more SPL at lower frequencies without needing more power. Versatility is one of the SSP215-MK3s greatest strengths. The performance of the SSP215 can be compared to almost any double-18" sub on the market but will fit where they don't. Taking up 50% less space than the SSP218, and delivering almost the same sound levels over very nearly the same frequency range, the SSP215 allows big sound to be hidden in small spaces. If you need a serious sub to fit under a low stage, this is it. If you need to fly a sub under a low ceiling, this is it. If you need a sub to go under a seating or banquette platform, this is it. If you need to hide a sub between roof support beams or Z-bar, this is it. If you need a sub to stand unobtrusively in a corner, this is it.

Features:

• SSP215-MK3 Dual 15" Powered Sub.
• Groundbreaking bass performance reaching frequencies lower than many double 18" cabinets.
• The same big voice coils and big power amps used in the SSP218s, along with large internal volume and deep tuning, providing massive output at and above 35Hz.
• Allows the SSP215-MK3 to comfortably take the place of double 18" boxes without giving up output or low frequency extension.
• A double-15" subwoofer cabinet made to go head-to-head with double 18" subs.
• Low-profile option has 5000W of amplification driving the woofers and a premium-grade DSP providing control and alignment.
• If 215 wasn't in the name, you'd never know it didn't have bigger drivers.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: Double 15" Self-Powered Vented Direct-Radiating Subwoofer
• Frequency Response (±3 dB): 35 - 100Hz
• Maximum Sustained Output: 133dB
• Max SPL (Peak)*: 136dB
• Nominal Dispersion (H° x V°): 360 x 360 - Cardioid Mode Available with Multiple Boxes
• Amplification: 5000 Watts Class D (2 x 2500W)
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP - IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 9 Amps (Nominal)
• Current Draw 240V: 4.5 Amps (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: Direct radiating, vented enclosure, optimally tuned for low frequency response with high sensitivity and high power handling
• Transducer Low Frequency: 2 x 15 in. diameter (380mm) neodymium motor woofers with 4 in. (100mm) voice coils
• Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 4 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 4 interlocking foot pockets. 16 X M10 threaded flypoints
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 17.25 in. x 48 in. x 29.5 in. (18.5 in. high with feet)
• Net Weight: 180 lbs
• Shipping Weight: 220 lbs
• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
• Optional Covers: Heavy-duty padded nylon transport covers for 1 cabinet
• Optional Dollies: Birch plywood flat cart with 4 heavy-duty locking casters. 4 pockets to accept the cabinet feet. 7 handles. Transports up to 5 cabinets.
• Optional Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS SSP215-MK3 Dual 15" Powered Active Subwoofer
• (1) 15' (5m) Power Cable
• (1) Manual
• (1) Warranty Card
