BASSBOSS DV12-MK3 Single 12" Powered Top Active Loudspeaker

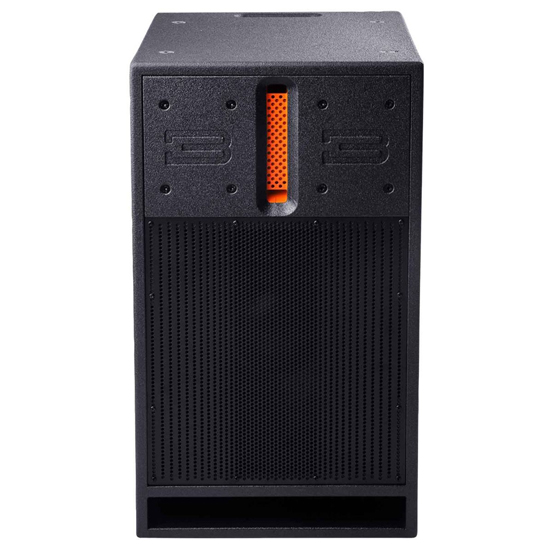

The DV12-MK3 uses a line-array derived 1.4" throat isophasic wave guide instead of a conventional horn. Coupled to the wave-guide is a 3" diaphragm, Neodymium motor compression driver. This combination provides effortlessly high SPL over very wide and consistent horizontal coverage of 120° with a tight vertical pattern of 20°. This extends high frequency intelligibility farther than a conventional horn and allows for two arrayed cabinets to provide coherent, line-array style performance. The lower frequencies are produced by a 12" woofer that features a Neodymium magnet for light weight and high efficiency, a 4" voice coil for high power handling, and a symmetrical, long-excursion suspension for accurate and extended bass response. So much bass response that it could easily serve as a subwoofer driver. Power is supplied by an amplifier that can deliver output peaks of 163V, to provide amazing dynamic resolution and impact. The fully integrated and comprehensive digital processing ensures smooth response and reliable operation thanks to meticulous filter alignments and five- stage limiters that protect the drivers from excessive peaks, and also from thermal overload, by monitoring real power output over time. The amplifier features a large heat sink and 2 temperature-controlled fans to ensure consistent operation under even the most extreme conditions. The DV12-MK3 is the ultimate in plug and play, with universal voltage compatibility and no need for any outboard gear other than a sound source. The processing features presets that allow it to run in multiple configurations. The full-range mode, Preset 1, provides response down to 40Hz (-3dB). Each successive preset filters the lows out at higher frequencies, allowing the DV12-MK3 to be perfectly integrated with various types and sizes of subwoofers. Each preset has a specific high-pass filter frequency and alignment filters that ensure it's always phase coherent with any BASSBOSS sub. As low-frequency demand is reduced, higher sound levels can be achieved. In the higher presets, this allows each DV12 to provide enough mid-high power for multiple subwoofers. The DV12-MK3 can be combined with any BASSBOSS subwoofer because all the presets are programmed to align with all the subs. Each preset offers advantages that suit certain applications and preferences. No matter which preset you choose, your BASSBOSS subs and tops will always play in harmony.

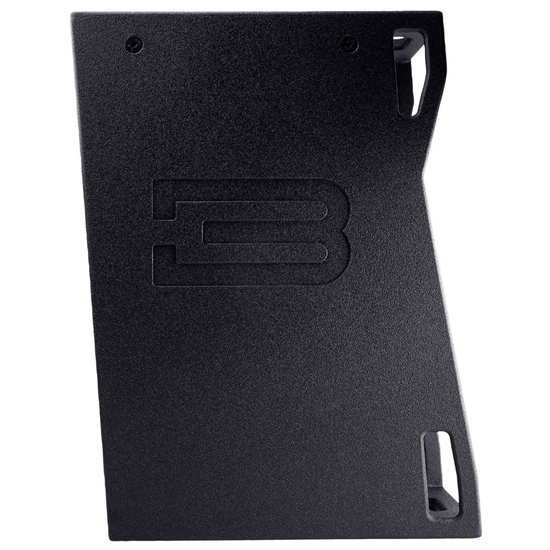

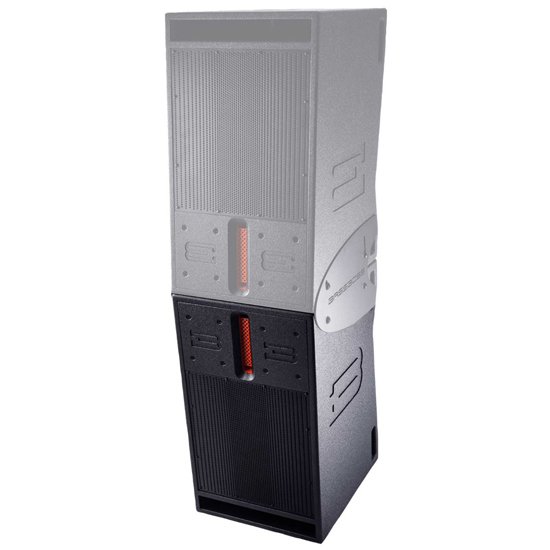

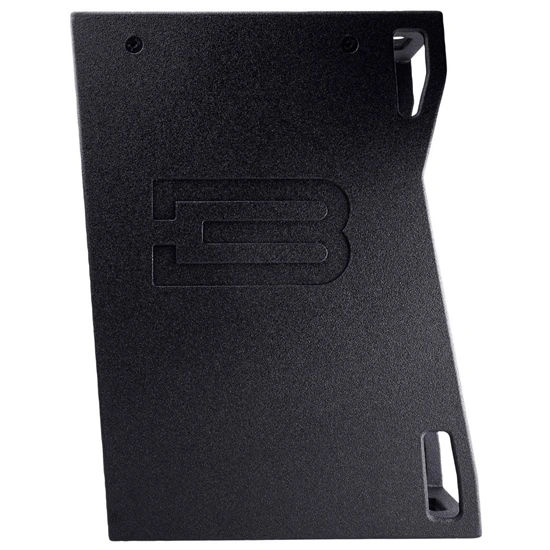

The cabinet is made from 15mm Birch and features bracing for additional rigidity. The design incorporates a 4-degree down-angle that ensures the even distribution of high-frequency energy from the front to the back of a venue when the DV12-MK3 is placed at the appropriate height on a tripod or support pole. Additional features include a 35mm (1-3/8") steel pole socket, eight fly points and six handles. The amplifier is recessed from the back of the cabinet to protect it in transit. A perforated steel grille protects the woofer, and its progressive perforation pattern serves to broaden midrange dispersion. The highfrequency lens and port are left clear of the grille to minimize reflections and air flow noise that could compromise sound quality. Should you ever need more sound than can be produced by one DV12-MK3 per side, their invertible array feature allows the perfect summing of two speakers, which provides a big increase in output and projection without compromising the crystal clarity. This is an additional benefit of the line-array waveguides. When two DV12-MK3s are vertically stacked with the HF lenses adjacent, (top cabinet inverted) the highfrequency sections of the two boxes sum perfectly, as they would in a line-array, while the low-frequency sections sum in a column for improved low-frequency directivity and greatly increased output. Compared to conventionally arrayed boxes, this results in 3dB more SPL and much smoother response in the high-frequency ranges.

The MK3 features an all-new DSP. The comprehensive suite of processing includes high-pass and lowpass filters as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible, including thermal, excursion and clipping. The five levels of protection actively prevent overheating of the voice coil, minimize long-term thermal compression and limit excursion. Because they operate in 5 different modes, the limiters are sophisticated enough to have a largely unnoticable effect on the transient response and allow the subwoofer to deliver peak output safely. The new DSP features an Ethernet interface. This can be used to control the cabinets from a computer or to load software or firmware updates. The ethernet connectivity in conjunction with the DSP board allows signal to be sent via Milan AVB. Firmware updates will provide access to this feature. Within the software, multiple cabinets can be grouped together, allowing them to respond to commands simultaneously. This permits the levels of multiple loudspeakers to be adjusted together and yet independently from the levels of other groups of loudspeakers. In addition to individual and grouped level controls, presets can be loaded and signal levels and temperatures can be monitored. Each cabinet includes a two-port switch so multiple cabinets can be chained on the same data cable. The MK3 DSP features storage capacity of up to 100 presets, eight of which can be accessed at the touch of a button with no need for a connected computer. The eight directly accessible presets are compatible with all the presets in the MK3 Top Boxes and are also compatible with previous generation tops and subs.

Features:

• DV12-MK3 Single 12" Powered Top.
• The ultimate portable powerhouse on a pole, this is the Mobile Pro's choice.
• You are a mobile DJ or you have a production company. Your reputation is valuable.
• Your time is valuable. You want a speaker that's flawless for every gig you do.
• If you need to cover the largest numbers of people with the smallest number of boxes, you're looking at the right loudspeaker.
• Because almost every gig you do is in a similar sort of space.
• Because at almost every gig you do, your speakers are on stands, poles, tripods or truss totems.
• Because the DV12 is the only speaker in the world that's been designed specifically and exclusively for exactly what you do.
• Every feature of the DV12 serves to deliver the ideal performance in its intended role: On a pole. Wide horizontal for wide rooms. Tight vertical for intelligibility at distance.
• Plenty of power so you can rock the party and plug-and-play processing for worry-free operation at any level.
• A very powerful amplifier feeds the bulk of its power into a beast of a 4" voice coil 12" woofer The rest goes to a 3" voice coil compression driver.
• The signals are controlled by a high-end DSP to ensure everything comes out loud, clear, smooth and safe.
• The cabinet and horn control the coverage. It works. You play.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: 2-Way Active Single 12" Self Powered, Vented, Direct-radiating Full-range
• Frequency Response (±3 dB): 45 - 19,000Hz
• Maximum Sustained Output: 128dB
• Max SPL (Peak)*: 134dB
• Nominal Dispersion (H° x V°): 120 x 20
• Amplification: 3200 Watts Class D
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP - IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 4.6 Amps (Nominal)
• Current Draw 240V: 2.3 Amps (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: Self-powered, bi-amplified, 2-way full-range. Direct radiating vented LF section, wave-guide-loaded HF section
• Transducer Low Frequency: 1 x 12" diameter (300mm) neodymium motor woofer with 4" (100mm) voice coil
• Transducer High Frequency: 1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4" (35mm) exit mounted to isophasic wave guide
• Cabinet Construction: CNC machined 15mm Birch plywood with internal bracing and dado joinery. 8 M10 fly points. 1 x 35mm steel pole socket
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 24.5 in. x 14.5 in. x 19 in.
• Net Weight: 65 lbs
• Shipping Weight: 74 lbs
• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
• Optional Covers: Heavy-duty padded nylon transport cover
• Optional Hardware: Stacking Bracket: mounts second cabinet inverted for near-perfect summed response and line-array style performance. Provides splay-angle adjustment from 0 to 8 degrees. Flying Bracket: Two DV12s can be arrayed together and flown from the DV12 array flying bracket. M10 Shoulder Eye Bolts, M10 Side-Pull anchors
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS DV12-MK3 Single 12" Powered Top Active Loudspeaker
• (1) 15' (5m) Power Cable
• (1) Manual
• (1) Warranty Card
