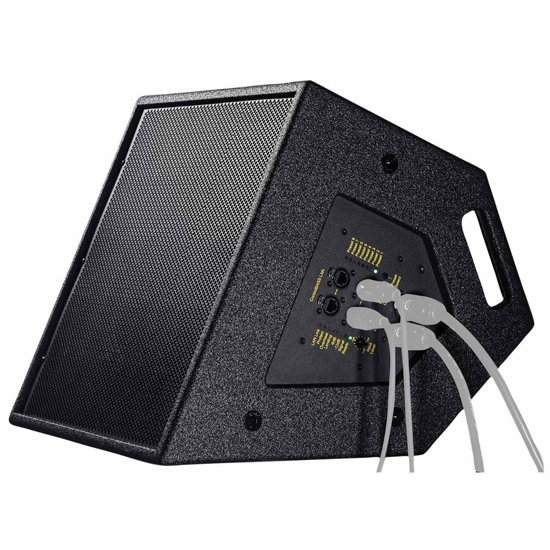

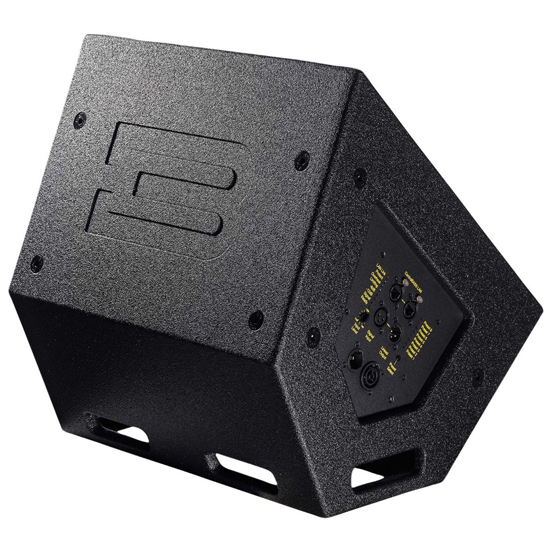

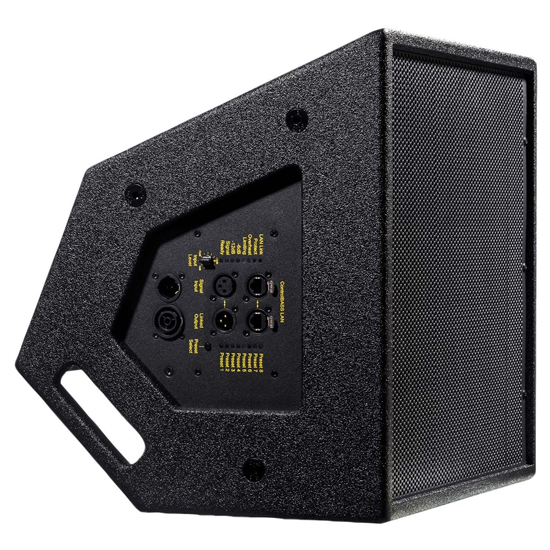

BASSBOSS CCM12-MK3 Compact Active 12" Co-Axial 2-Way Monitor Wedge

The CCM-MK3 is a super compact active lightweight 12" coaxial monitor that yields a Stunning Output-To-Size Ratio, Consistent Off-Axis Response, Superior Rejection of Feedback, and a host of deployment angles. The CCM12-MK3 features a 12" woofer and a co-axial 1.4" exit compression driver that flows through the center of the woofer, making it a true point-source cabinet and it is literally packed with the best components and technology available, yielding a sound much bigger than it appears, while maintaining crystal clarity even at the upper limits of its very remarkable capabilities. The all new MK3 series deliverers a suite of updates to the BASSBOSS line, improving clarity, performance, functionality, and safety via the new amplifiers, new DSP, custom control software, waterproof connectors, and more. The updated amplifiers + DSP feature much more powerful 96 kHz processors with pristine sound quality and eight touch-of-a-button on board presets. The new state-of-the-art asymmetrical Class D amplifier provides a true 1200 Watts of RMS power and features enhanced power allocation between the HF and LF drivers.

The fully integrated and comprehensive digital processing ensures smooth response and reliable operation thanks to meticulous filter alignments and multi-stage limiters that protect the drivers from excessive peaks & thermal overload by monitoring real power output over time. New "Control BASSBOSS" software provides additional computer-accessible presets, networked remote control, and future proofing remote DSP update capabilities as new BASSBOSS programming is developed and released. Each unit features dual ethernet ports with a built-in network switch for computer connectivity and cascading networking ability. IP65 waterproof connectors have been added to provide peace-of-mind in unpredictable environments, and the MK3 line offers 90-250VAC global power compatibility for use all over the world.

Features:

• Compact, Co-Axial, Bi-Amped, 12", 2-Way, Multi-Angle Monitor Wedge.
• Frequency Response (±3 dB): 60Hz - 19kHz (Full Range.)
• Maximum Sustained Output: 124dB SPL, 1m, 2pi, half-space.
• Max SPL (Peak): 127 dB.
• Nominal Dispersion (°H x °V): 80 x 80 (Symmetrical Conical.)
• Monitor Upward Angles.
• 0° (Pole Socket/Front Fill.)
• 22.5° (Table/Sub.)
• 45° (Seated Performer.)
• 67.5° (Standing Performer.)
• 12 in co-axial driver with a 3" diaphragm compression driver on 1.4 in throat concentrically mounted wave guide.
• 1200W 2-channel Class D amplifier with signature DSP .
• Coverage: 80 x 80 (Symmetrical Conical.)
• Dims: 13.5 in. x 16.5 in. x 15.5 in.
• Weight: 38 lbs.
• Finish: Textured Black.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Amplifier: Class D, 1200 W, 2 Channels 850+350
• DSP: Integrated comprehensive DSP provides all necessary high-pass and low pass filters, equalization, phase alignment and limiting

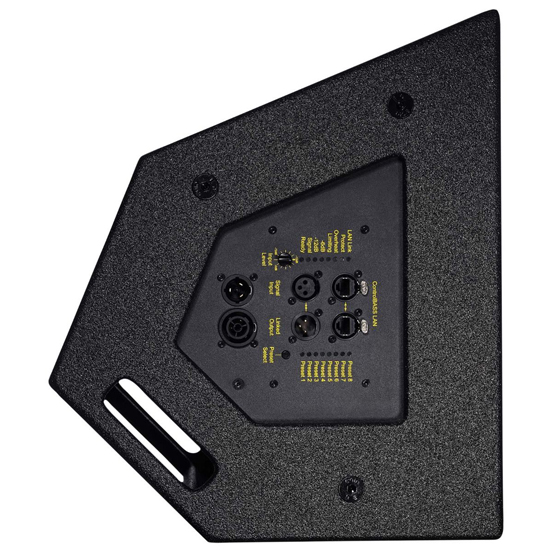

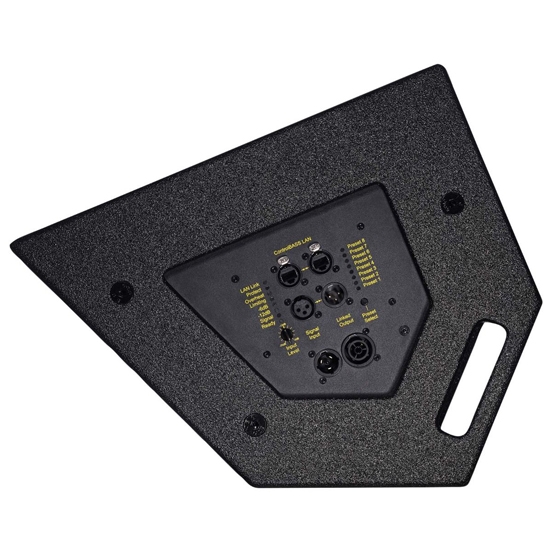

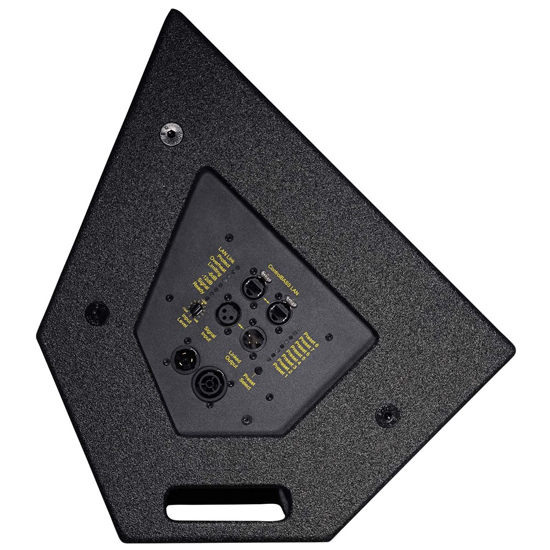

• Electrical Connectors, Amplifier: Neutrik powerCON True 1 TOP with Pass-Through
• Electrical Connector, Mains: NEMA 5-15 (Edison) standard 3-pin grounded plug
• Voltage Operating Range: 100 - 240V Auto-sensing, auto switching
• Current Draw, Nominal: 1.4A average with music
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M pass-through only
• Enclosure Type: 2-way full-range/mid-high. Direct radiating sealed LF section, CoAxial HF section
• Transducer, LF: 1 x 12 in. diameter (300 mm) neodymium motor woofers with 3 in. (76mm) copper winding voice coil.
• Transducer, HF: 3 in. (76mm) diaphragm compression driver on 1.4 in. throat CoAxially mounted 80-degree conical horn.

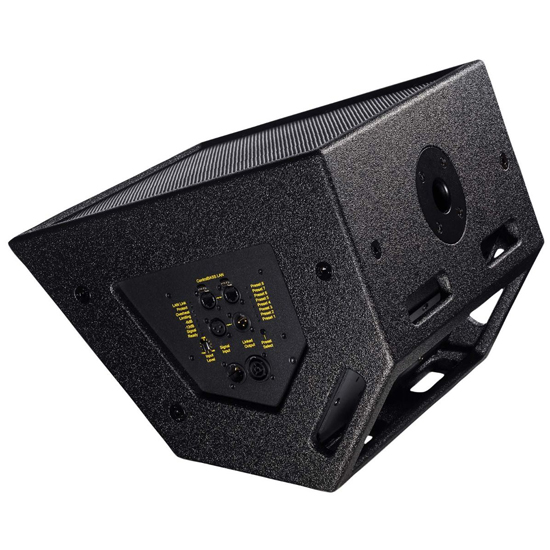

• Cabinet Construction: 15 mm Birch plywood. Equipped with 6 handles. Includes a 35mm steel pole socket.
• Dimensions (HxWxD): 13.5 in. x 16.5 in. x 15.5 in.
• Net Weight: 38 lbs (est)
• Shipping Weight: 43 lbs (est)
• Exterior Finish: Black Weatherproof bonded high-pressure polyurea
• Grille: Perforated, Powder-coated Steel with Hydrophobic Backing
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS CCM12-MK3 Compact Active 12" Co-Axial 2-Way Monitor Wedge
