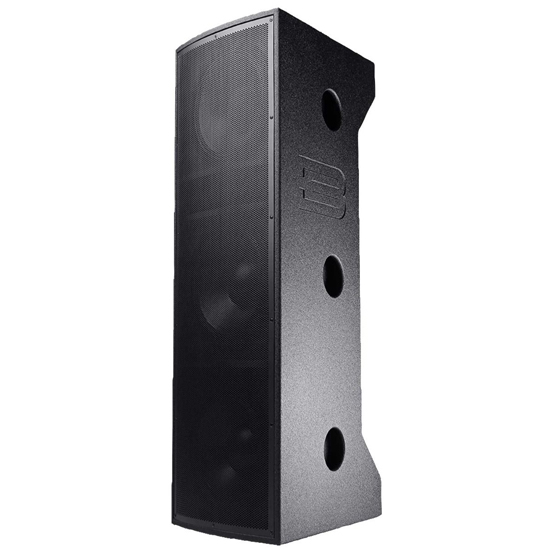

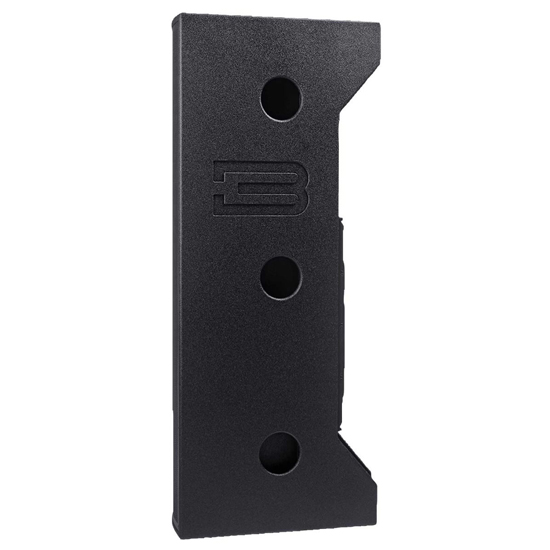

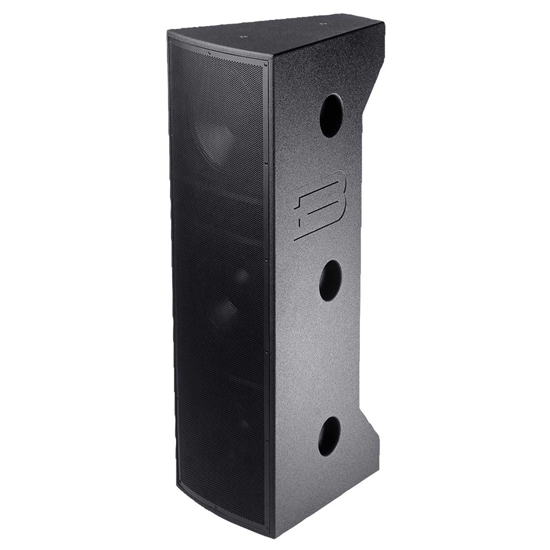

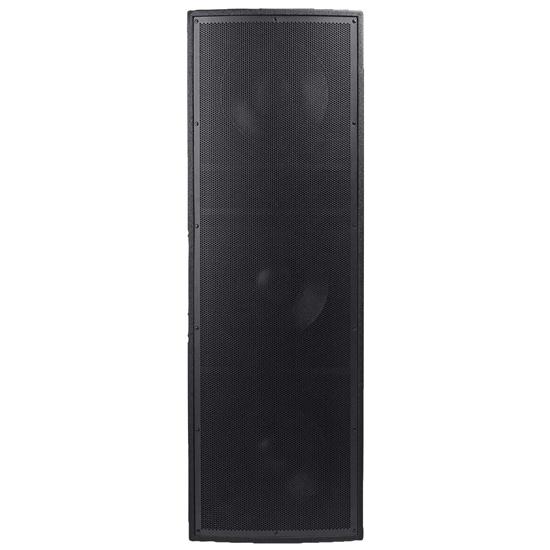

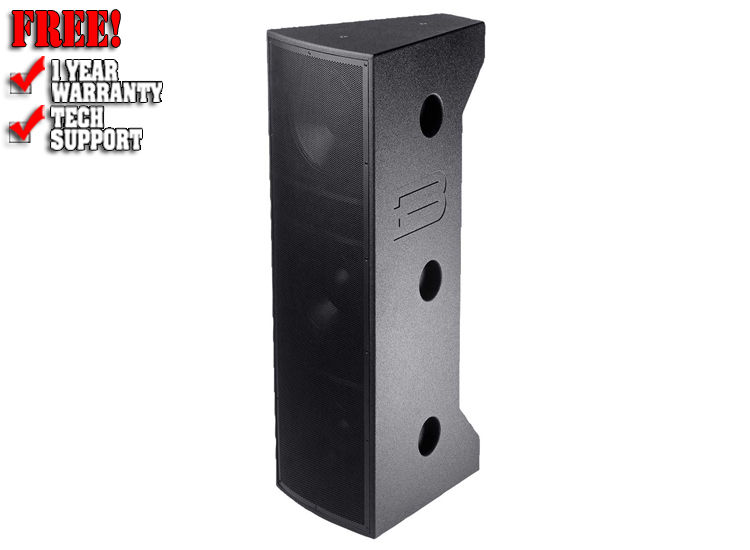

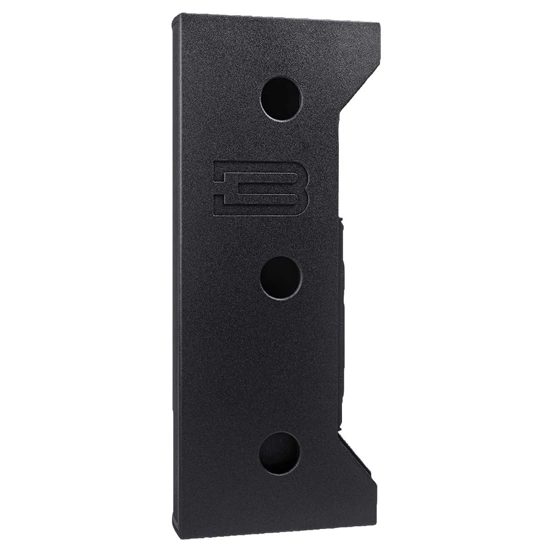

BASSBOSS AT312-MK3 Triple 12" Powered Top Active Loudspeaker

The AT312-MK3 Top is a co-axial point-source cabinet for medium and short distance coverage where a small footprint and very high fidelity are required. It's compact, simple to use, easy to set up, attractive, and capable of very high output with superbly uncolored sound and natural musical character. The AT312-MK3 driver complement incorporates dual 12" woofers in a vented enclosure for low frequencies, a 12" driver in a sealed enclosure providing midrange, and, at the center of the midrange cone, a co-axially mounted 1.4" exit compression driver provides the high frequencies. Coverage is 80 degrees conical. Dual 12" low frequency drivers were chosen to minimize cabinet frontal area while delivering the best possible accelleration and impact in their operating range. Thanks to the narrow frontal area, the AT312-MK3 can provide tremendous output and fidelity while remaining relatively unobtrusive. The 12" co-axial mid-high section allows the loudspeaker to function as a point-source, with the two additional low-frequency drivers remaining within ½ wavelength in their operating band. This arrangement delivers more consistent off-axis performance than conventional loudspeakers. The consistency of coverage and the uniformity of the response throughout the coverage area make the AT312-MK3 highly resistant to feedback. The coverage consistency also enhances the loudspeaker's versatility, allowing it to be mounted horizontally or vertically with no compromise in coverage or performance. This allows the AT312-MK3 to be flown horizontally in venues with low ceilings, or on truss that wouldn't provide enough height for vertically oriented cabinets or line-arrays. The point-source coherence of the AT312-MK3 provides outstanding intelligibility. A single AT312-MK3 can be used in place of an array of less coherent speakers and provide superior intelligibility. When the AT312-MK3 is combined with BASSBOSS subwoofers, like the SSP218, SSP215 or ZV28, the result is a 4-way active loudspeaker system with virtually unparalleled resolution and dynamic power for its size.

The simplicity and ease of using these components together will delight anyone who is regularly moving gear. Transportation and set-up of an AT312-MK3/SSP218-MK3 or SSP215-MK3 Subwoofer combination is made easy because the subwoofers serve as a carrier for the tops. The 48" tall AT312 cabinet elevates the mid and high frequency radiators to a minimum of 7'6" on center when stacked on the subwoofers. This very effective, practical, high fidelity, active loudspeaker system can be made ready to play in a few short minutes. In most venues it's possible to roll the system into place, lock the casters, tilt up the tops, plug in the power and signal and have an extremely substantial system set up by just one person. The AT312-MK3 features 4000W of amplification. With 2400W of of its power available for the woofers, 800W available to the midrange and 800W available to the tweeter, power is plentiful. The amp's high peak-output voltage provides for very intense, high SPL hits. An auto-sensing, globally compatible power supply that can run on input voltages anywhere between 90 and 250 Volts ensure it can work wherever you take it. Full output power is available on anything over 110V. The amplifier is passively cooled via its external heat-sink and by woofergenerated air-flow through the port. When necessary, two blower-fans will engage to provide additional forced-air cooling capacity in more extreme conditions. Amplifier power is converted into the much more desirable acoustical power by two substantial, neodymium motor, 12-inch woofers with 4-inch (100mm) voice coils, a 12" neodymium motor midrange driver with a 3.5" (88mm) voice coil and, on the same neodymium motor, a compression driver with a 3" (76mm) voice coil that exits through the center of the midrange, which features a 1.4" throat machined aluminum conical wave-guide as its pole-piece. Neodymium magnets are lighter, and their higher intensity provides higher efficiency, so the result is a lighter and louder cabinet than those with ferrite drivers.

Features:

• AT312-MK3 Triple 12" Powered Top
• Reference-monitor sound for high-end productions and destination venues.
• You think "compromise" is a dirty word. You listen. You hear.
• You have very high standards.
• Would you want to take the best of hi-fi sound quality, combine that with studio reference monitor accuracy and add the power to cover a dance floor or a small festival stage?
• By building a speaker that's as close as possible to the theoretical ideal of a single, infinitely small point, the AT312 offers resoltion and imaging that will fool your senses.
• So real you'll look behind you.
• So detailed you'll cry.
• So powerful you'll need to share.
• This is a 3-way Active co-axial point-source loudspeaker with 4000W of amplification.
• Two 12" neodymium woofers with 4" voice coils handle the lows.
• The mids and highs are provided by a neodymium co-axial 12" woofer and tweeter combination.
• Comprehensive processing ensures perfect alignment.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: 3-Way Triple 12" Self-Powered Direct Radiating Co-axial Point Source Full Range. Vented Low-Frequency Section, Sealed Mid-Frequency Section with co-axially mounted High-Frequency Section
• Frequency Response (±3 dB): 60 - 19,000Hz
• Maximum Sustained Output: 133dB
• Max SPL (Peak)*: 139dB
• Nominal Dispersion (H° x V°): 80 x 80 (Conical)
• Amplification: 4000 Watts Class D
• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
• Electrical Connector Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
• Current Draw 120V: 5 Amps (Nominal)
• Current Draw 240V: 2.5 Amps (Nominal)
• Signal Input Connector: XLR-F
• Signal Output Connector: XLR-M (direct pass-through only)
• Enclosure Type: 3-way mid-high. Direct radiating, vented enclosure LF section, acoustic suspension MF section with co-axially mounted, horn-loaded HF section
• Transducer Low Frequency: 2 x 12 in. diameter (300mm) neodymium motor woofer with 4 in. (100mm) voice coil, waterproof cone
• Transducer Mid Frequency: 12 in. diameter (300mm) neodymium motor midrange driver with 3.5" (88mm) voice coil
• Transducer High Frequency: 1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4" (35mm) exit through 80 degree conical wave guide machined from aluminum pole piece in the center of the midrange driver
• Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 4 M10 fly-points. 6 integrated handles. 1 x 35mm steel pole socket
• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
• Grille: Perforated, powder-coated steel
• Dimensions (HxWxD): 48 in. x 16 in. (f) x 20 in.
• Net Weight: 120 lbs
• Shipping Weight: 135 lbs
• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card
• Optional Covers: Heavy-duty padded nylon transport cover
• Optional Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors
• True Specifications: BASSBOSS' forward-thinking approach means that they never rest on their laurels. As they continue to innovate and refine their technology, BASSBOSS' specifications will evolve. They're committed to constantly pushing the boundaries and raising the bar.

What's in the Box

• (1) BASSBOSS AT312-MK3 Triple 12" Powered Top Active Loudspeaker
• (1) 15' (5m) Power Cable
• (1) Manual
• (1) Warranty Card
