American Audio ELS12A Value Pack

SPECIAL VALUE PACK INCLUDES:

2 x ELS12A SPEAKERS
2 x SPEAKER STANDS
2 x SPEAKER CABLES

The American Audio ELS 12A is a lightweight 12-inch, 2-way Active Speaker specifically designed for the DJ market. This speaker features a high efficiency design, low power consumption, and plenty of output power for smaller and mid-sized parties.

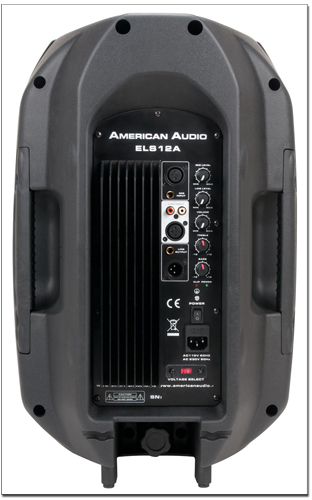

The ELS 12A has many useful features on the rear panel. It has built-in XLR & RCA Line inputs with volume, line level, treble and bass control; line output with XLR & TRS connections; plus built-in XLR & TRS microphone inputs with mic level control – all great features for dialing in your sound and for when you want to use it for a small PA speaker.

12-inch 2-way Powered Speaker
1-inch Compression Driver
Time Aligned Electronic Crossover
Flyable or Stand Mountable
Built-in XLR & ¼-inch TRS Microphone inputs with volume control
Line Level, Volume, Treble & Bass control on rear panel
XLR & RCA Line input
XLR & ¼-inch TRS through output
Active signal limiting system with Clip LED indicator on rear panel
Dimensions (LxWxH): 22” x 15” x 12” / 558.8 x 381 x 317.5mm
Weight: 26 lbs. / 12 kg.
Selectable Voltage: AC 115/60Hz or 230V/50Hz
Frequency Response: 70Hz - 18KHz
Crossover: Active
Nominal Dispersion: 90° x 50° (HXV)
Balanced: Line 20KO, Mic 3.6KO
Unbalanced: Line 10KO, Mic 1.8KO
Low Pass: 2nd order filter 2.7KHz @12 dB/octave
Low Cut: 2nd order filter 40Hz @12 dB/octave
S/N Ratio: Line 100dB,Mic 80dB
Channel Equalizer:
Bass: 100Hz ±15dB
Treble: 10KHz ±19dB
Specifications subject to change without notice.
