American Audio CPX12A

Description

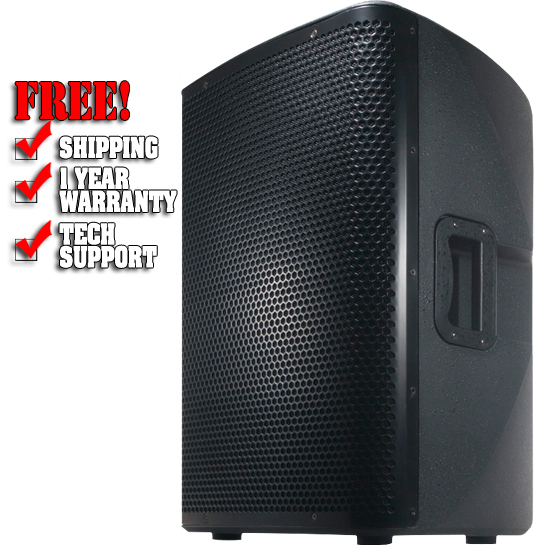

The powerful CPX Series of active speakers from American Audio was designed to take on the rigors of the road and sound great every time you plug them in. The CPX 12A is a 500W, 2-Way active speaker with a 12-inch woofer and a high efficiency Class D amplifier. It features a time aligned crossover, 5x M8 rigging points and is stand mountable. The front grill is made from an attractive heavy duty steel.

The CPX Series is perfect for mobile entertainers, rental houses and production companies. It's also great for installations where great affordable sound is required. Each model is designed to deliver great sound whether you are micing your band, using them as a side-fill or floor monitor, DJing your weekly gig, or installing them at your house of worship, club, lounge, or bar. The CPX series is great solution for updated or adding to existing installations.

Features:

2-way Speaker with High Efficiency Class D Amplifier
500W Built-in Bi-amplifier
Time Aligned Electronic Crossover
5 M8 Rigging points
Stand Mountable
Heavy Duty steel grill
Ergonomic handles
Power and Clip LED Indicators
XLR and RCA inputs
XLR and TRS throughputs
Clipping and Thermal Protection

Crossover:

Low Pass: 2nd order filter 2.7KHz
Low Cut: 2nd order filter 30Hz

Channel Equalizer:

Bass: 100Hz +/- 12dB
Treble: 10KHz +/- 12dB

Specifications:

S/N Ratio: Line 100dB, Mic 80dB
Frequency Response: 30 Hz – 18 kHz
Nominal Coverage: 90° x 60°
Low Frequency: 12" (312mm), 2.5" (65mm) Voice Coil
High Frequency: 34mm Voice Coil, 1"(25mm) Throat
Input Sensitivity: 0.5V
Output Sensitivity: 95dB(1m/1w)
Max. SPL: 116dB
Balanced Input Impedance: Line 20K?, Mic 3.6K?
Unbalanced Input Impedance: Line 10K?, Mic 1.8K?
Multi Voltage Switch: AC 115V/60Hz or 230V/50Hz
Dimensions (LxWxH): 15" x 14.25" x 23"/ 378 x 360 x 580mm
Weight: 48 lbs. / 21.4 kgs.
