Alto TS212S

Description

1100 WATTS OF CLASS D POWER INTEGRATED 2-CHANNEL MIXER WEDGE ANGLE EQUIPPED

For those performance situations where additional low-frequency output and punch are required, even beyond the already-impressive bass capability of the TS2 full-range speakers, the new TS2 powered subwoofers are the perfect solution

Pair TS212S with any full-range speaker system to extend the bass response and dramatically enhance the overall impact of the music being played.

Features

• 1250 watts of peak power output
• Custom engineered high-efficiency Class D amplifiers with passive cooling design - no fan means the speaker runs cleaner, quieter and has greater long-term reliability
• 12-inch high-excursion woofer

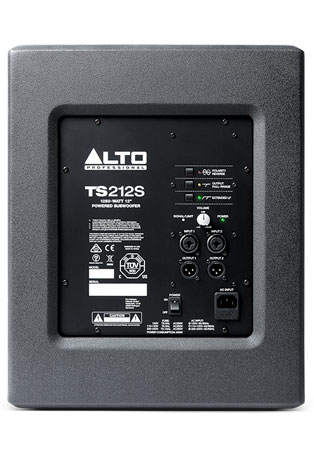

• (2) XLR+¼-inch combo inputs + (2) balanced XLR line outputs
• Polarity Reverse, Full-Range Output and Extended LF controls
• Electronic clip, thermal and transducer overdrive protection
• Rugged, internally-braced front-ported plywood cabinet
• Integrated 35mm speaker pole socket
• User Guide

Tech Information

• Output Power: 1250 W peak, 625 W continuous
• Transducer Low: 12" (305 mm) woofer, 3" (76 mm) voice coil
• Response: 42-100 Hz (-10 dB)
• Maximum SPL: 127 dB (@ 1 m)
• Connections: (2) XLR+1/4" (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input
• Input Level: Line +4 dBu (nominal)
• External Controls: Volume control, signal/clip limiter with LED, polarity-reverse switch,high-pass filter bypass switch with LED, extended low-frequencyswitch with LED, power switch with LED
• Electronic Protections: Electronic clip, thermal and transducer overdrive protection
• Enclosure: Internally braced plywood cabinet; 35 mm mounting pole socket ontop panel
• Power Connection: Standard IEC cable
• HzConsumption: 450 W
• Input Voltage: 110-120, 220-240 VAC; 50/60
• Fuse: T6.3AL AC250V (110-120 V) or T3.15AL AC250V (220-240 V)
• Dimensions (W x D x H): 18.0" x 17.75" x 20.0" / 456 x 451 x 508 mm
• Weight: 45 lbs. / 20 kg
