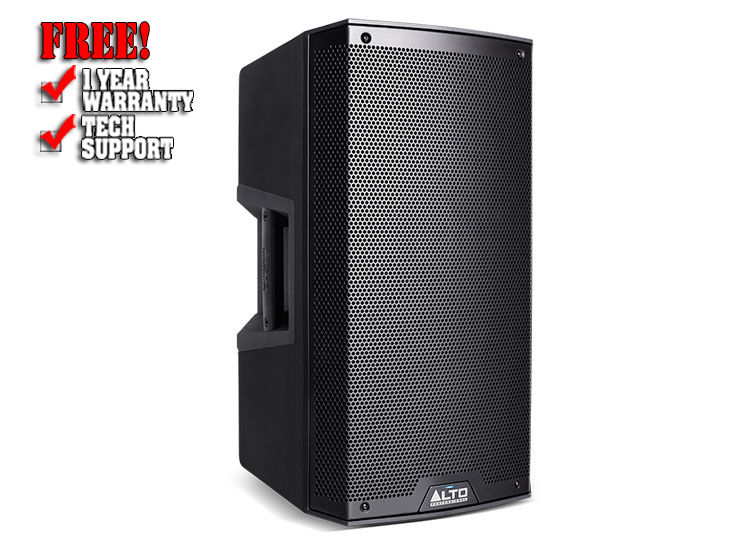

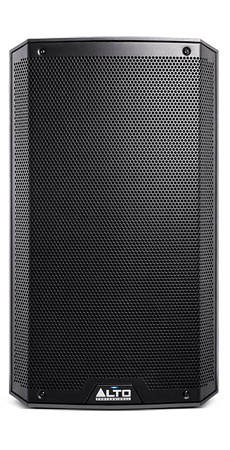

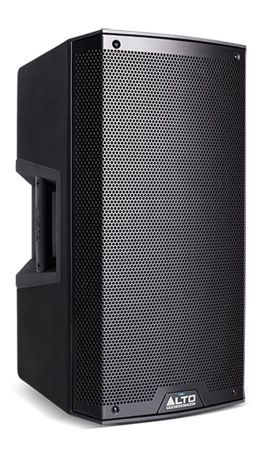

Alto TS212

Description

The range is comprised of three models, the TS210, TS212 and TS215. The amplifiers in all three are rated at 550 watts continuous, 1100 watts peak-a significant increase over the previous line. This new higher power capability ensures greater output for use in larger spaces, with increased clarity, since the amplifiers won't "run out of steam" and distort the way less powerful units will.

The all-new industrial design is more than just beautiful: The TS210 and TS215 have five integrated handles and the TS212 has two, making them easy to pick up in either H or V orientation. Each model also employs professional-grade M10 rigging/suspension points. The tough, durable cabinets have excellent acoustic properties, while their light weight makes them easy to transport.

Because of their cutting-edge, high-efficiency amplifiers, these speakers run at far lower temperatures than conventional amplifiers, even during extended periods of high output. The ground-up design effort for these speakers enabled us to incorporate advanced amplifiers with superior heat-dissipation characteristics, eliminating the need for costly, noisy cooling fans. The result is a powered speaker system that is cleaner, quieter and more reliable.

Higher performance, unsurpassed utility and flexible I/O options, easy transportability and unparalleled value-you'll find it all in the Alto Professional TS2 Series.

Features

• 550W continuous, 1100W peak Class D power
• 12-inch (304.8 mm) LF driver, 2.5-inch (63.5mm) high-temperature voice coil
• 1-inch (25.4 mm) neodymium HF driver with precision waveguide
• Bi-amplified design with precision active crossover and EQ
• Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs and independent level controls
• Custom engineered high-efficiency class D amplifiers with passive cooling design - No fan means the speaker runs cleaner, quieter and has greater long-term reliability
• Ground-Lift switch
• Contour switch for increased EQ control
• Electronic clip, thermal and transducer overdrive protection
• Compact, lightweight, trapezoidal cabinet design for easy transport and installation
• Angled rear panel for wedge monitor applications
• Stand and pole-mountable with integral M10 suspension points
• XLR Link output
• Designed and tuned in the USA
• User Guide

Tech Information

• Output Power: 1100 W peak (700 LF + 400 HF) 550 W continuous RMS (350 LF + 200 HF)
• Low Frequency: 12-inch (305 mm) woofer, 2-inch (51 mm) voice coil
• High Frequency: 1-inch (25 mm) neodymium driver with precision waveguide
• Crossover: 2 kHz
• Maximum SPL: 127 dB peak, 124 dB continuous (dB-SPL @ 1 m)
• Frequency Response: 53 Hz - 20 kHz (+/- 3 dB)
• Frequency Range: 46 Hz - 22 kHz (-10 dB)
• Coverage: 90° H x 60° V nominal

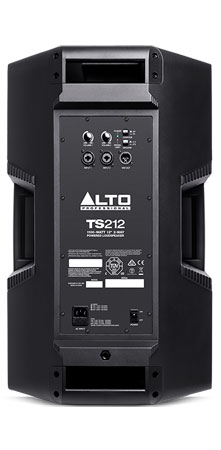

• Connectors: (2) XLR + ¼-inch combo jack mic/line inputs (1) XLR Mix Output
• Cabinet: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
• Controls: Volume, power on/off with LED, clip limiter with LED, ground lift
• Protection: Electronic clip, thermal and transducer overdrive protection
• Power: AC Input: 100-120/220-240 V, 50/60 HzFuse: 100-120 V T6.3AL AC250V / 220-240 V T3.15AL AC250V
• Dimensions (WxDxH): 14.04" x 13.80" x 23.28" / 357 x 351 x 591 mm
• Weight: 28.4 lbs.12.86 kg
